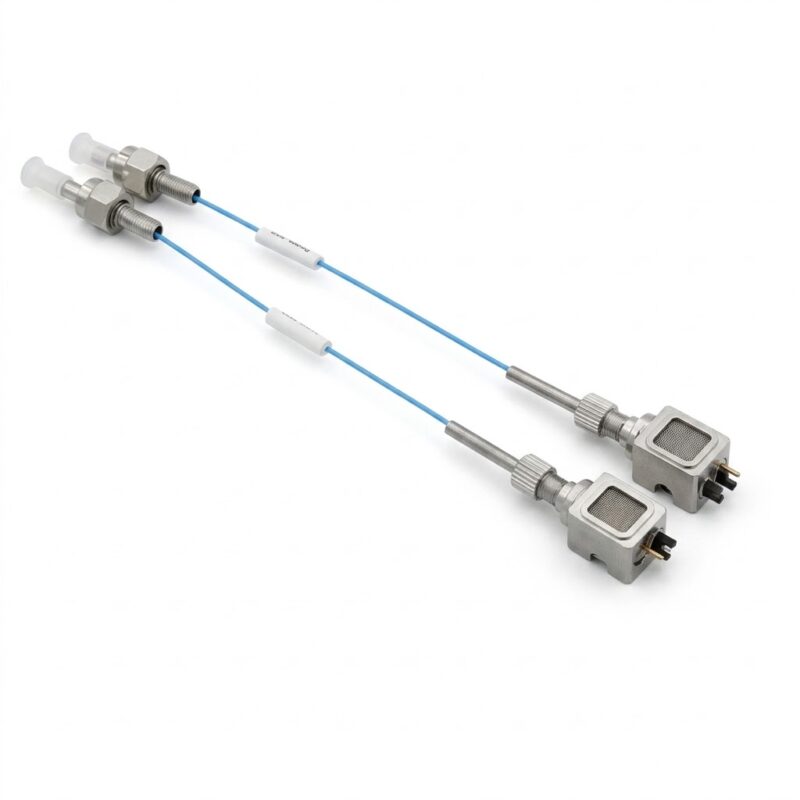

When your optical system needs precise light delivery in a compact package, a fiber coupled laser diode can simplify integration while maintaining controlled optical output. For medical equipment, optical research, and precision treatment systems, wavelength, power, fiber size, and coupling stability all affect system design. BU-LASER provides a 488nm 30mW fiber coupled laser diode module with a 3um single-mode fiber, designed for applications that require concentrated optical transmission. The module measures 30 × 10 × 10mm and supports customizable dimensions and fiber specifications, giving you more flexibility when integrating the laser into compact equipment.
488nm Fiber Coupled Laser Diode Specifications
The module combines a 488nm semiconductor laser source with a 3um single-mode fiber. With 30mW output power and 60%–70% coupling efficiency, it provides a defined optical configuration for systems requiring stable fiber-delivered laser energy.
Key Product Data
- Wavelength: 488nm
- Output Power: 30mW
- Fiber Core Diameter: 3um, customizable
- Numerical Aperture: NA 0.13
- Working Voltage: 6V
- Coupling Efficiency: 60%–70%
- Housing Size: 30 × 10 × 10mm, customizable
- Lens: Optical glass
- Lifespan: More than 10,000 hours
- OEM/ODM: Available
The compact housing helps you integrate the module into equipment where installation space is limited. Meanwhile, the single-mode fiber supports concentrated optical transmission for applications where controlled light delivery is important.
Why Use a Single-Mode Fiber Coupled Laser Module?
A conventional free-space laser source can require additional optical alignment and beam management components. By contrast, a fiber-coupled design transfers the laser output through the fiber, which can simplify optical routing inside your equipment.
For systems using a 3um single-mode fiber laser module, you can benefit from:
- Compact optical integration
- Defined fiber-based light transmission
- Customizable fiber core specifications
- Stable 488nm wavelength output
- Flexible housing dimensions
- Easier routing of optical energy inside compact equipment
This configuration is particularly relevant when your application requires the laser source to be physically separated from the optical delivery point.
488nm Medical Laser Module Applications
The 488nm 30mW module is designed for applications including ophthalmological treatment, medical surgery, physical therapy, and medical optics research. The actual suitability depends on your equipment architecture, treatment protocol, applicable regulations, and required medical certifications.
For example, in a medical optical system, you can integrate the fiber output into a specialized optical assembly to deliver light to a defined location. In research environments, the module can also serve as a compact 488nm light source for biophotonics and medical optics experiments.
Application Comparison
| Application | Why 488nm Fiber Coupling Matters | Typical Integration Focus |
|---|---|---|
| Ophthalmological equipment | Controlled fiber-based light delivery | Optical alignment and output stability |
| Medical surgery systems | Compact optical routing | Fiber interface and power control |
| Physical therapy equipment | Defined light transmission | Treatment head and optical coupling |
| Medical optics research | Stable wavelength source | Experimental optical setup |
| Biophotonics research | Compact fiber-delivered illumination | Fiber specification and beam delivery |
You should validate the final optical output, exposure conditions, and regulatory requirements according to your specific equipment before deployment.
How to Integrate a 30mW Fiber Coupled Laser Diode
If you are developing a new device, a structured integration process can reduce compatibility issues.
- Define the optical requirement: Confirm that 488nm wavelength and 30mW output meet your system requirements.
- Select the fiber configuration: Check whether the standard 3um core and NA 0.13 match your optical assembly.
- Confirm mechanical dimensions: Use the standard 30 × 10 × 10mm housing or discuss a customized size with BU-LASER.
- Check electrical requirements: Design the driver around the specified 6V working voltage and your complete system conditions.
- Verify optical coupling: Evaluate coupling efficiency, fiber routing, and the receiving optical assembly.
- Complete system validation: Test thermal behavior, optical output, lifetime requirements, and applicable safety standards before final production.
This process allows you to select the 488nm fiber coupled laser diode based on your actual system requirements rather than choosing a laser source only by wavelength.
Why Choose BU-LASER for Fiber Coupled Laser Diodes?
Dongguan Blueuniverse Laser Co., Ltd. has developed semiconductor laser products since 2010 and combines R&D, production, and sales capabilities. The company provides laser diodes, laser modules, fiber-coupled lasers, and semiconductor laser light sources covering wavelengths from 375nm to 980nm.
BU-LASER reports more than 15 years of laser R&D experience and holds 80+ patents, including 14 invention patents. Its quality management system is certified to ISO9001:2015, while the company also cites certifications and testing associated with TUV, BV, and SGS.
For OEM and ODM projects, you can discuss wavelength, optical power, fiber core diameter, housing dimensions, operating voltage, beam configuration, and other specifications with the BU-LASER engineering team.
FAQ
What is a 488nm fiber coupled laser diode?
A 488nm fiber coupled laser diode combines a semiconductor laser source with an optical fiber for light transmission. This module provides 488nm output through a 3um single-mode fiber and is available with customization options.
What is the output power of this 488nm laser module?
The standard model provides 30mW optical output power and operates at 6V. Its fiber coupling efficiency is specified at 60%–70%, while the fiber core diameter is 3um with NA 0.13.
Can BU-LASER customize the fiber coupled laser diode?
Yes. BU-LASER provides OEM and ODM services. You can discuss customized housing dimensions, fiber specifications, wavelength, optical power, operating voltage, and other requirements based on your equipment design.
Get a Custom Fiber Coupled Laser Diode
If you are developing medical equipment, optical research instruments, or another precision light-delivery system, first provide your required wavelength, output power, fiber specification, housing size, and application. BU-LASER can then evaluate the fiber coupled laser diode configuration and discuss OEM/ODM options for your project.
Conclusion
The fiber coupled laser diode combines a 488nm wavelength, 30mW output, 3um single-mode fiber, and compact 30 × 10 × 10mm housing in one configurable optical module. With OEM/ODM support and BU-LASER’s semiconductor laser R&D and manufacturing experience, the module can serve as a practical optical source for medical equipment, physical therapy systems, biophotonics research, and other precision light-delivery applications. By matching the wavelength, power, fiber characteristics, mechanical dimensions, and regulatory requirements to your equipment, you can build a more suitable laser integration solution.
