When your CNC system needs higher optical output without sacrificing focusing precision, choosing the right laser module 80w can directly affect cutting speed, engraving detail, and equipment integration. A mismatched wavelength, beam profile, or housing can create alignment and compatibility problems.

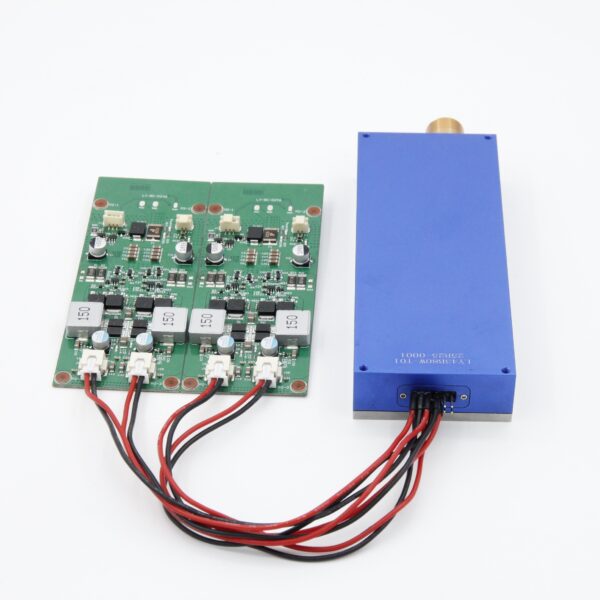

The BU-LASER 435nm 80W blue laser module provides 80W optical output at 435nm, with a 24V working voltage and a focused beam size below 180 × 160 μm at a 50mm focus distance. You can integrate this high-power blue diode laser into CNC engraving machines, cutting equipment, laser weeding systems, powder sintering setups, and selected 3D printing applications.
80W Laser Module Specifications
The performance of an 80w laser module depends on more than optical power. Wavelength, beam size, focusing distance, housing dimensions, and operating voltage all influence how effectively you can integrate the module into your equipment.
BU-LASER designed this model for applications requiring concentrated blue laser output and a compact, customizable housing.
Core Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 435nm |
| Optical Output Power | 80W |
| Laser Type | High Power Blue Diode Laser |
| Working Voltage | 24V |
| Beam Mode | Focus Dot |
| Focus Distance | 50mm |
| Beam Size | <180 × 160 μm |
| Housing Size | 155 × 56 × 23mm |
| Housing | Customizable |
| Lens | Glass |
| Rated Lifespan | 10,000 hours |
The 435nm 80w laser module uses a glass lens and supports housing customization. Therefore, you can discuss mechanical dimensions and integration requirements with BU-LASER when developing or upgrading a laser-based machine.
435nm Blue Laser Module for CNC Engraving and Cutting
A blue diode laser can provide a practical optical source for equipment that requires concentrated energy at a 435nm wavelength. With 80W optical output, this module targets applications where lower-power engraving modules may not provide the required processing capability.
You can use the module for:
- CNC laser engraving and cutting equipment
- Laser engraver upgrades and custom machines
- Laser cutting systems
- Powder sintering and additive manufacturing research
- Selected 3D printing applications
- Automated laser weeding equipment
- DIY and specialized CNC projects
For CNC integration, you should evaluate the material, optical path, motion speed, cooling design, and machine enclosure together rather than selecting a module based only on wattage.
80W Blue Laser Module vs. Lower-Power Modules
When you compare an 80W module with lower-power laser modules, the main differences relate to optical output and intended processing requirements.
| Feature | 80W Blue Laser Module | Lower-Power Laser Module |
|---|---|---|
| Optical Output | 80W | Typically lower |
| Wavelength | 435nm | Varies |
| CNC Cutting | Suitable for high-power applications | Depends on material |
| Engraving | Suitable | Suitable |
| Laser Weeding | Applicable | May require multiple passes |
| Focus Distance | 50mm | Varies by model |
| Beam Size | <180 × 160 μm | Varies |
| Custom Housing | Available | Model dependent |
This comparison does not mean that higher power is suitable for every machine. Instead, you should match optical output to your material, processing speed, working distance, and safety system.
How to Integrate an 80W Laser Module for CNC
Before installing an 80w laser module for CNC engraving, follow a structured integration process.
- Confirm the optical requirements
Check the required wavelength, output power, focal distance, and beam size for your application. - Check electrical compatibility
This model uses a 24V working voltage, so verify that your power and control system meet the module’s requirements. - Confirm mechanical dimensions
The standard housing measures 155 × 56 × 23mm. Ask BU-LASER about customization if your machine requires a different enclosure. - Align the optical path
Position the module according to the specified 50mm focus distance and verify the beam position before production use. - Test under controlled conditions
Start with application-specific parameters and confirm the interaction between laser power, motion speed, focus, and material.
Always use an appropriate laser enclosure, interlock, beam control system, and other safety measures required for your installation and laser class.
Why Choose BU-LASER for High Power Laser Modules?
Dongguan Blueuniverse Laser Co., Ltd. has worked in laser R&D and manufacturing since 2010. The company develops semiconductor laser diodes, laser modules, fiber-coupled lasers, and semiconductor laser light sources covering wavelengths from 375nm to 980nm.
BU-LASER reports 15+ years of laser R&D experience and 80+ patents, including 14 invention patents. Its quality and compliance credentials include ISO9001:2015, TUV, BV, and SGS certifications, while the company provides OEM and ODM services for customized laser solutions.
The company also has experience across CNC engraving, 3D scanning, 3D printing, security, medical aesthetics, stage lighting, barcode scanning, machine vision, and other optoelectronic applications.
FAQ
What wavelength does the 80W laser module use?
This model uses a 435nm wavelength and provides 80W optical output. It is designed as a high-power blue diode laser module.
Can the 80W laser module be used for CNC engraving?
Yes. The module is designed for integration into CNC engraving and cutting equipment. You should select operating parameters according to your material and machine configuration.
Can BU-LASER customize the laser module?
Yes. BU-LASER provides OEM and ODM services, including customizable housing dimensions and laser module configurations. You can provide your equipment requirements for evaluation.
Conclusion
The laser module 80w combines 435nm blue diode output, 80W optical power, a 50mm focus distance, and a beam size below 180 × 160 μm in a compact housing. For CNC engraving, laser cutting, laser weeding, powder sintering, and selected 3D printing applications, you can evaluate this module according to your material, machine design, optical requirements, and safety system.
CAT
If you are developing a CNC laser system or upgrading an existing engraver, contact Dongguan Blueuniverse Laser with your required wavelength, optical power, working distance, housing dimensions, application, and quantity. BU-LASER can assess the configuration and provide OEM/ODM support for your project.
