Fiber Coupled Lasers

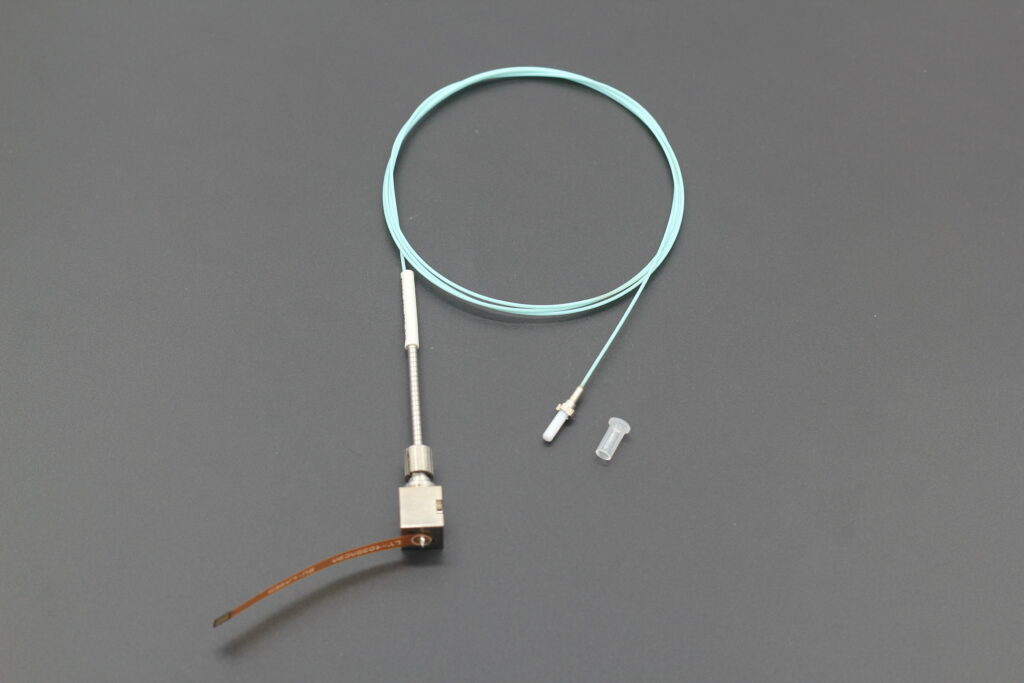

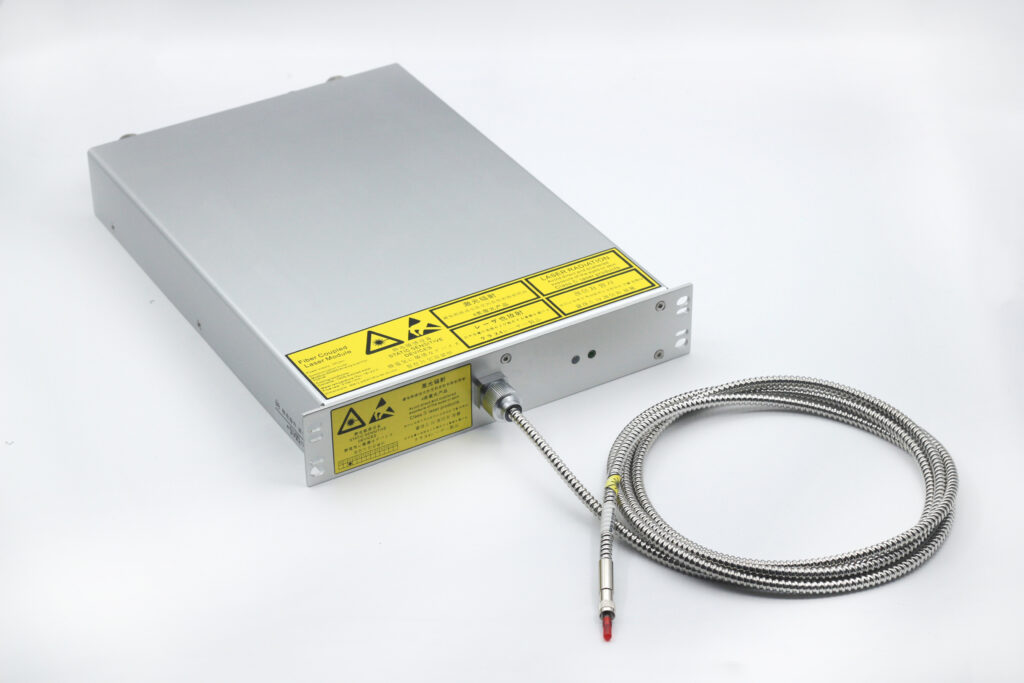

A fiber-coupled laser is a diode laser where the generated light is guided and delivered by an optical fiber instead of being emitted as a free-space beam. A fiber coupled laser is a type of laser system where the laser beam, generated by a laser source (e.g., diode lasers, solid-state lasers), is efficiently coupled into an optical fiber for transmission, delivery, or further processing. Unlike “free-space lasers” (where the beam travels through air), fiber coupled lasers leverage optical fibers to guide the laser beam, enabling flexible, stable, and precise beam delivery in industrial, medical, scientific, and consumer applications.
Professional Manufacturer of the Fiber Coupled diode lasers : Dongguan Blueuniverse Laser Co., Ltd.
Core Components of a Fiber Coupled Laser
A typical fiber coupled laser system consists of three key parts, working together to ensure efficient beam coupling and transmission:
| Component | Function | Key Details |
| Laser Source | Generates the initial laser beam | Common types: – Diode lasers (most widely used for cost/efficiency). – Solid-state lasers (e.g., Nd:YAG, for high power/beam quality). – Fiber lasers (note: fiber lasers generate light in fibers; fiber coupled lasers deliver light via fibers, which may include fiber laser sources). |
| Coupling Optics | Bridges the laser source to the optical fiber | Critical for minimizing beam loss: – Lenses (collimating lenses to focus the divergent laser beam; focusing lenses to match the beam’s numerical aperture to the fiber’s). – Alignment mechanisms (to precisely align the laser beam with the fiber’s core, as even micron-scale misalignment causes major losses). |
| Optical Fiber | Guides the coupled laser beam | Designed for laser compatibility: – Core: Central region that transmits the laser beam (diameter ranges from ~5 μm for high beam quality to ~1000 μm for high-power delivery). – Cladding: Surrounds the core; has a lower refractive index to trap light via total internal reflection (TIR). – Coating: Protects the fiber from mechanical damage and environmental interference (e.g., moisture, dust). |
How Does Fiber Coupling Work?
The goal of “coupling” is to transfer as much of the laser beam’s power into the fiber’s core as possible, while preserving beam quality. The process relies on two key principles:
- Matching Beam Parameters
For efficient coupling, the laser beam’s properties must match the fiber’s specifications:- Numerical Aperture (NA): A measure of the fiber’s ability to accept light. The laser beam’s NA (determined by its divergence angle) must be ≤ the fiber’s NA to avoid light escaping the core.
- Beam Diameter: The focused laser beam’s diameter must match the fiber core’s diameter. If the beam is too large, it hits the cladding and is lost; if too small, it wastes the fiber’s capacity.
- Minimizing Losses
Even with perfect parameter matching, losses occur due to:- Alignment Errors: Misalignment (lateral, angular, or axial) between the laser beam and fiber core (the #1 cause of coupling loss).
- Optical Imperfections: Scattering from dirty lenses/fiber ends, or reflections at air-glass interfaces (mitigated with anti-reflective coatings).
- Fiber Bending: Excessive bending of the fiber can cause “bending loss” (light leaks out of the core), so fibers are rated for minimum bend radius.
Key Advantages Over Free-Space Lasers
Fiber coupled lasers solve critical limitations of free-space laser systems, making them dominant in most practical applications:
| Advantage | Description |
|---|---|
| Flexible Beam Delivery | Optical fibers are lightweight and bendable, allowing the laser beam to reach tight or remote spaces (e.g., inside a machine tool or human body). |
| Stable Performance | The fiber protects the beam from environmental interference (air turbulence, dust, vibration) that degrades free-space beams. |
| Compact Design | The fiber eliminates the need for large, fixed mirrors/lenses (used in free-space systems), reducing the laser’s size and cost. |
| Safe Operation | The fiber contains the laser beam, reducing the risk of accidental exposure (critical for high-power lasers). |
| Scalability | Multiple fiber coupled lasers can be combined (via fiber combiners) to deliver higher power than a single laser. |
Common Applications
Fiber coupled lasers are ubiquitous across industries due to their versatility. Key use cases include:
- Industrial Manufacturing
- Laser Cutting/Welding: Fibers deliver high-power beams to robotic arms for precision cutting of metals (e.g., automotive parts) or welding of electronics.
- Laser Marking: Low-power fiber coupled lasers mark barcodes, logos, or serial numbers on plastics, metals, and glass (e.g., smartphone casings).
- Medical & Biomedical
- Surgery: Fiber-coupled diode lasers deliver controlled heat for minimally invasive procedures (e.g., laser eye surgery, dermatological treatments for tattoos or lesions).
- Imaging: Low-power lasers coupled to optical fibers enable endoscopy (imaging inside the body) or confocal microscopy (high-resolution biological imaging).
- Scientific Research
- Spectroscopy: Fibers deliver laser light to samples in harsh environments (e.g., high-temperature reactors) or remote locations (e.g., field studies of atmospheric gases).
- Optical Sensing: Fiber coupled lasers power sensors for measuring temperature, pressure, or strain (e.g., monitoring oil pipelines or bridge structural integrity).
- Consumer & Telecommunications
- Fiber Optic Communications: While telecom uses “communication-grade” lasers, fiber coupling is foundational to transmitting laser signals over long distances (e.g., internet backbones).
- 3D Printing: Fiber coupled lasers melt or sinter materials (e.g., metal powders) in additive manufacturing.
