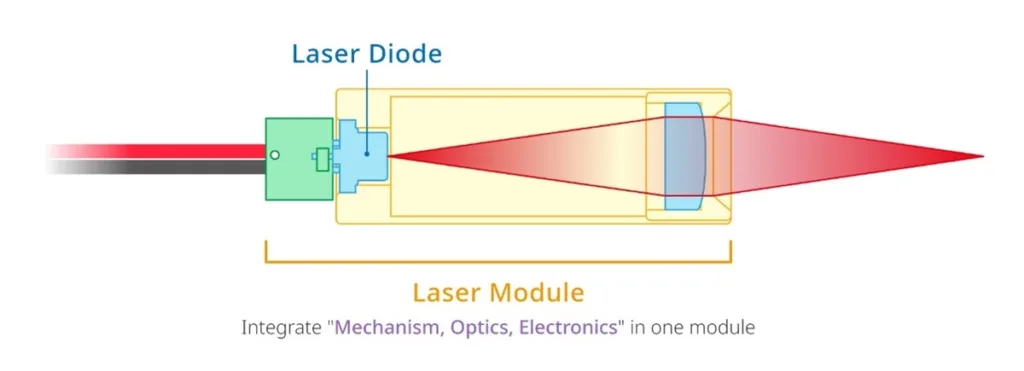

A laser diode module (Laser Module)is an integrated device that combines a laser diode (the core light-emitting component) with supporting components to enable stable, safe, and practical laser emission. It is designed to simplify the use of laser diodes by packaging essential elements into a single, ready-to-use unit.

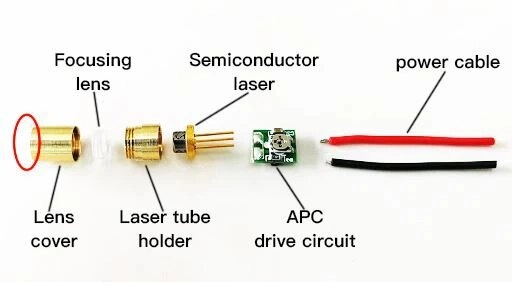

Key Components
1. Laser Diode Chip: The core semiconductor device that generates coherent light through stimulated emission when electrically powered.
2.Drive Circuitry: Regulates current/voltage to stabilize the laser diode’s output, preventing damage from fluctuations and ensuring consistent performance.
3. Optical Elements: May include lenses, collimators, or filters to shape, focus, or modify the laser beam (e.g., collimating it into a parallel beam or concentrating it into a spot).
4. Housing: A protective casing (often metal or plastic) that shields internal components from dust, moisture, and physical damage, while sometimes aiding in heat dissipation.
5. Cooling Mechanism: Passive (heat sinks) or active (small fans) systems to manage heat, as laser diodes are sensitive to overheating.
Functions and Applications
Laser diode modules convert electrical energy into a focused, coherent laser beam with specific wavelengths (e.g., visible red, green, or infrared). They are widely used in:
Industrial settings: Cutting, engraving, alignment, and measurement.
Medical fields: Laser therapy, diagnostics, and surgical tools.
Consumer devices: Laser pointers, barcode scanners, and optical drives.
Research and communication: Fiber optics, spectroscopy, and lab experiments.
Their compact size, low power consumption, and tunable output make them versatile for both professional and everyday applications.
BU-LASER provides laser modules with multiple specification choices(output power, beam divergence, beam size, working distance, and dimension) better meet customers’ needs of accurate laser positioning/locating/orientating. To know more, please contact us at song@bu-laser.com.
