1. How the Laser Works Inside an LDI Machine
The UV or violet laser module acts as the fundamental energy core of the entire LDI exposure system, cooperating with single-mode fiber transmission assembly, beam shaping optical path, DMD digital micromirror modulation unit and high-speed precision XY motion platform to complete full-panel digital circuit pattern writing. The complete laser operation flow inside LDI machine is divided into five precise links.
1. Stable monochromatic beam output
The customized industrial LDI laser module adopts high-quality laser chip and built-in constant temperature closed-loop drive circuit. After power-on soft start, it outputs low-noise, uniform, continuous monochromatic ultraviolet or violet laser beam. The built-in power monitoring module dynamically regulates output laser power. It limits the output beam’s energy fluctuation to ±2% and erases uneven exposure defects triggered by unstable light sources during long-duration mass production.
2. Fiber transmission and beam collimation shaping
Each laser module outputs laser beams, which single-mode polarization-maintaining fibers deliver to the scanning exposure printhead. This design prevents beam distortion and energy loss during long-distance optical transmission. Inside the printhead, multiple sets of dedicated collimating lens arrays turn divergent laser beams into evenly parallel light. The uniform illumination keeps consistent optical energy density across all scanned PCB areas and holds line width variation across the substrate within the micron range.
3. Digital pixel-level light modulation via DMD
The shaped parallel laser beam irradiates on DMD digital micromirror device composed of millions of tiny independent micro mirrors. The equipment control system transmits digital circuit pattern data to the DMD in real time and drives each micromirror to switch between two tilt angles. When the system tilts a micromirror to the reflection optical path, it directs the laser beam onto the PCB substrate to expose the photoresist. When tilting the micromirror toward the light trap, the device fully absorbs the laser light and blocks stray light interference that reduces pattern resolution. The laser beam realizes pixel-by-pixel rapid on-off switching synchronously following digital drawing data.
4. Synchronous micron-level scanning exposure
The modulated tiny focused laser spot matches the high-speed linear motor XY motion platform to complete synchronous high-precision scanning movement. The motion platform carries PCB board to move at stable uniform speed, while the laser modulated graphic pixels continuously scan and cover the whole board surface. The focusing optical group shrinks laser spot to 10~20μm, realizing ultra-fine circuit pattern transfer that traditional film exposure cannot achieve.
5. Trigger photochemical curing reaction of photoresist
The high-energy ultraviolet/violet photons carried by laser accurately act on the area designated by digital graphics, activate the cross-linking polymerization reaction of photoresist macromolecular structure. Exposure cures the irradiated photoresist into an insoluble solid layer. The subsequent developing process washes away unexposed regions, ultimately forming sharp, intact, high-precision circuit protective patterns on the substrate.
2. Core Functions of Laser in LDI Equipment
The laser bears four irreplaceable core functions in LDI digital imaging equipment, which are the key factors determining processing precision, production yield and equipment stability:
Provide controllable special exposure photon energy
Ordinary visible light and infrared laser cannot provide enough photon energy to excite cross-linking reaction of PCB UV photoresist, while 375nm & 405nm violet laser has accurate matching absorption spectrum with various dry film, liquid photoresist and solder mask ink. The adjustable laser power can flexibly adapt to thin-layer inner film low-energy exposure and thick-layer solder mask high-energy exposure scenes, achieving targeted selective curing of graphics.
Carry ultra-high resolution micro imaging capability
The optical shaping system narrows laser beams into uniform micro-spots to produce sub-20μm ultra-fine traces. Superior beam uniformity yields smooth, serration-free line edges and cuts PCB open/short circuit defects from uneven patterns.
Realize fully digital mask-free imaging carrier
The laser system adopts DMD digital modulation technology. It instantly toggles pixel-level exposure states in accordance with refreshed digital data files. Manufacturers are no longer required to replace physical film when switching between different product models. This drastically reduces model changeover time for small-batch and mixed-variety orders and raises the overall production efficiency.
Support long-term stable continuous mass production
Our industrial-grade LDI dedicated laser module adopts anti-light decay packaging design and constant temperature drive protection. It can keep stable power output for thousands of hours of non-stop scanning exposure, without frequent power calibration maintenance. The anti-surge, anti-reverse connection and over-temperature protection circuits inside the module reduce equipment downtime caused by laser failure, and greatly lower the after-sales maintenance cost of LDI production lines.
We offer fully customized laser solutions for clients developing or assembling their own LDI equipment. Our customizable items cover output power, fiber length, spot energy uniformity and supporting drive circuits. We also provide complete parameter test reports to align with your optical system design specifications.

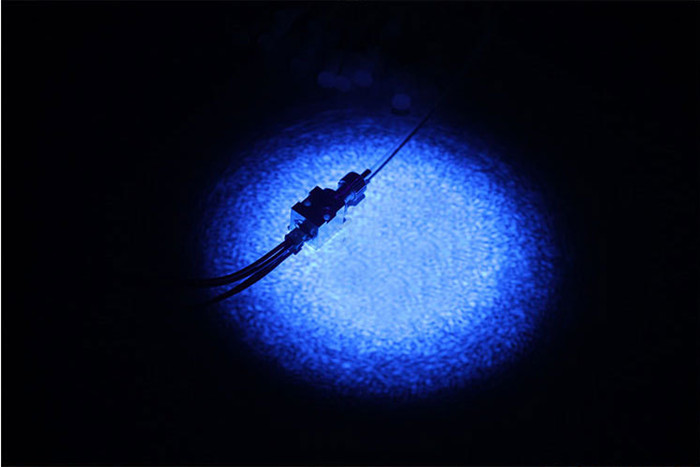

Our company provides customized fiber-coupled 375nm & 405nm violet laser modules exclusively for LDI equipment. Each laser module integrates an internal constant-temperature driver and closed-loop power control system. It effectively restrains power drift and light attenuation during prolonged scanning exposure, delivering stable, uniform exposure energy for digital imaging of circuit boards.
