1064nm 2W& 450nm 10W Dual Wavelength Laser Head for Laser Engraver

This 1064nm 2W & 450nm 10W Dual Wavelength Laser Head is a professional-grade core component for laser engravers, integrating high-power 450nm blue laser and 1064nm infrared laser to enable multi-material, high-precision laser engraving. It excels in targeted engraving on diverse materials, becoming an ideal choice for industrial production, craft customization, and commercial engraving services—delivering versatile, efficient, and precise engraving performance.

Core Technical Advantages for Laser Engraving

Dual Wavelength Material Coverage: The two lasers independently adapt to different engraving needs, covering most common materials for comprehensive usability.
   450nm 10W blue laser: Specifically fits laser engraving on wood, bamboo, leather, colored paper, painted metal, rock slabs, oxidized metal, ceramics, food, and acrylic. It delivers fast surface engraving and fine detail rendering, ideal for both craft customization and batch production.
   1064nm 2W infrared laser: Specializes in precision engraving on metal materials including gold, silver, copper, iron, zinc alloy, titanium alloy, and stainless steel. It also adapts to non-metal materials like ABS and PVC, plus acrylic—excelling at deep, wear-resistant marks for industrial parts and durable products.

High Power & Efficient Engraving: The 450nm laser’s 10W stable output (power fluctuation ≤±5%) supports engraving speeds up to 1000mm/s, while the 1064nm 2W infrared laser provides focused energy for deep engraving (up to 0.5mm on metals). Both ensure engraving precision (≤±0.01mm) while shortening processing cycles.

Precision Optics for Sharp Results: Equipped with medical-grade coated optical lenses and a dual-path focusing system, it achieves a minimum spot size of 0.3mm. Narrow beam divergence and uniform energy distribution deliver crisp lines, clear textures, and no edge blurring—critical for intricate patterns, text, and QR code engraving.

Stable Long-Term Operation: Adopts high-quality semiconductor laser diodes and a dual-channel heat dissipation system (aluminum alloy heatsink + silent fan). It supports 24/7 continuous laser engraving (service life >12,000 hours) and resists voltage fluctuations and mechanical vibration—adapting to harsh industrial environments.

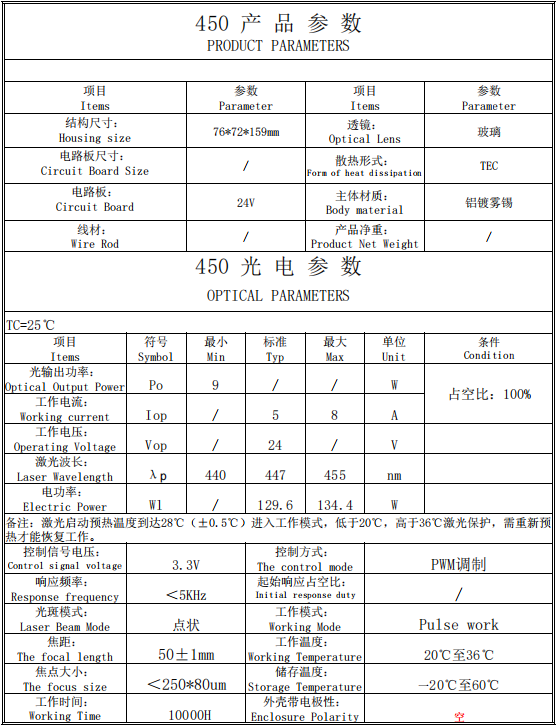

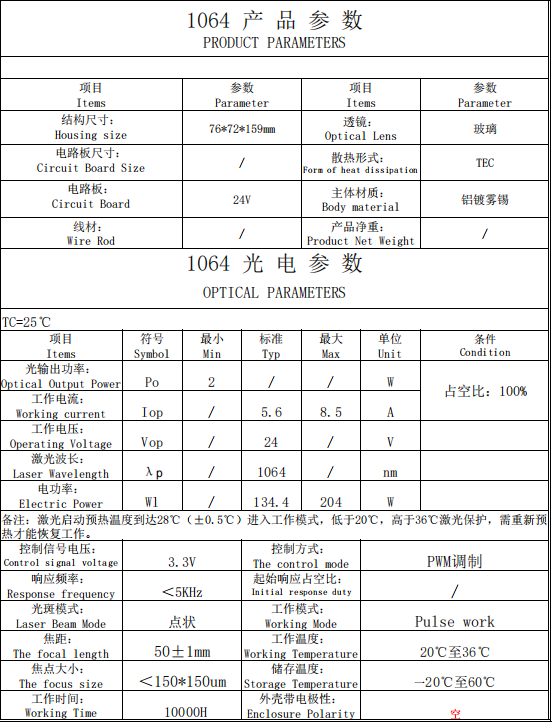

Core Specification

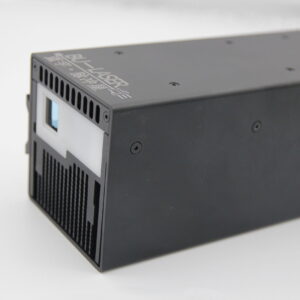

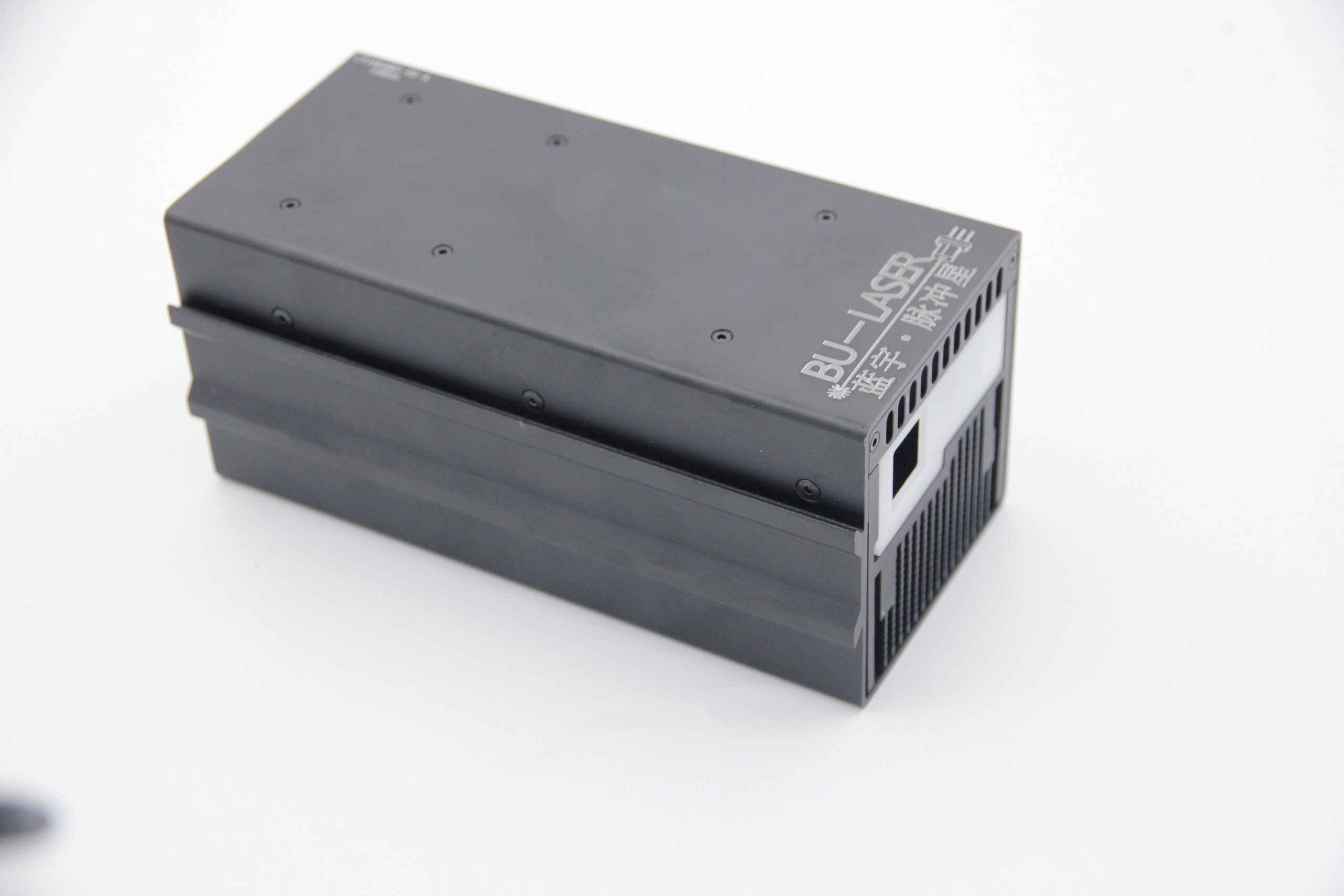

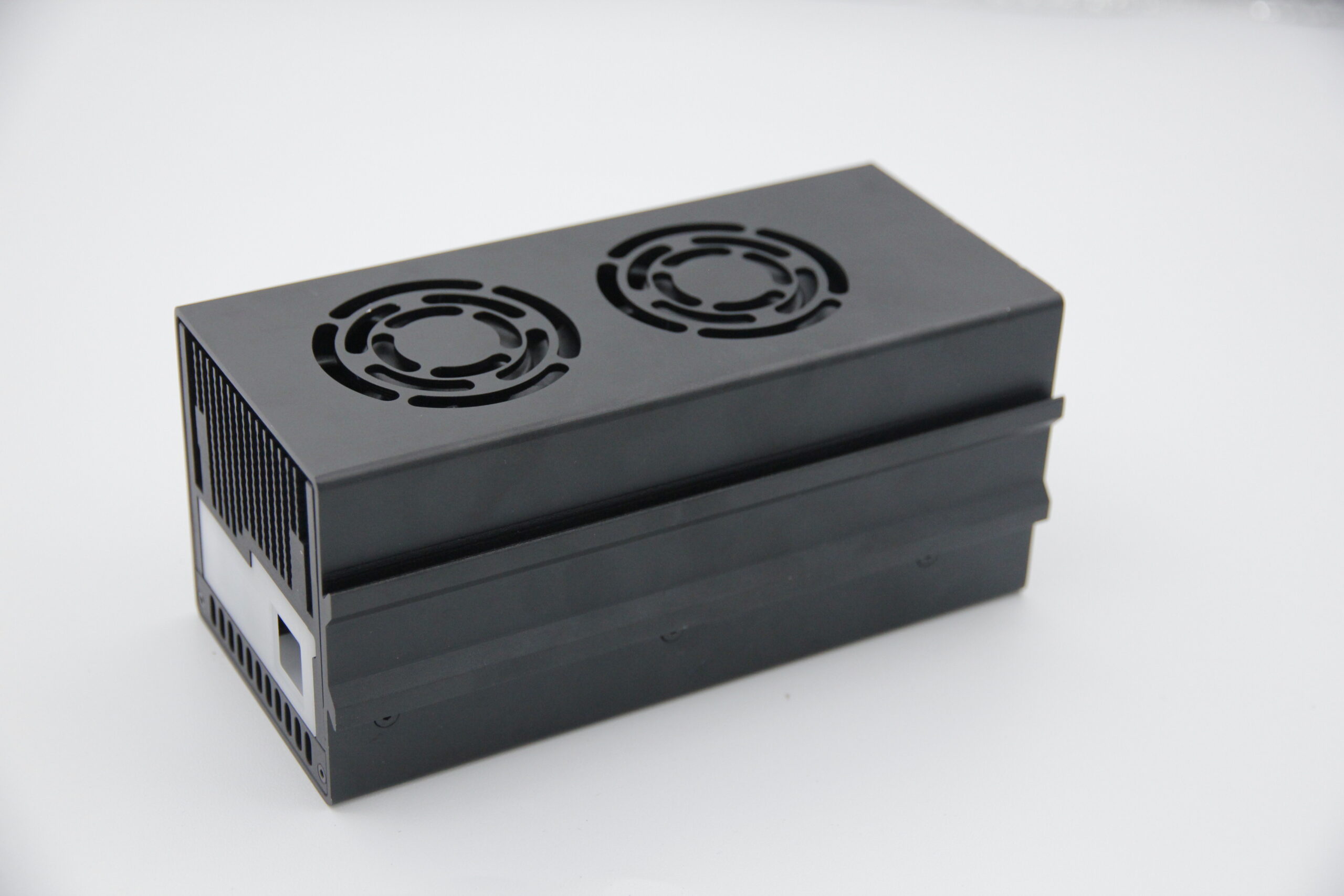

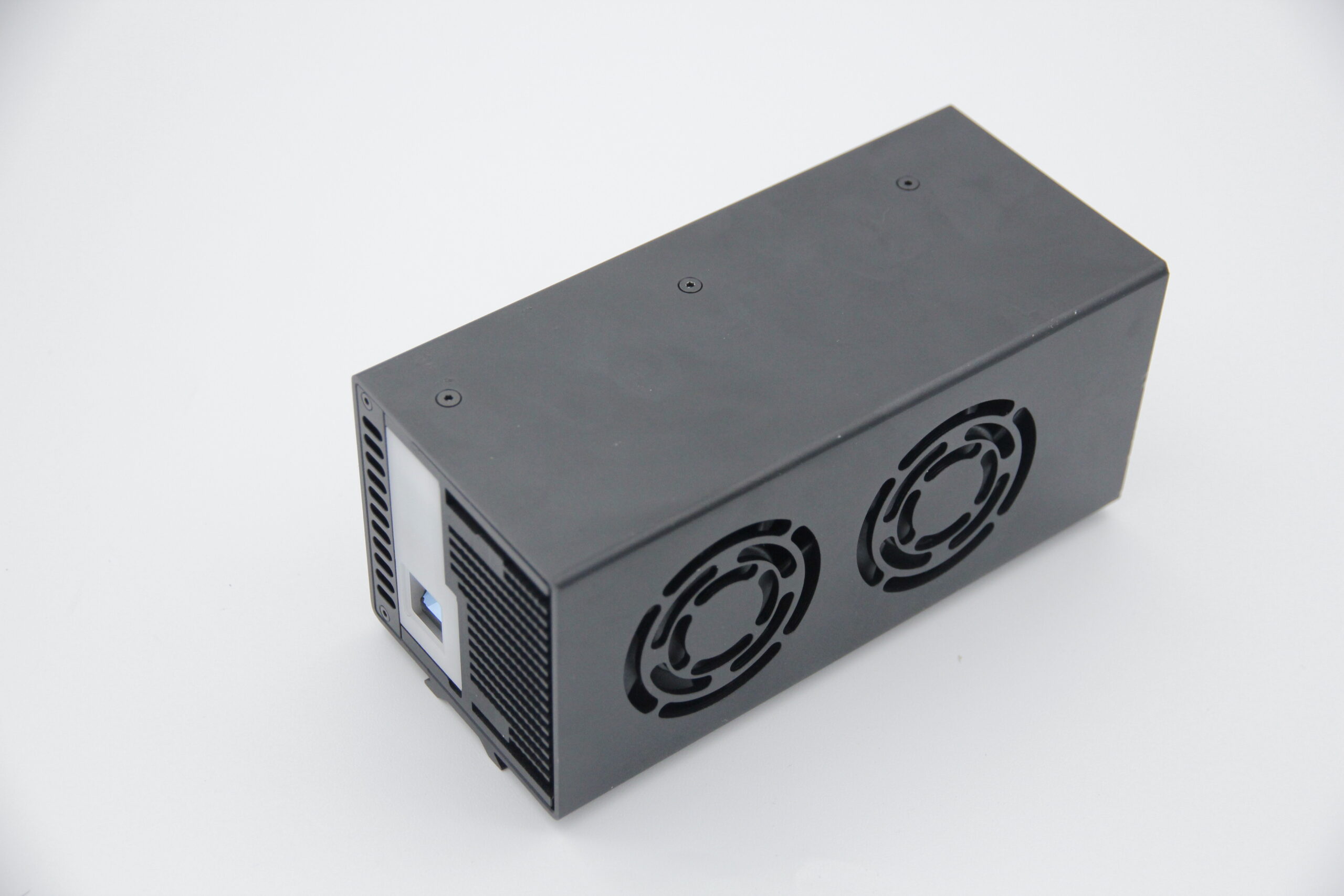

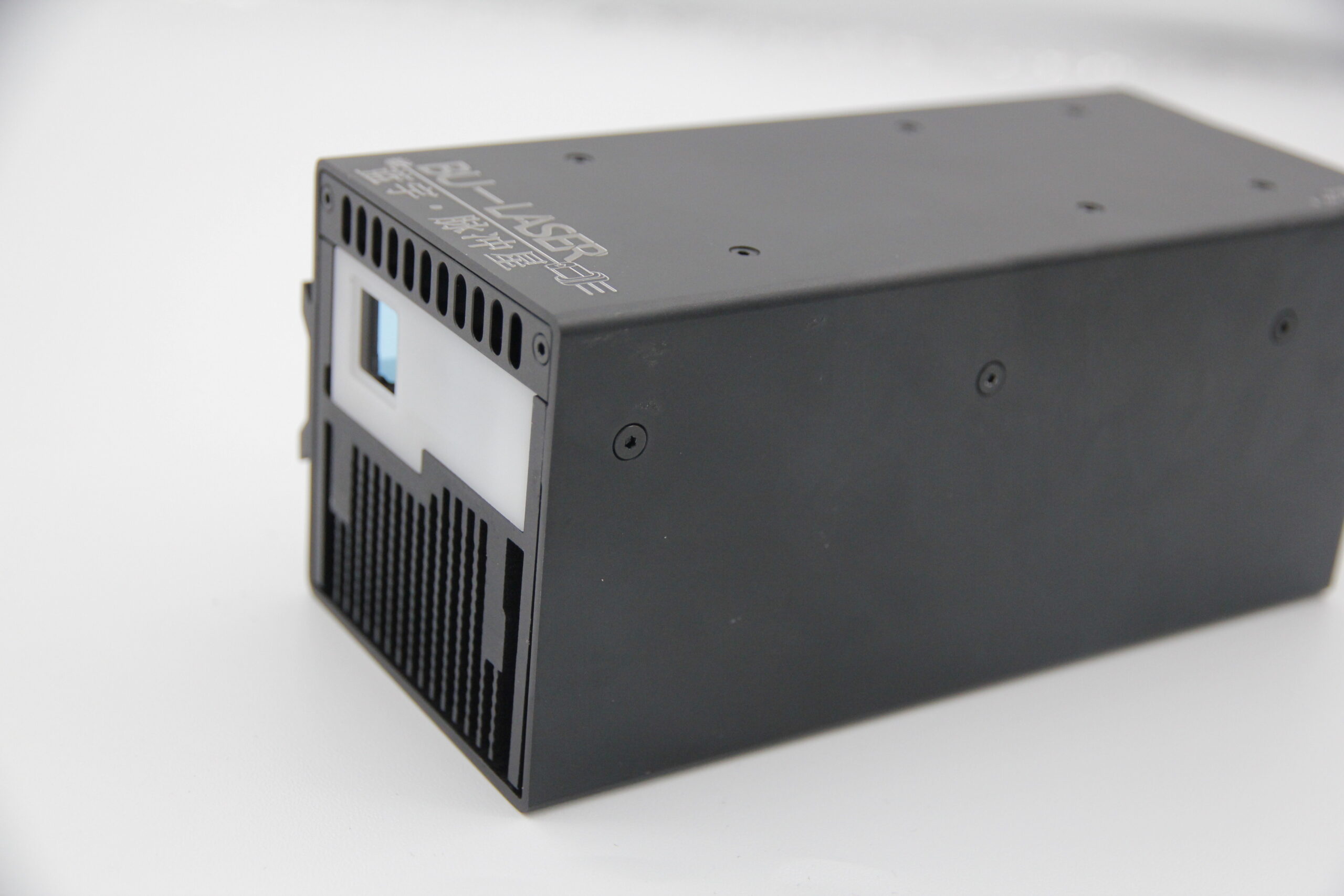

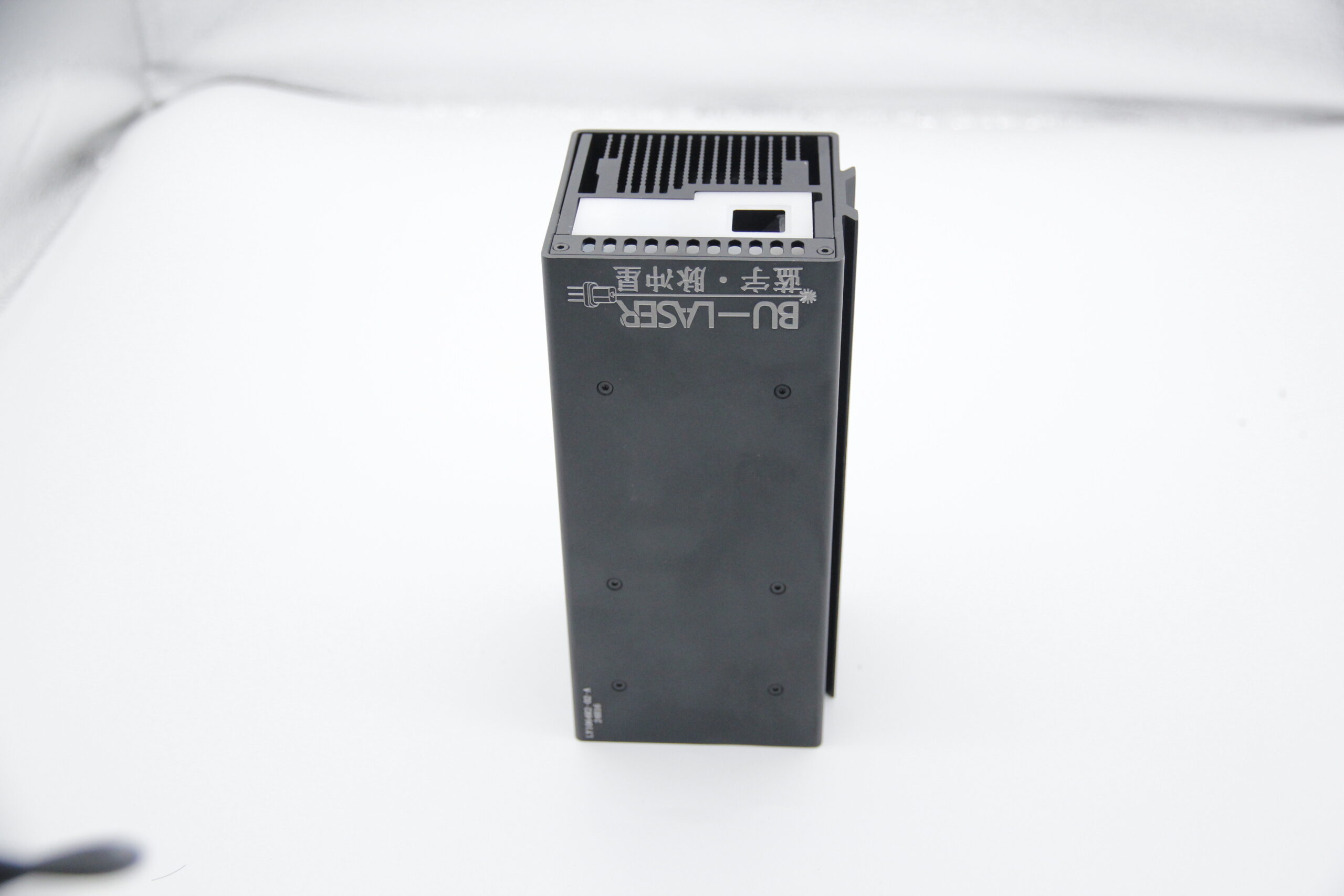

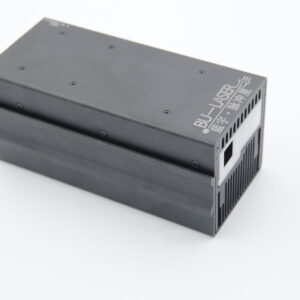

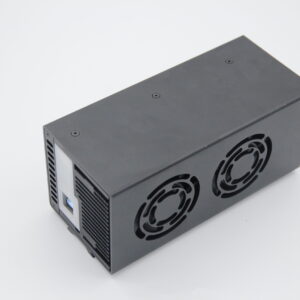

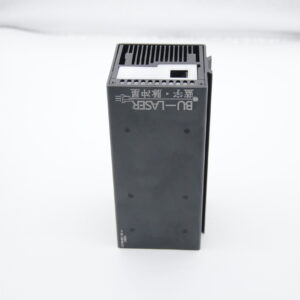

Product Display

Our Services

We have over 15 years ofexperience with Lasers. We offer professional 0EM& ODM service for laser modules from 375nm to 1o64nm!
