Violet 405nm 100mW Parallel Light Uniform Line Laser Module
We introduce our Parallel Light Uniform Line Laser Module – the ultimate solution for your three-dimensional scanning and machine vision needs. This professional-grade product delivers exceptional performance and reliability, making it a must-have for professionals across various industries.
Equipped with advanced three-dimensional scanning capabilities, our Parallel Light Uniform Line Laser Module provides precise and accurate results. Whether you work in industrial automation, robotics, or quality control, this module ensures you complete your scanning tasks with utmost efficiency and precision.
Notably, we designed this uniform Line Laser Module with machine vision in mind, so it seamlessly integrates into your existing systems while offering seamless compatibility and easy installation. Thanks to its professional-grade construction, this module guarantees long-lasting performance even in demanding environments.
Furthermore, with its parallel light line projection, this module enhances visibility and accuracy during scanning operations. This feature ensures your scans are detailed and reliable, allowing you to capture even the finest details with ease.
Additionally, beyond its exceptional performance, our Parallel Light Uniform Line Laser Module boasts a user-friendly interface, making it accessible to both novice and experienced users. Its intuitive controls and adjustable settings enable effortless customization, ensuring you achieve the desired results every time.
Invest in our Parallel Light Line Laser Module today and experience the difference it can make in your three-dimensional scanning and machine vision tasks. With its professional tone and cutting-edge features, this product is the perfect choice for professionals seeking top-notch performance and reliability.

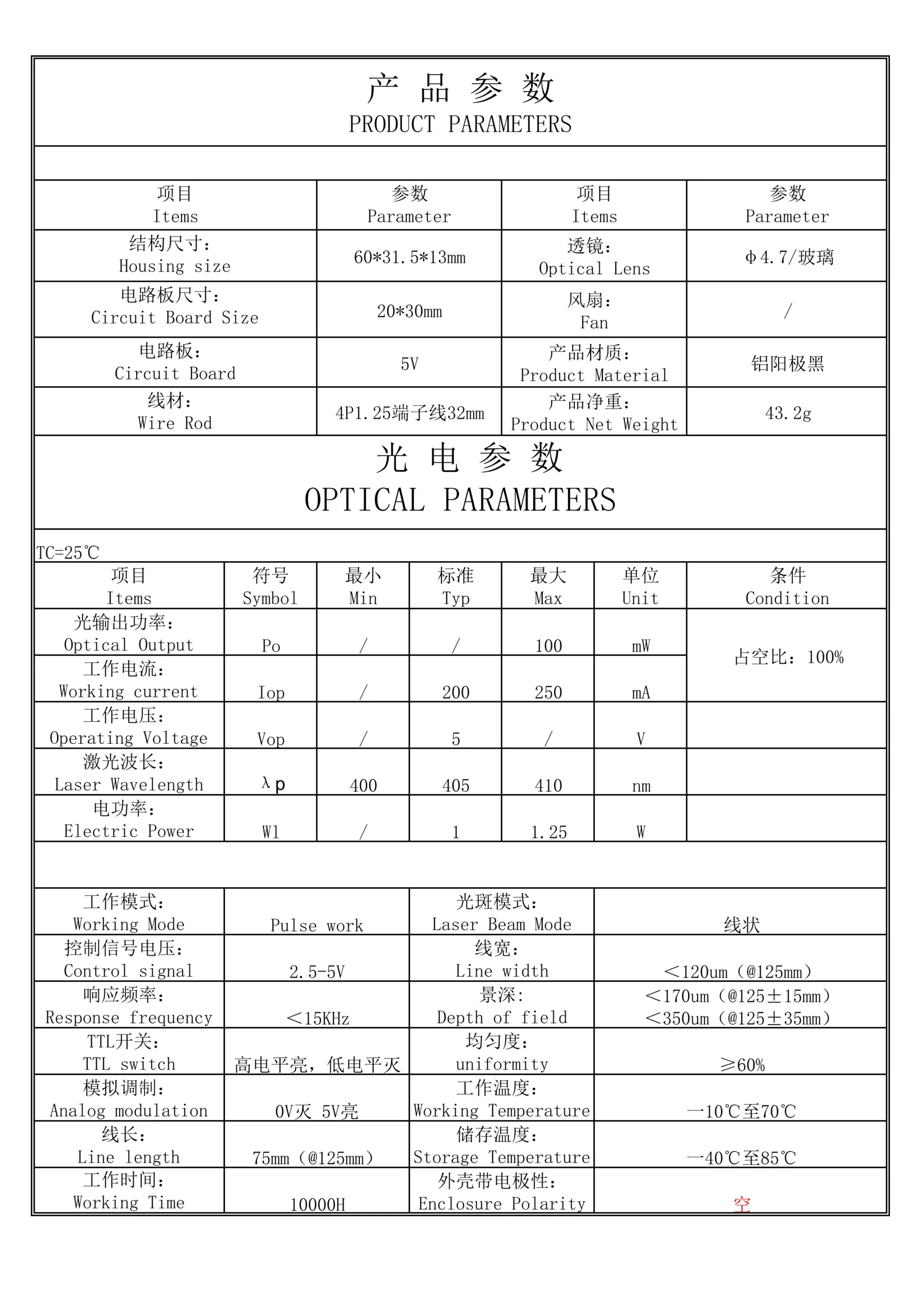

Core Specification:
| Wavelength | 405nm |
| Output Power | 100mW |
| Working Voltage | 5V PWM |
| Laser Beam Mode | Uniform Line laser |
| Line Width | <120um@125mm distance (Customizable) |

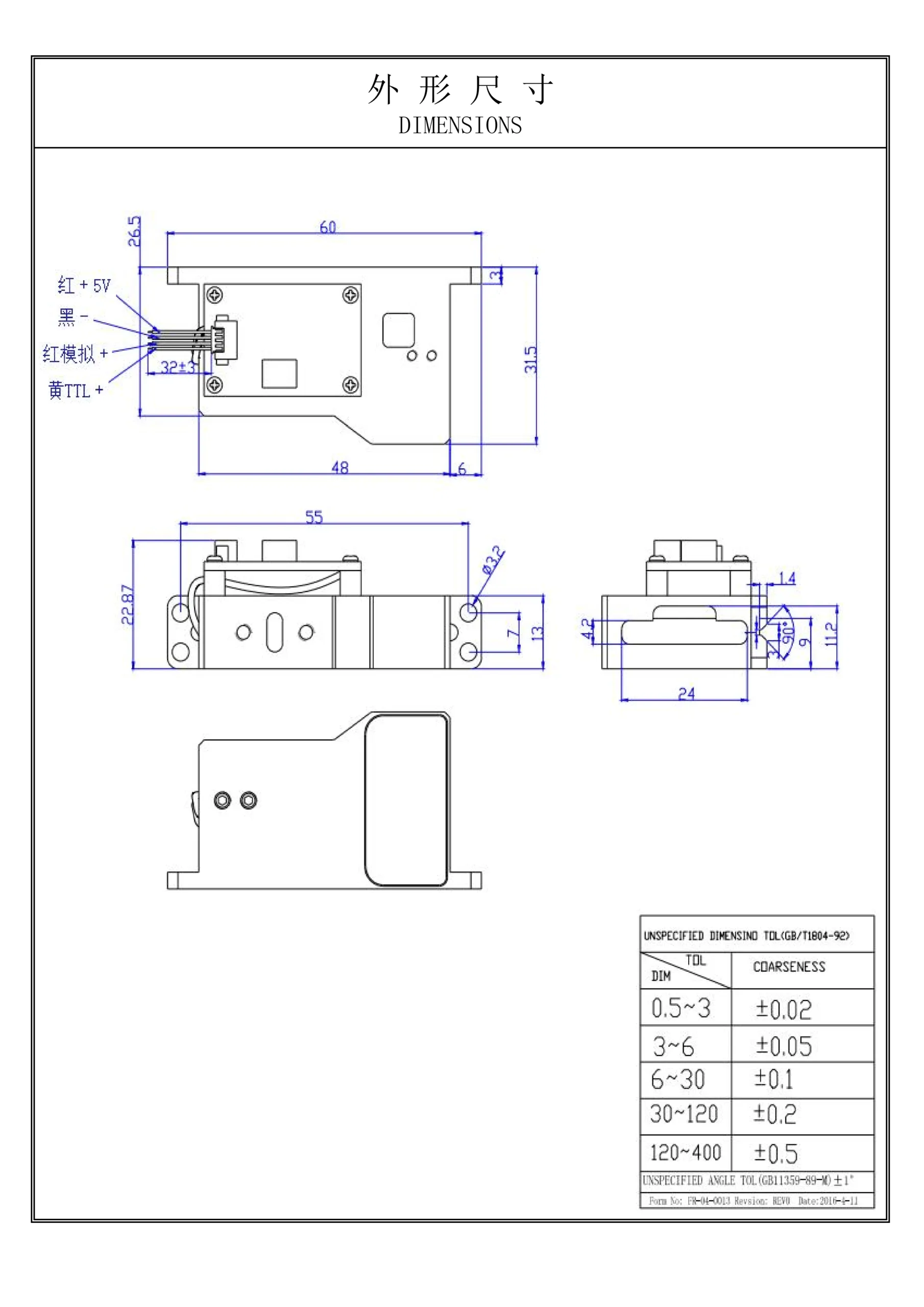

| Housing Size | 60*31.5*13mm (Customizable) |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |

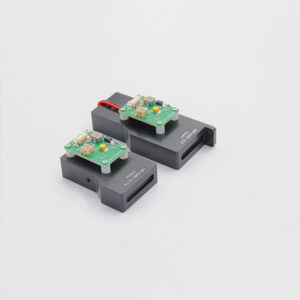

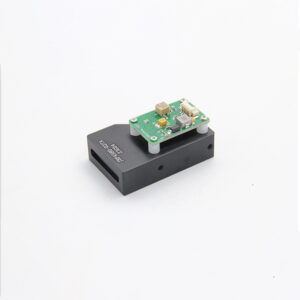

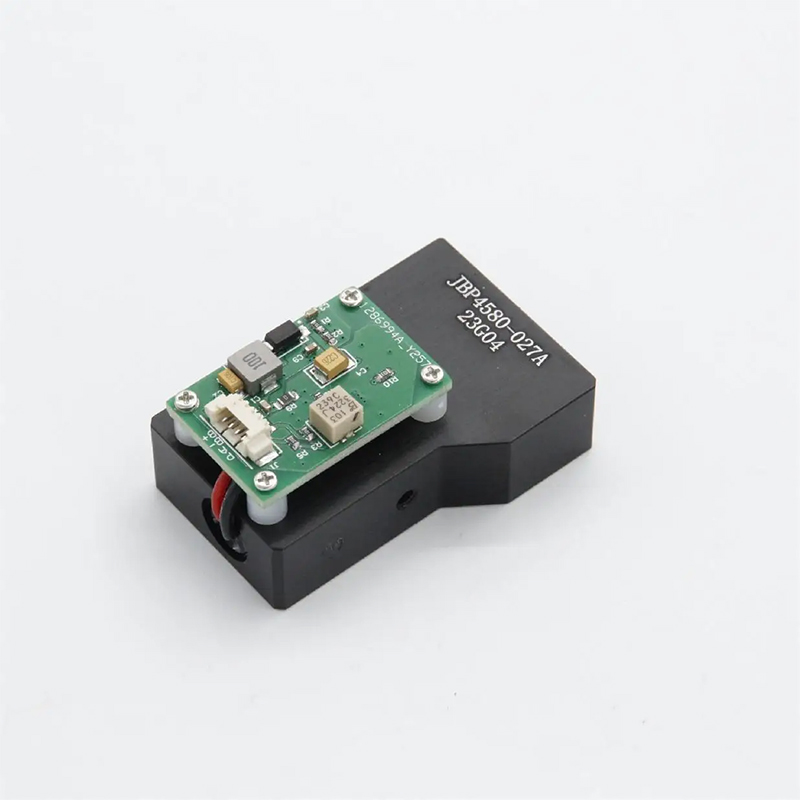

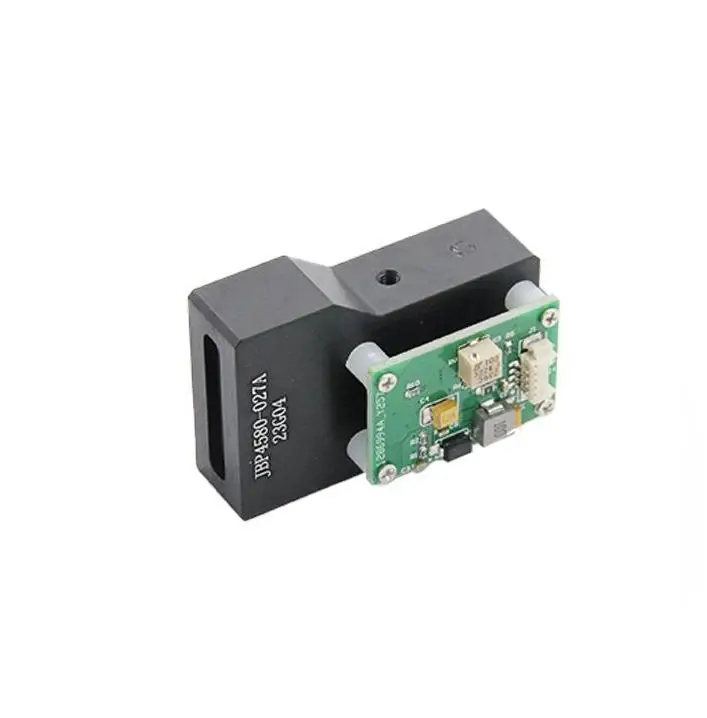

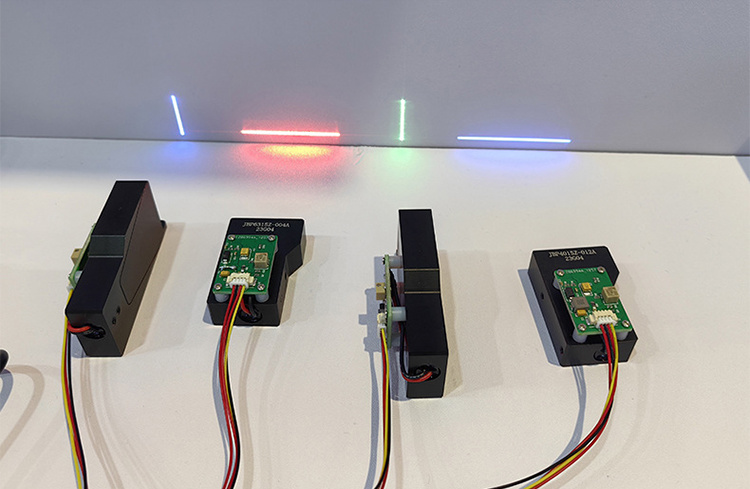

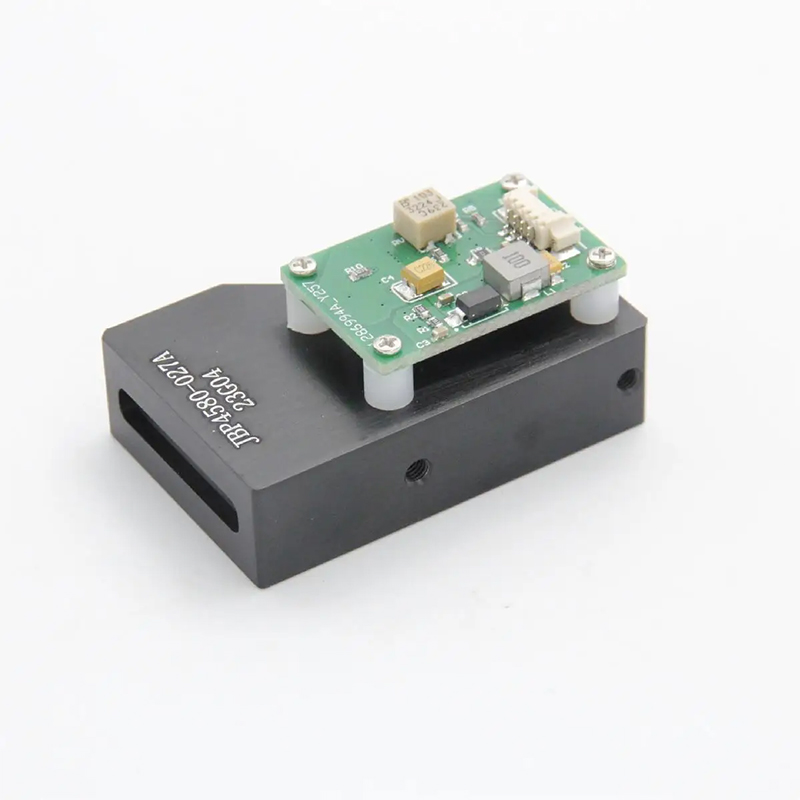

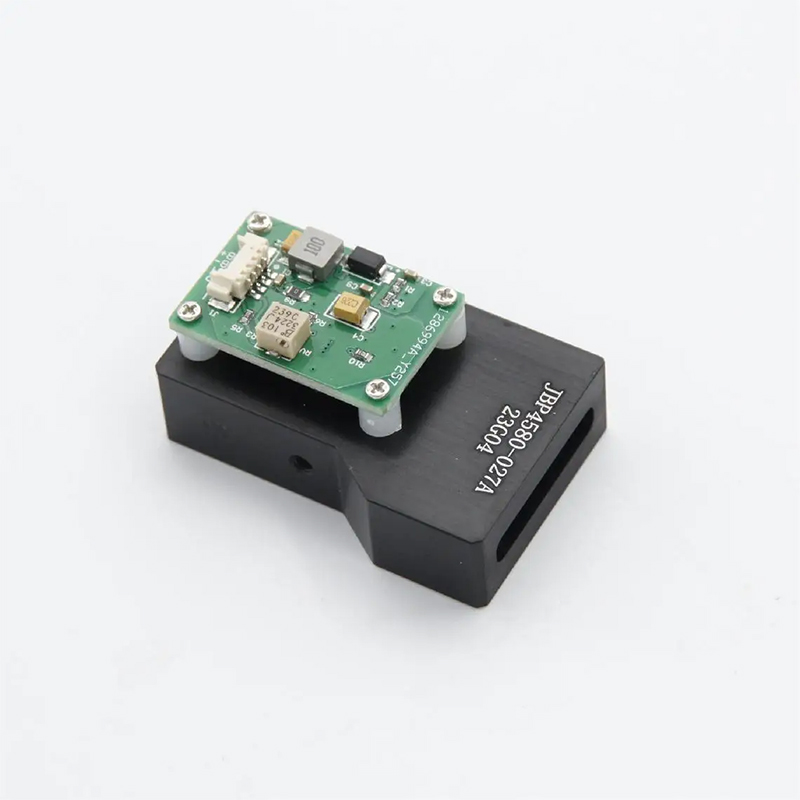

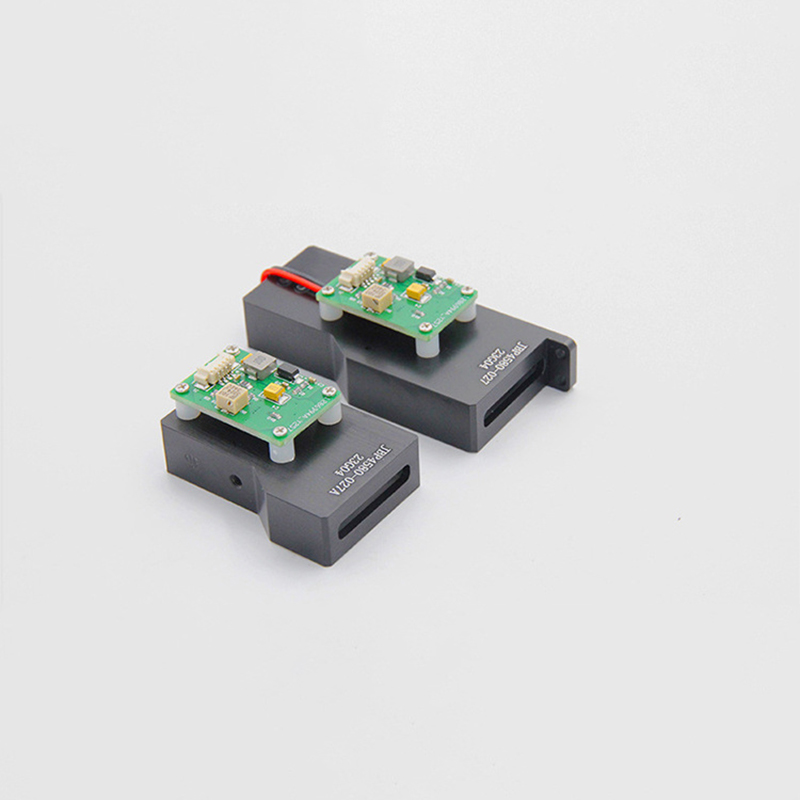

Product Display:

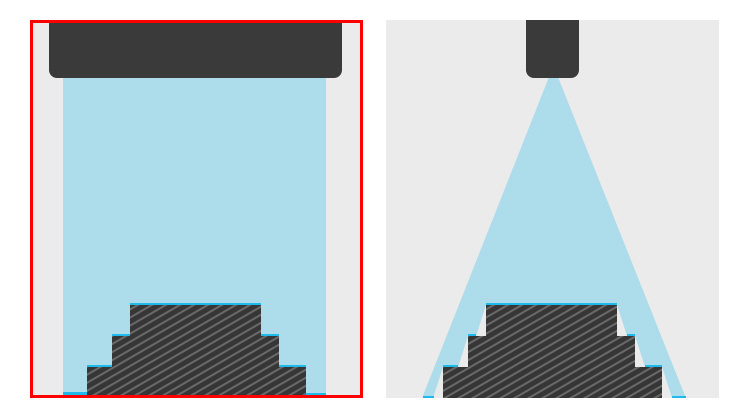

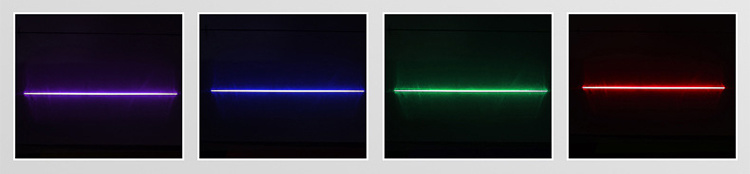

Characteristics of Parallel Light Line Laser:
The light outlet emits a linear laser to better inspect the gap structure of complex parts.
Our Service:
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm /Customizable etc. | ||||
| CDRH Class | Class1/Class2/Class3R/Class3B/Class4 | ||||
