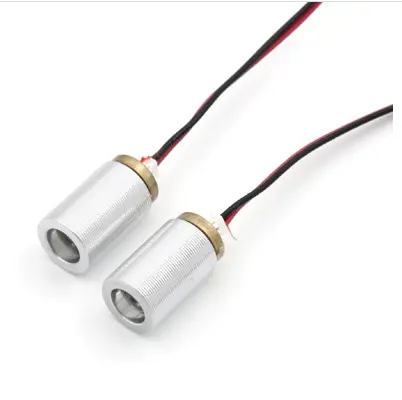

532nm Green Dot Laser Module for Stage Lamp/Lawn Lamp/Laser Positioning
The 532nm 15mW green laser module measures 13×22.5mm, operates at 2V, and is compact in size, capable of continuous operation for extended periods.
At a distance of 10 meters, the spot size is 20mm. It is easy to install (with multiple angle options available). The 532nm green laser module features a clear beam, high brightness, and a sharp spot.
Its compact and sturdy structure ensures good stability. It is suitable for applications such as indication and positioning, lawn lights, and stage lights.

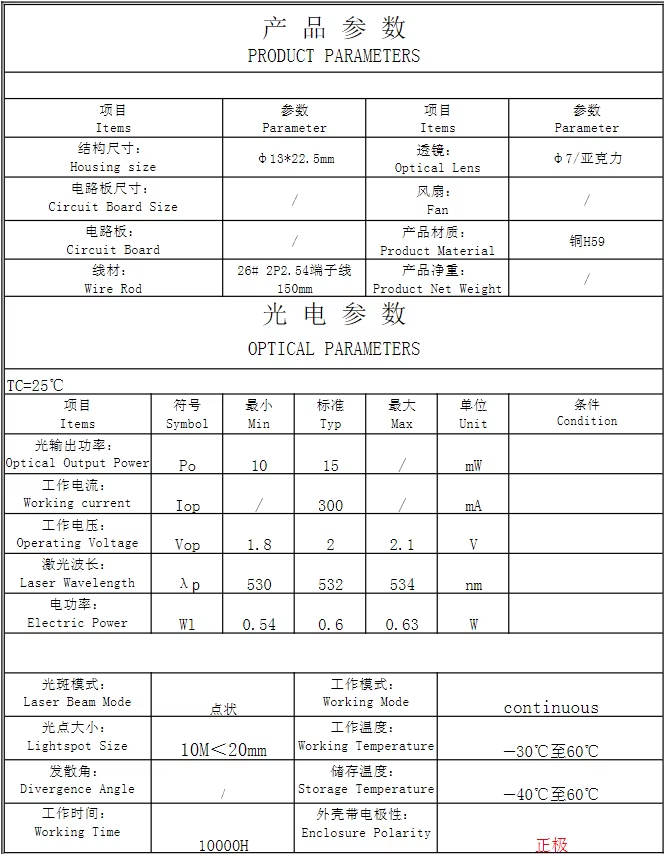

Core Specification :
| Wavelength |
532nm |
| Output Power |
15mW |
| Working Voltage |
2V |
| Beam Mode |
Dot beam |
| Beam Size |
≤20mm @10M |

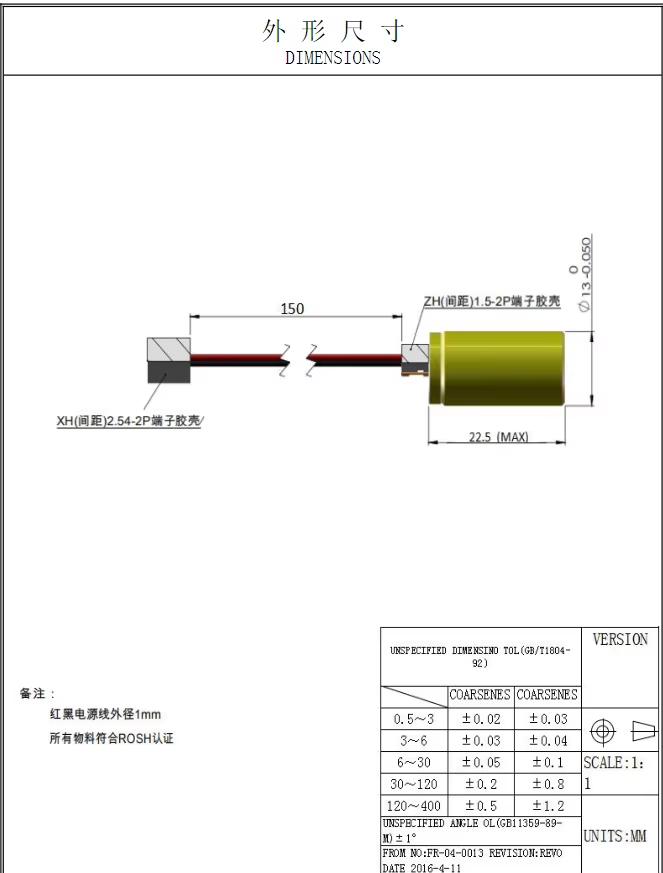

| Housing Size |
13*22.5mm (Customizable) |
| Lifespan |
10,000 hours |

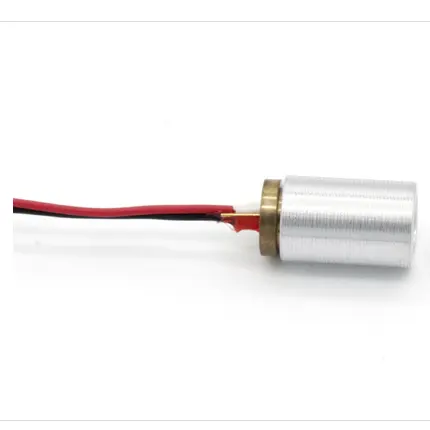

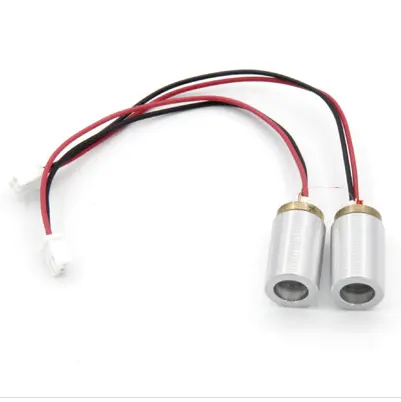

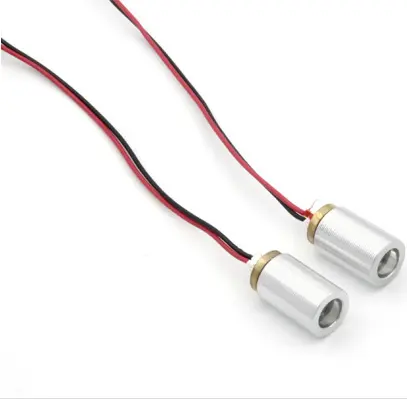

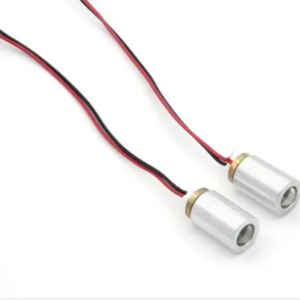

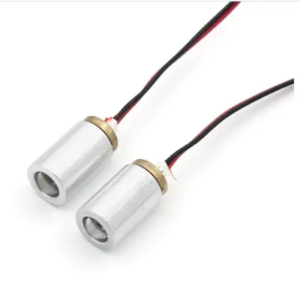

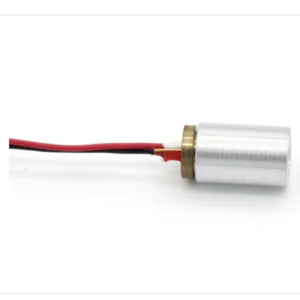

Product Display :
Our Services :
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
| Item |
Parameter |
| Wavelength |
375-405nm |
425-488nm |
515-520nm |
635-670nm |
780-980nm |
| Single Diode Module Optical Power |
20mW-3W |
20mW-3W |
10mW-1.6W |
5mW-2.5W |
5mW-75W |
| Multi Diodes Module Optical Power |
3W-200W |
6W-500W |
1.6W-50W |
2.5W-30W |
75W-100W |
| Operating Voltage |
3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. |
| Beam Mode |
Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. |
| Fan Angle Options of the Line Beam |
5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. |
| Optical Lens |
Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. |
| Dimension |
4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. |
| CDRH Class |
class1/class2/class3R/class3B/class4 |
