This 5W Optical Power Laser Head 450nm 5W Blue Laser Module is a professional-grade core component for laser carving engraving, integrating a high-performance 450nm blue laser and a dedicated optical power head. It delivers concentrated 5W optical power for fast, precise material ablation and detail rendering, suitable for both hobbyist craft customization and small-batch industrial engraving. The integrated laser head design simplifies integration into laser engravers, enabling efficient laser carving on diverse materials while ensuring stable performance and easy operation.

Core Technical Advantages for Laser Carving Engraving

– 450nm Blue Laser Material Adaptability: The 450nm wavelength boasts strong absorption by most non-metals and high-reflective metals. It excels in laser carving and engraving on wood, acrylic, leather, paper, painted metal, aluminum, and copper—solving the problem of poor absorption of traditional infrared lasers on light-colored or reflective materials.

– 5W High Optical Power for Efficient Engraving: With stable CW output, the 5W optical power enables fast material removal and deep carving. It achieves engraving speeds up to 800mm/s for surface patterns and carving depths up to 2mm on wood/acrylic, shortening processing time by 30% compared to 3W modules—ideal for high-efficiency laser carving tasks.

– Integrated Optical Power Head Design: The kit includes a precision optical head with coated focus lenses (focal length 50mm/adjustable optional) and a heat-dissipating housing. It ensures a minimum spot size of 40*400um, delivering crisp lines, clear textures, and no edge blurring—critical for intricate laser engraving of patterns, text, or QR codes.

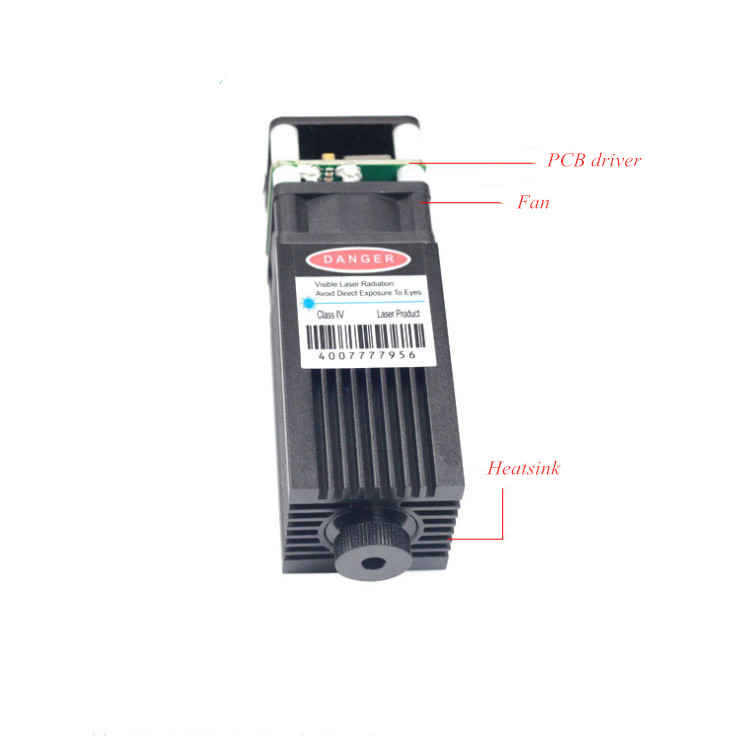

– Stable Performance for Long-Term Carving: Adopts a high-quality semiconductor laser diode and a dual-cooling system (aluminum heatsink + silent fan). It supports 8-hour continuous laser carving engraving (service life >10,000 hours) and resists voltage fluctuations (12V DC) and mechanical vibration—adapting to home workshops and small industrial production lines.
