12V Adjustable 450nm 1.6W Blue Laser Module for Laser Cutting Engraving

Product Type: Blue Laser Engraving Module

Wavelength: 450nm

Output Power:1.6W

Housing Size: 33*33*55mm (Customizable)

Working Voltage: 12V

The Focal Length: ≤1mm@100mm/adjustable

Application: Laser engraving and cutting, 3D printing

12V Adjustable 450nm 1.6W Blue...

12V Adjustable 450nm 1.6W Blue Laser Module for Laser Cutting Engraving

Tailored for desktop laser engraving systems, this high-performance blue diode laser module combines precision and power to elevate your creative and crafting projects. Operating at a 450nm blue wavelength with a robust 1.6W output power, this blue diode laser module delivers intense, focused energy ideal for detailed engraving on a variety of materials, including wood, acrylic, leather, paper, and certain metals.​

The 450nm 1.6w laser module has heat sink, which has strong heat dissipation performance and can effectively ensure the stability and service life of the product. The product is made of pure copper, which can quickly cool the laser diode.

A key highlight of that 1.6W blue laser module is its focusable design, allowing users to adjust the laser beam’s focal point with precision.

This flexibility ensures crisp, high-resolution engravings—from intricate patterns and text to fine art—by optimizing energy concentration for different material thicknesses and surface textures.​

1.6W Blue Laser Module

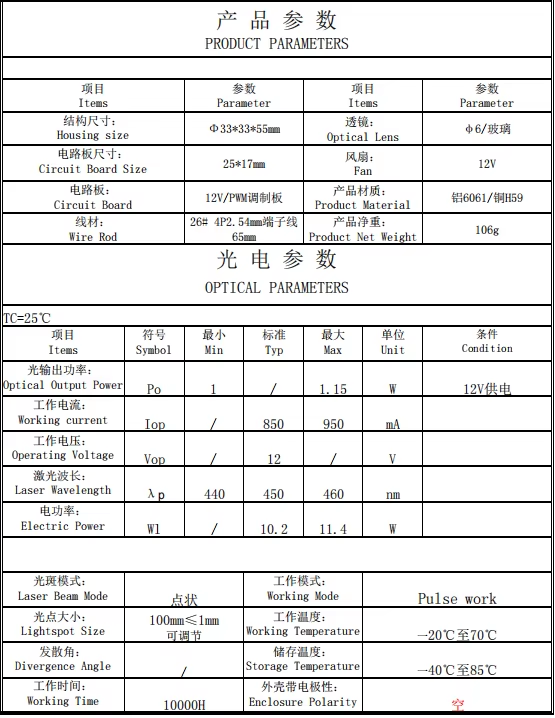

Core Specification :

Wavelength 450nm
Output Power 1.6W
Working Voltage 12V
Beam Mode Dot
The Focal Length ≤1mm@100mm/adjustable

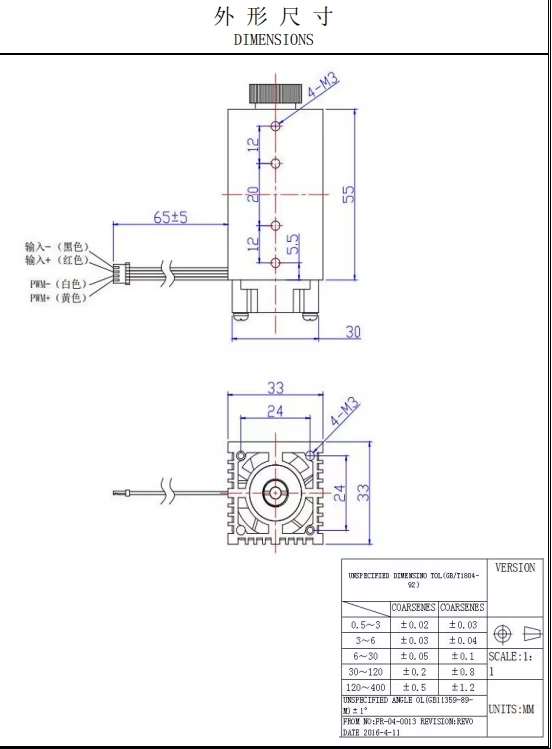

Housing Size 33*33*55mm (Customizable)
Lens Glass
Lifespan  10,000 hours

1.6W Blue Laser Module 1.6W Blue Laser Module

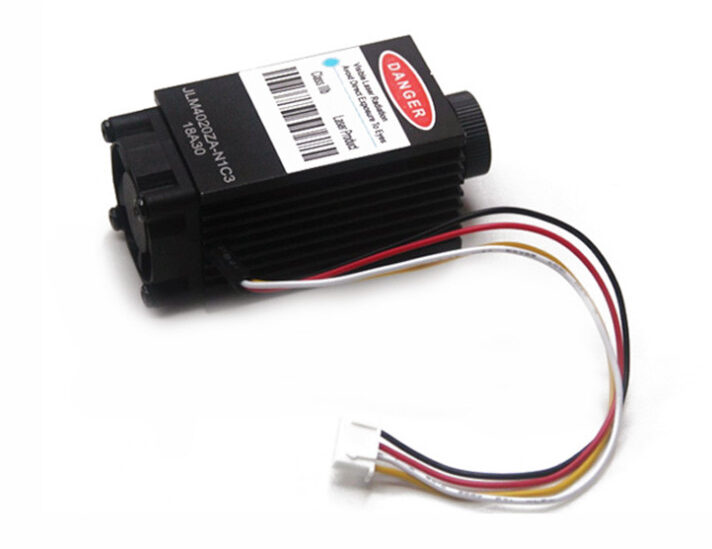

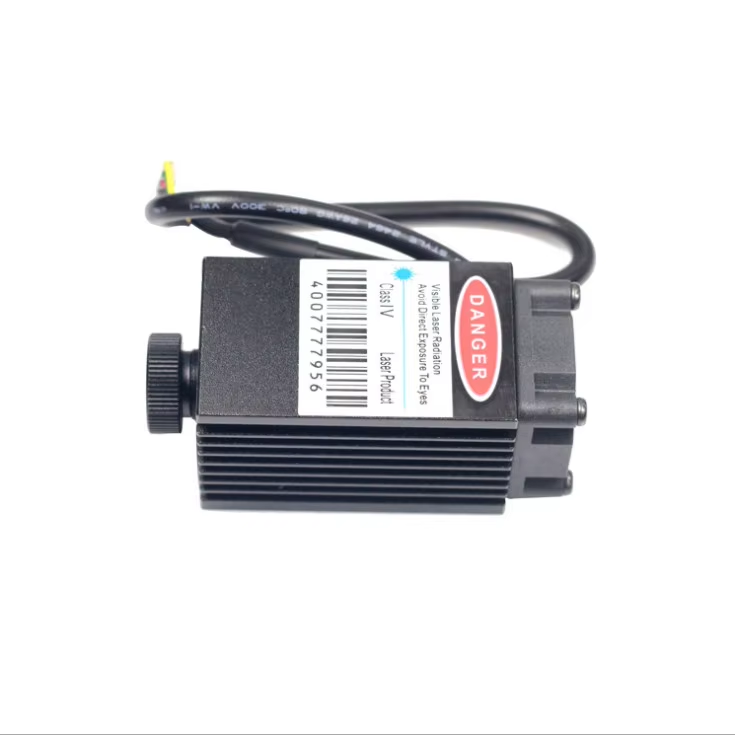

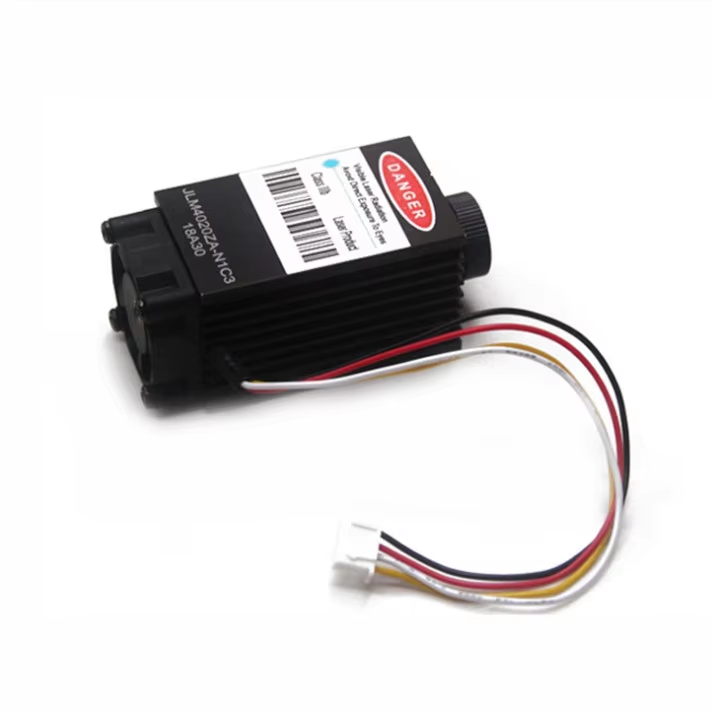

Product Display :

1.6W Blue Laser Module

1.6W Blue Laser Module

1.6W Blue Laser Module




Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3R/class3B/class4
