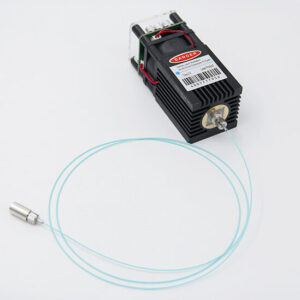

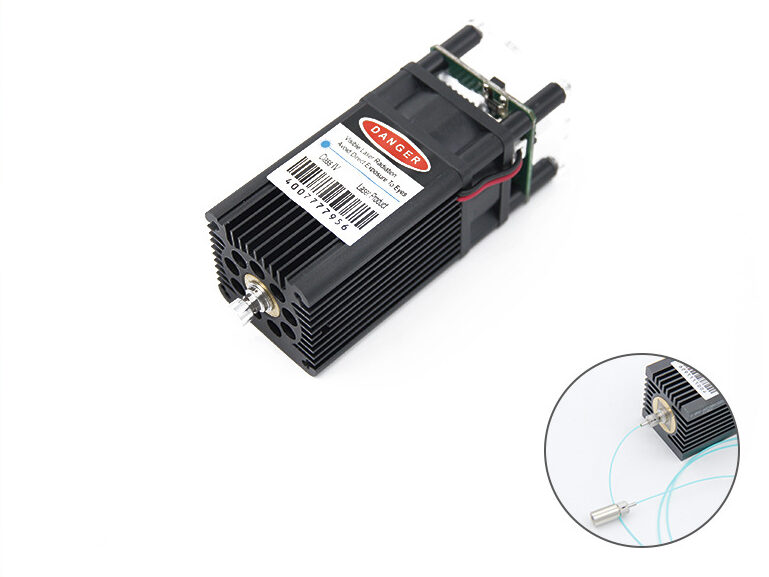

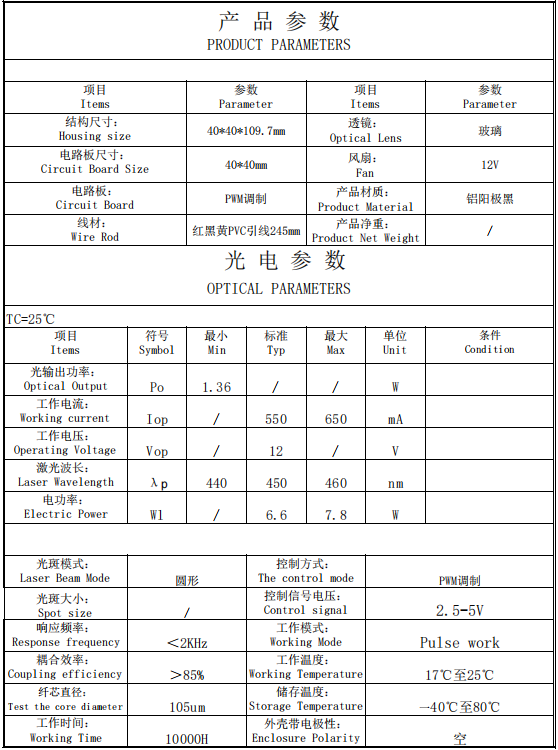

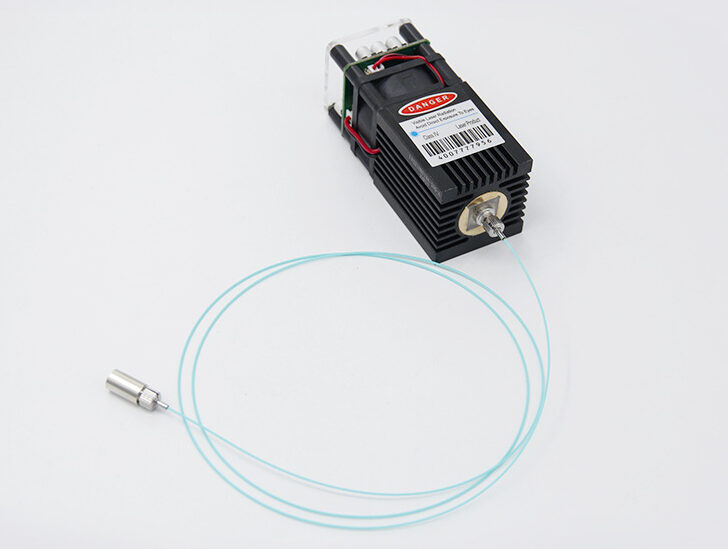

The 450nm 1.3W high-power fiber-coupled laser module has high beam quality, good transmission stability, uniform spot and concentrated energy density distribution, which can realize long-distance transmission. The response frequency of PWM control signal is less than 2KHz. 12V power supply.

The core diameter of optical fiber is 105um, and the optical fiber interface can be customized with FC/SMA905, with high green brightness and wide application range, which can be used in fluorescence detection, criminal investigation, medical treatment, scientific research, garden lighting, industrial processing and so on.

The coupling efficiency of fiber-coupled laser is more than 85%, which reduces the loss of light beam in transmission, has higher energy utilization rate, small volume and light weight.
