High Power TO5 9mm 435nm 6W Blue Laser Diode GH04C06W9G

The High Power TO5 9mm 435nm 6W Blue Laser Diode GH04C06W9G—a cutting-edge single-emitter light source optimized for high-intensity industrial applications. Leveraging Sharp’s advanced multi-mode laser diode technology, this 435nm blue wavelength device delivers 6W CW peak power in a compact TO5 9mm CAN package, combining exceptional brightness, superior material absorption, and reliable performance for demanding industrial, scientific, and specialty applications.

Core Advantages

Ultra-High Power 435nm Wavelength: Exceptional Material Interaction

• 435nm (±5nm) blue-violet wavelength offers 4–10x higher absorption on copper, gold, aluminum, and other non-ferrous metals compared to 1064nm IR lasers.
• 6W CW output power (at Tc=25°C) enables rapid material processing with minimal thermal damage.
• Multi-mode TE oscillation ensures uniform energy distribution for consistent results across large areas.

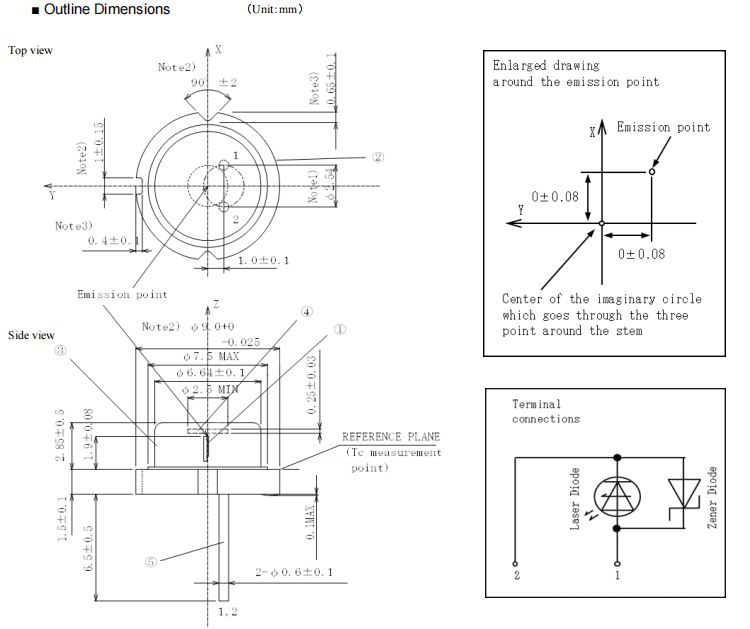

Compact TO5 9mm CAN Package: Space-Efficient Integration

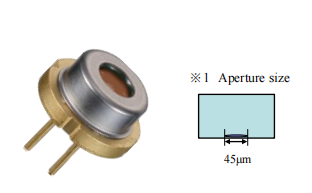

• Aperture size: 45μm emitter width for precise beam control

Key Applications

1. Industrial Material Processing

• Laser vaporization and thin-film deposition for semiconductor manufacturing.
• High-speed marking and engraving on metals, plastics, and ceramics.
• Precision cutting of thin materials (≤1mm) with minimal heat-affected zone.
• Soldering and welding of copper and gold components (4–10x faster than IR lasers).

2. Scientific Research & Instrumentation

• Material science experiments (vaporization kinetics, surface modification).
• Fluorescence excitation source for biological and chemical analysis.
• High-power light source for spectroscopy and interferometry.
• Prototype development for next-generation laser systems.

3. Specialty Manufacturing

• Medical device processing (sterile marking, precision cutting).
• 3D printing of metal and polymer materials.
• Electronic component repair and rework.
• Display technology (backlighting, projection systems).

4. Automation & Robotics

• Integrated laser systems for automated production lines.
• Machine vision and alignment systems require high-intensity blue light.
• Quality control inspection with high contrast illumination.

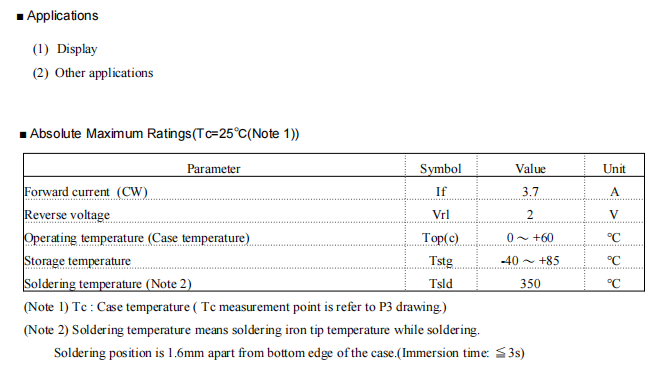

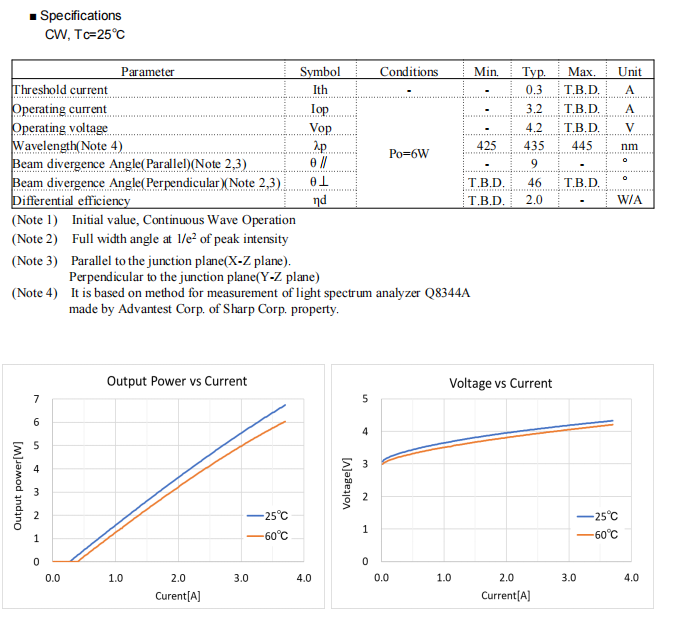

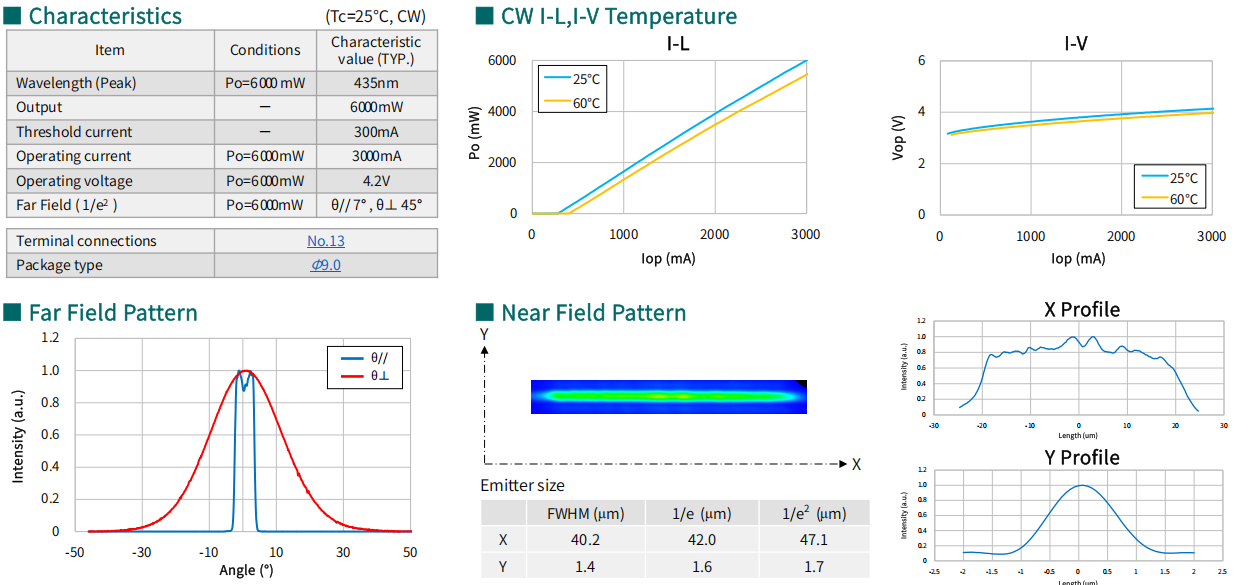

Core Specification:

Our Services:

BU-LASER has other Laser diodes from 375nm to 1064nm as below, and also offers professional OEM@ODM service for laser modules !
