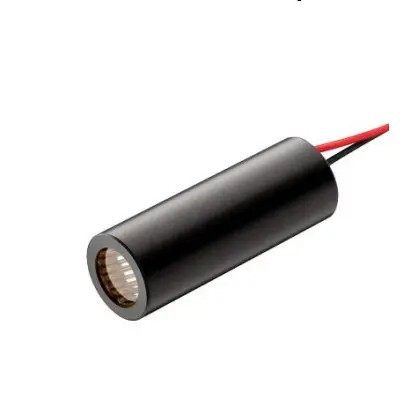

IR 808nm 60mW Line Laser Module for Robot Vacuum Cleaner Obstacle Avoidance

The IR 808nm 60mW Line Laser Module, a dedicated core component optimized for robot vacuum cleaner obstacle avoidance systems. Integrating 808nm infrared wavelength’s anti-interference performance, 60mW stable line output, compact modular design, and low-power consumption, it delivers precise, non-visible laser line scanning for reliable obstacle detection and path planning in household cleaning robots.

Core Advantages

808nm IR Wavelength for Unobtrusive Obstacle Avoidance
Invisible infrared laser avoids visual glare and user distraction in home environments; the 808nm wavelength is highly compatible with robot vacuum optical sensors, enabling accurate recognition of small obstacles (e.g., charging cables, furniture legs, pet toys) and complex terrain (e.g., carpet edges, floor gaps) with zero false triggers.

60mW Stable Line Output for Precise Scanning
CW mode output with ≤±2% power fluctuation projects a uniform, high-contrast infrared line (line width ≤5mm@4m); ensures consistent obstacle contour scanning within 0.1–4m detection range, supporting real-time path adjustment for robot vacuums and reducing collision risks.

Compact Design & Easy Integration

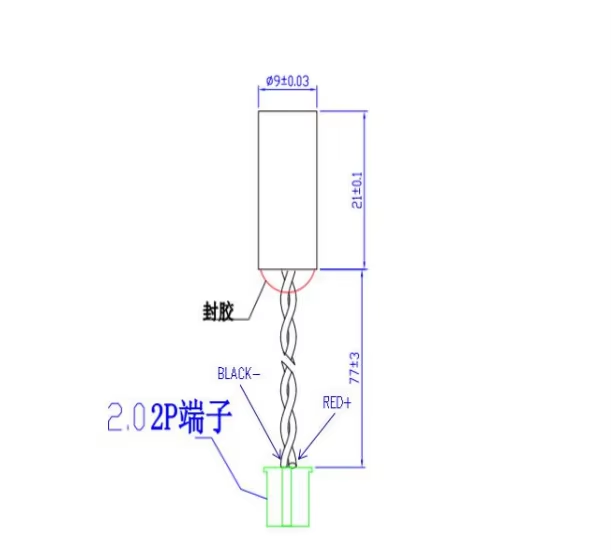

Miniaturized housing (9*21mm size, weight ≤7g) fits seamlessly into the limited internal space of robot vacuums; standard 3-5V DC low-voltage input enable plug-and-play integration with mainstream robot vacuum control systems, no complex calibration required.

Key Applications

Primary for robot vacuum cleaner obstacle avoidance and path planning; also applicable to small service robots, smart sweeping robots, and automated guided vehicles (AGVs) for indoor environment navigation and obstacle detection.

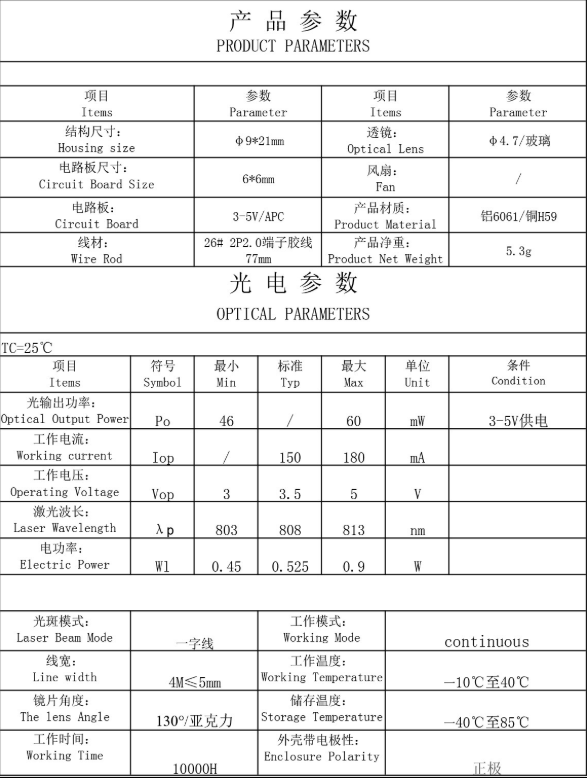

Core Specification

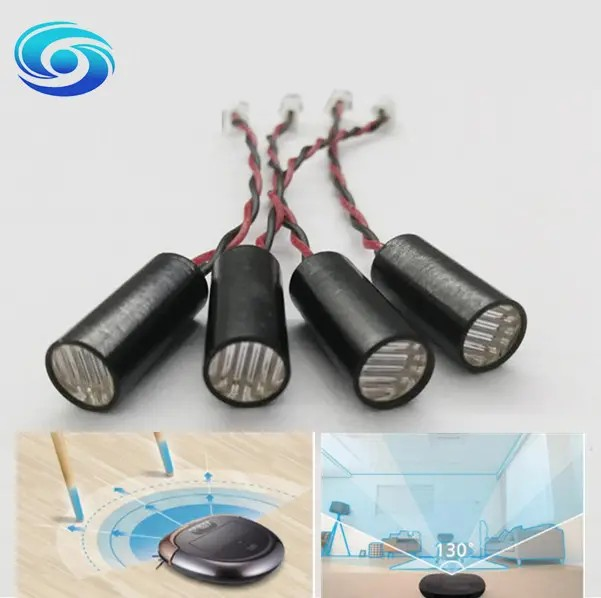

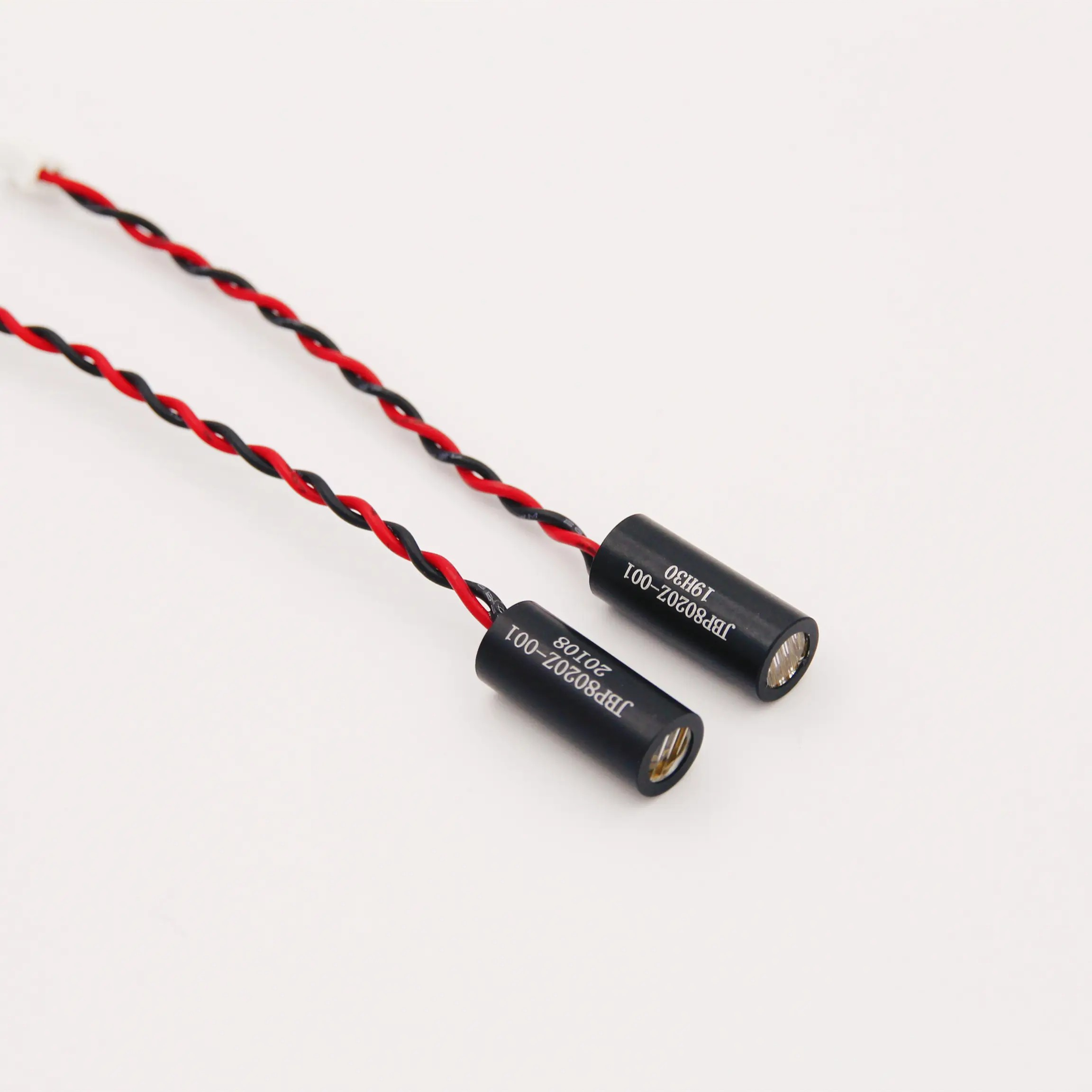

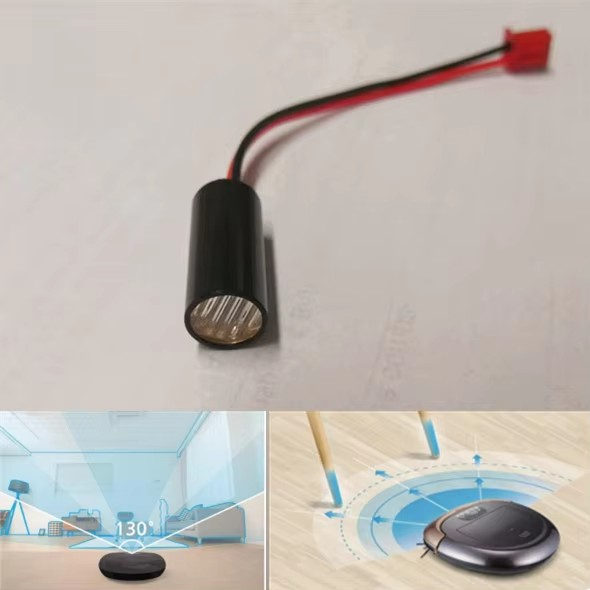

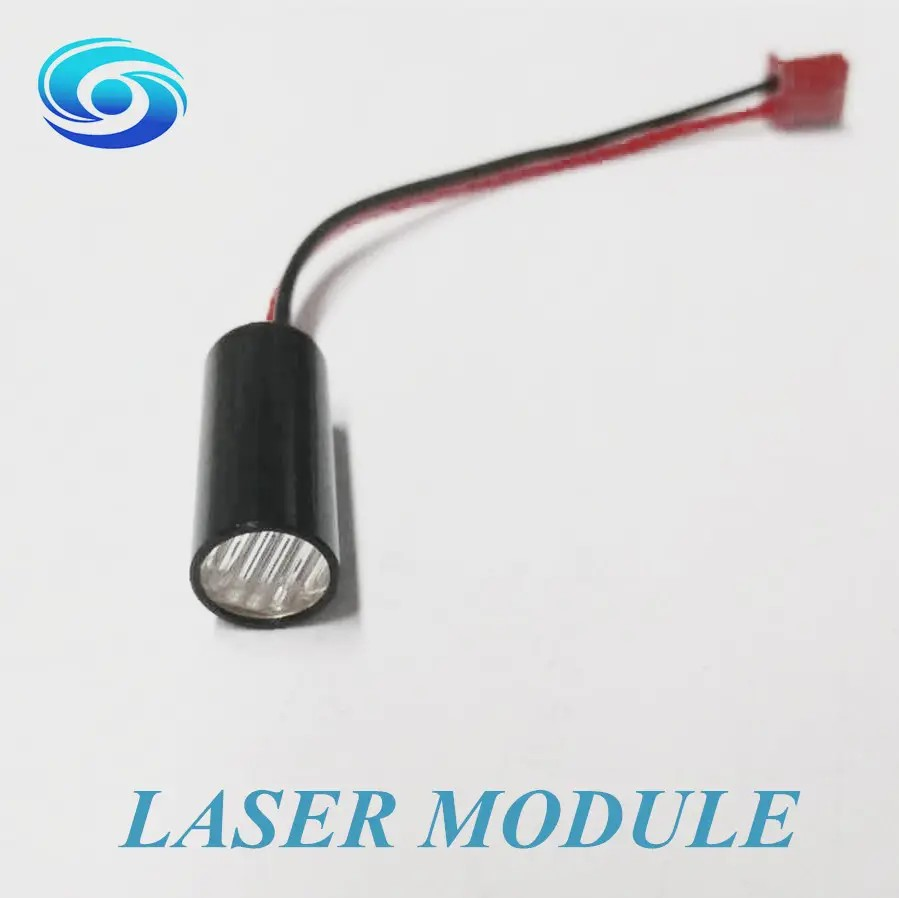

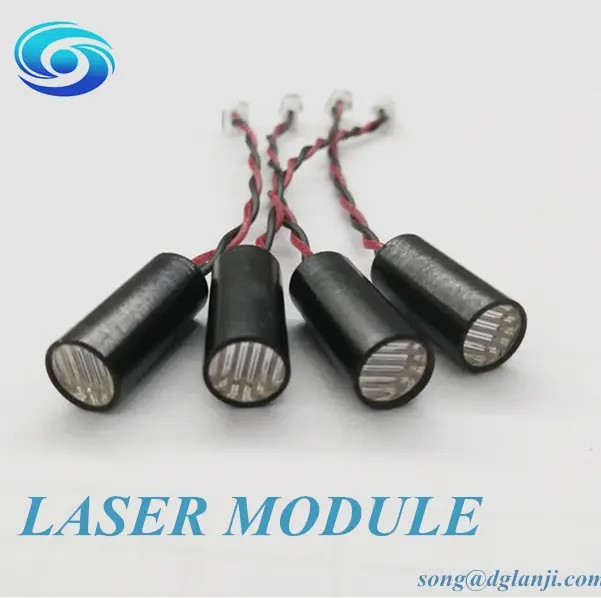

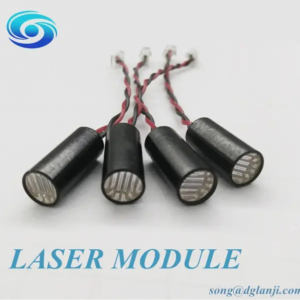

Product Display
