High Power 850nm 1W Infrared Laser Module for Mole& Tattoo Removal

Product Type: 850nm 1W Dot Laser Module

Wavelength: 850nm

Output Power: 1W

Housing Size: 13.5*26mm (Customizable)

Working Voltage: 1.8V

Dot Beam Size: ≤1mm @50mm

Application: Laser beauty, laser nevus removal, freckle removal, tattoo removal, skin rejuvenation, laser pointing, laser positioning, and so on.

High Power 850nm 1W Infrared L...

High Power 850nm 1W Infrared Laser Module for Mole& Tattoo Removal

This High Power 850nm 1W Infrared Laser Module is a professional-grade core component exclusively engineered for mole & tattoo removal in aesthetic medicine, leveraging 850nm infrared laser’s deep skin penetration and 1W high power to achieve efficient, targeted pigment decomposition—becoming a key part of professional  mdeical beauty laser devices for safe, precise spot treatment.

Core Technical Advantages for Mole & Tattoo Removal

850nm Infrared Wavelength Optimization: 850nm infrared laser penetrates 1-5mm into the dermis layer, directly targeting melanin/ink pigment particles (avoiding damage to epidermis). This 850nm 1W laser module absorbs efficiently by various pigment types (black, brown, red tattoo ink; mole melanin), ensuring thorough pigment decomposition without skin irritation.

1W High Power for Efficient Treatment: The 850nm infrared laser module with stable 1W output delivers focused laser energy to break down large pigment clusters into micro-particles, which are then metabolized by the body’s lymphatic system. This shortens treatment cycles—3-5 sessions for small moles, 5-8 sessions for medium tattoos—outperforming low-power modules in efficiency.

Precise Spot & Targeted Treatment: Equipped with precision optical lenses, it generates a 0.1-0.5mm spot size. The narrow beam avoids affecting surrounding healthy skin, ensuring mole & tattoo removal is precise—critical for small moles or fine-line tattoos.

Aesthetic Medicine Scene Adaptability

Mole Removal: Ideal for congenital moles, acquired melanocytic nevi, and flat pigmented spots. The 850nm laser’s targeted absorption avoids pigment residue, ensuring clean removal while preserving skin texture.

Tattoo Removal: Effective for professional/permanent tattoos (black, blue, green, red ink) and semi-permanent makeup (eyebrows, lip liner). It breaks down ink particles of different sizes, adapting to amateur/small tattoos or large-area professional tattoos.

Multi-Pigment Compatibility: Works with common pigment types in aesthetic medicine, solving the problem of incomplete removal of stubborn pigments (e.g., deep-rooted mole melanin, red tattoo ink) that traditional lasers struggle with.

850nm 1W laser module

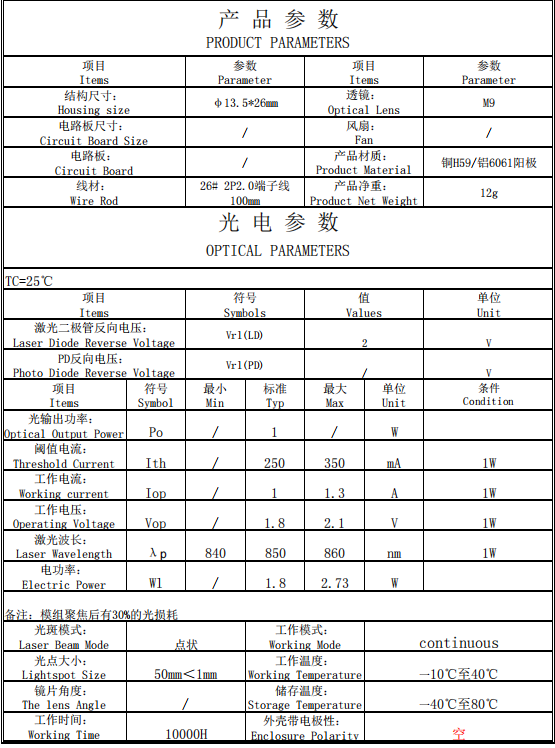

Core Specification :

Wavelength 850nm
Output Power 1W
Working Voltage 1.8V
Beam Mode Dot beam
Beam Size ≤1mm @50mm

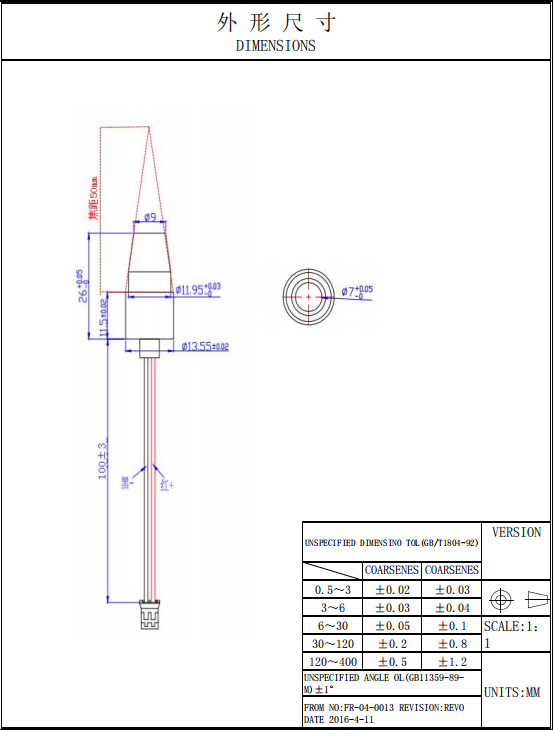

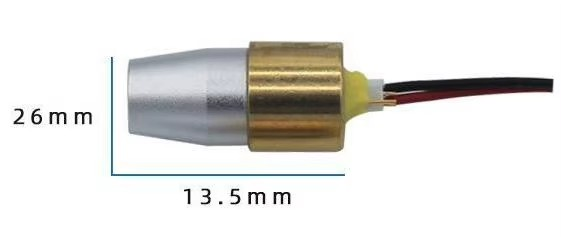

Housing Size 13.5*26mm (Customizable)
Lifespan  10,000 hours

850nm 1W laser module 850nm 1W laser module

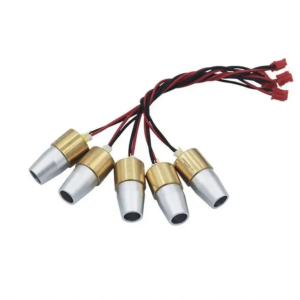

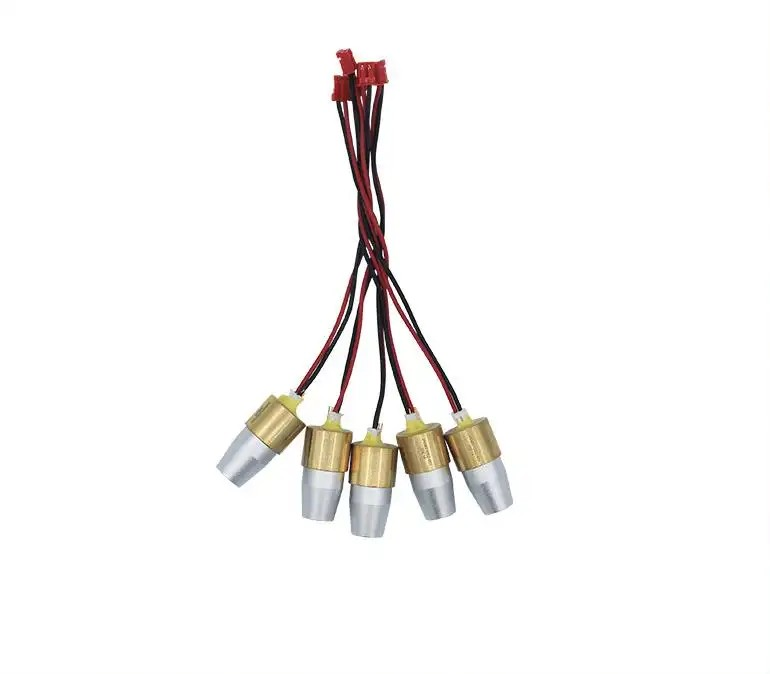

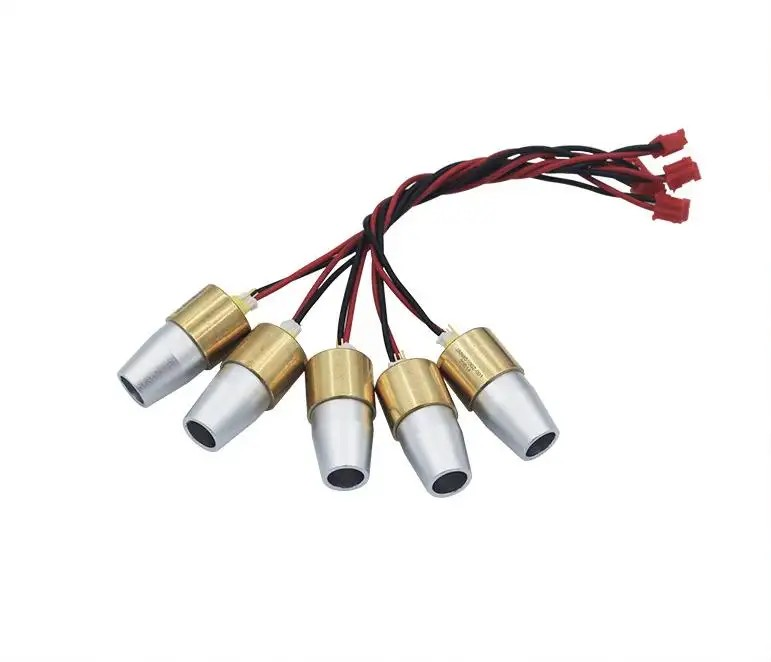

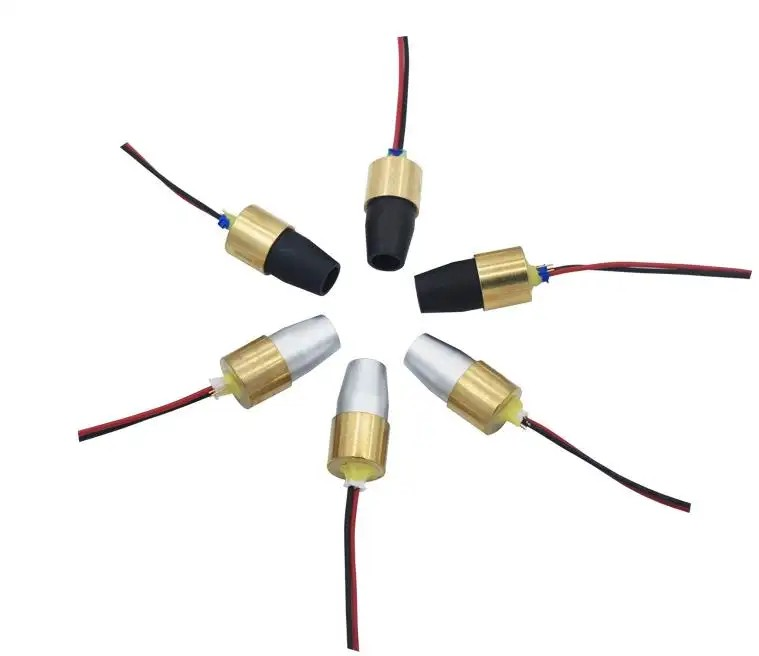

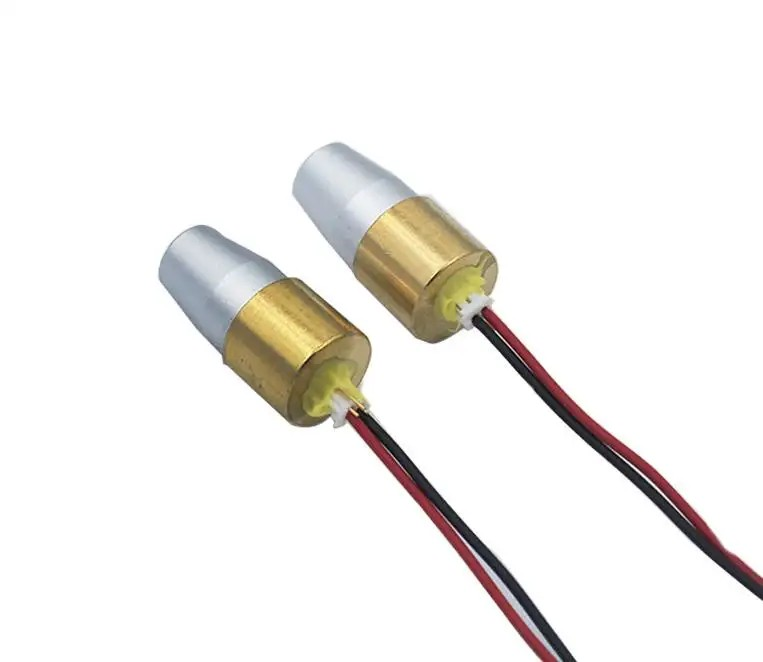

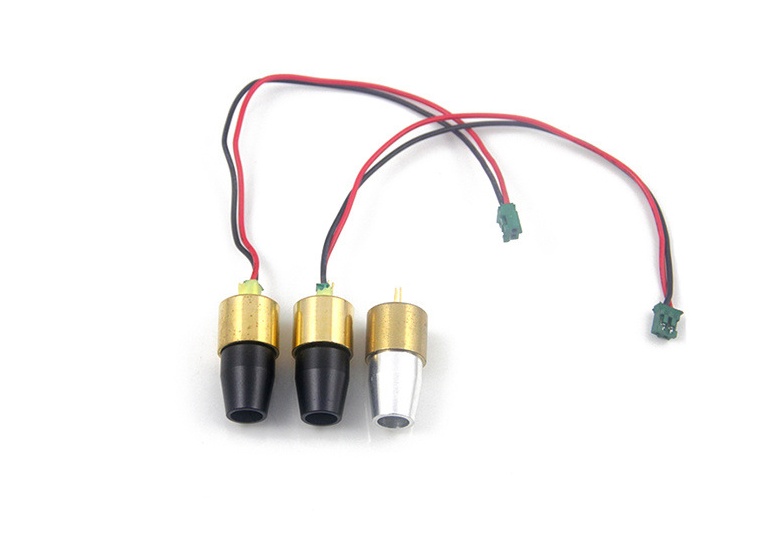

Product Display :

850nm 1W laser module

850nm 1W laser module

850nm 1W laser module






Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3R/class3B/class4
