12mm 650nm 5mW Collimated Red Laser Module
This is 650nm 5mW Collimated Red Laser Diode Module with 12mm diameter and can get a collimated beam as 7mm spot size at a 30m working distance. This high-quality laser module is designed for precision aiming and positioning applications.
With its compact size and powerful 5mW output, this red laser module is perfect for tasks that require pinpoint accuracy. The 7mm spot size ensures a focused beam of light, making it ideal for tasks that require detailed targeting.
The 30m working distance allows for flexibility in a variety of applications, whether it be in industrial settings, construction projects, or scientific research. The laser module also features a horizontal level for added convenience and accuracy.
Trust in the reliability and performance of this 650nm 5mW Red Laser Diode Module for all your precision aiming and positioning needs.
Core Specification:
| Wavelength | 650nm |
| Output Power | 2mW |
| Working Voltage | 3-5V |
| Beam Mode | Dot beam |
| Beam Size | ≤7mm @30m / ≤30mm @100m |

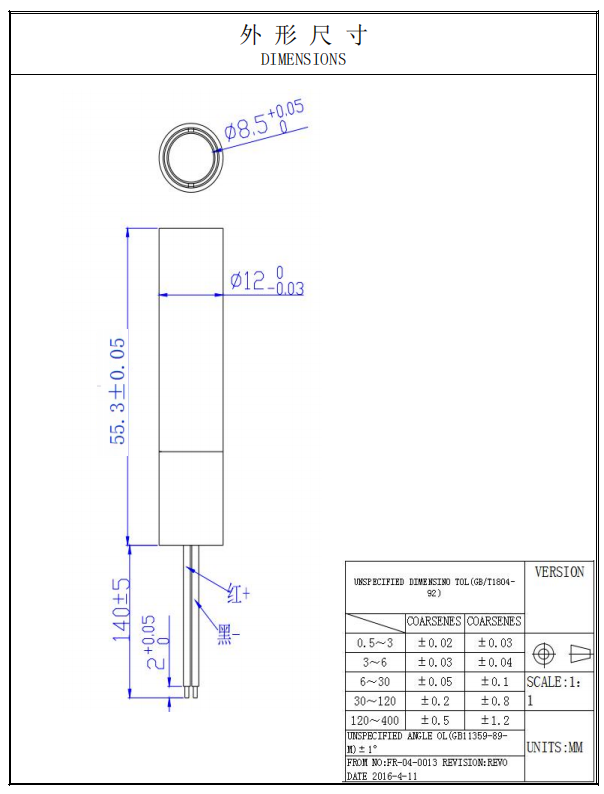

| Housing Size | 12*55.3mm (Customizable) |
| Lens | Optical glass lens |
| Lifespan | > 10,000 hours |

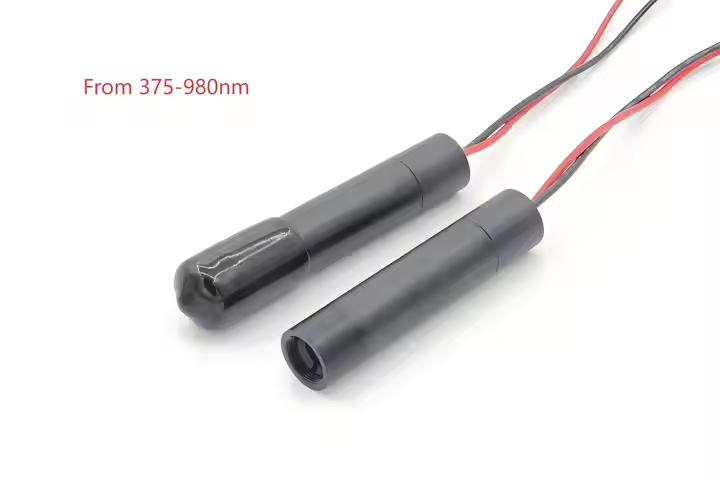

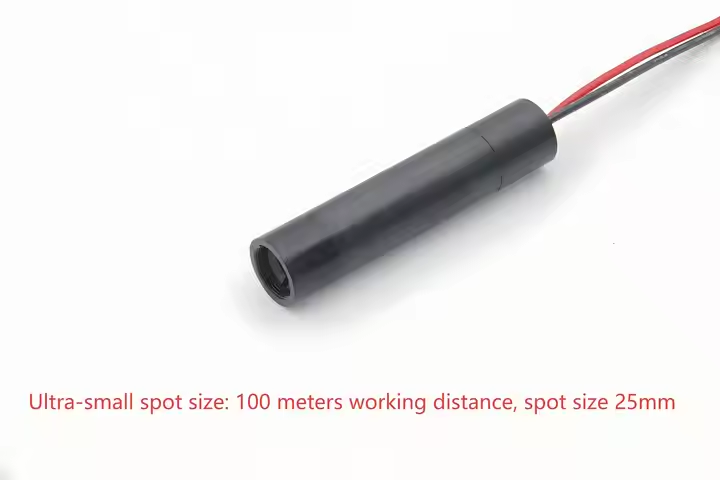

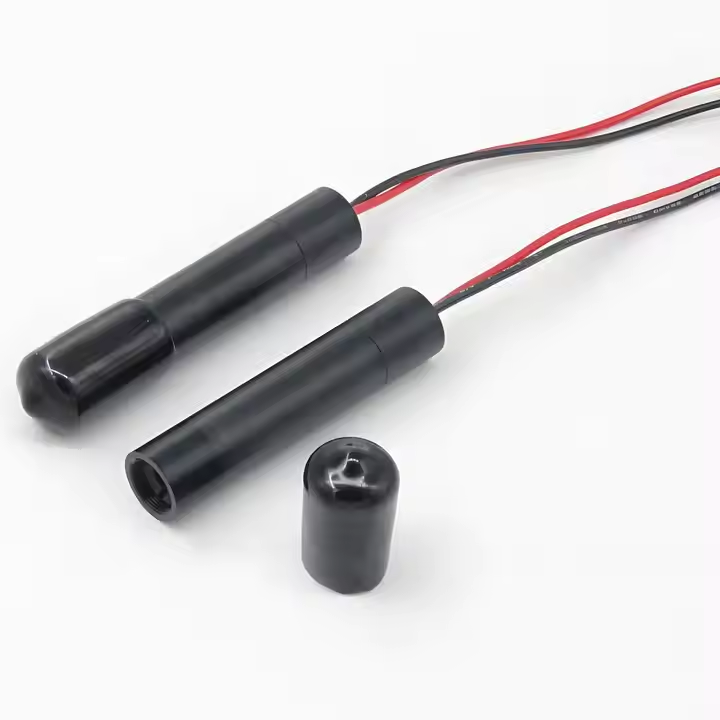

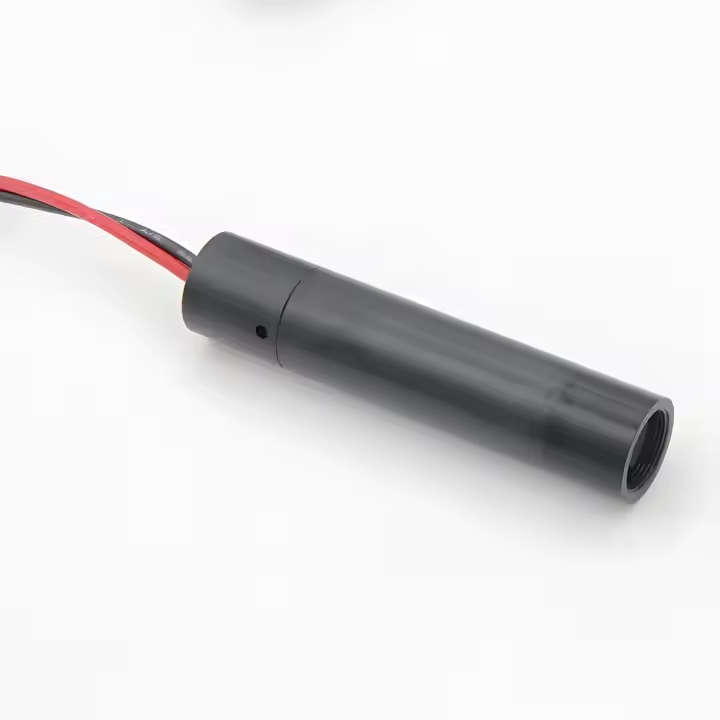

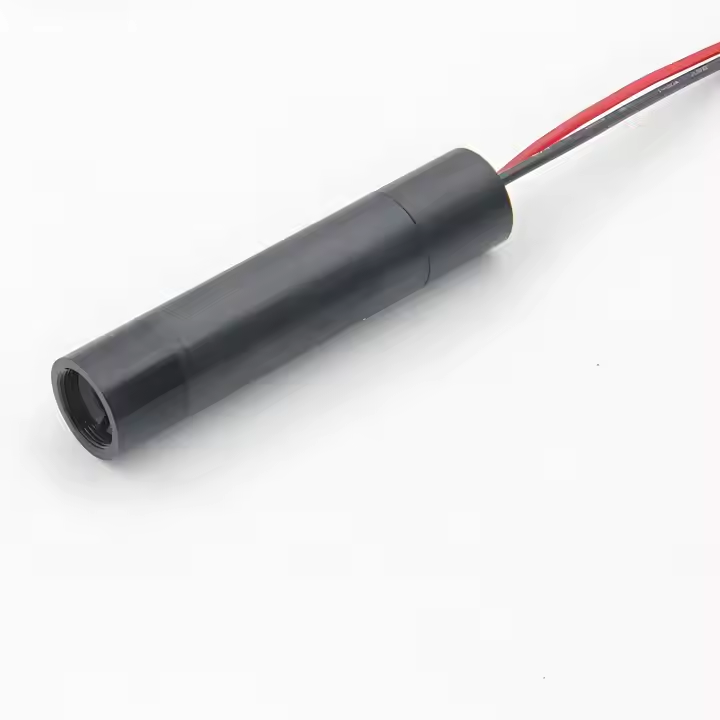

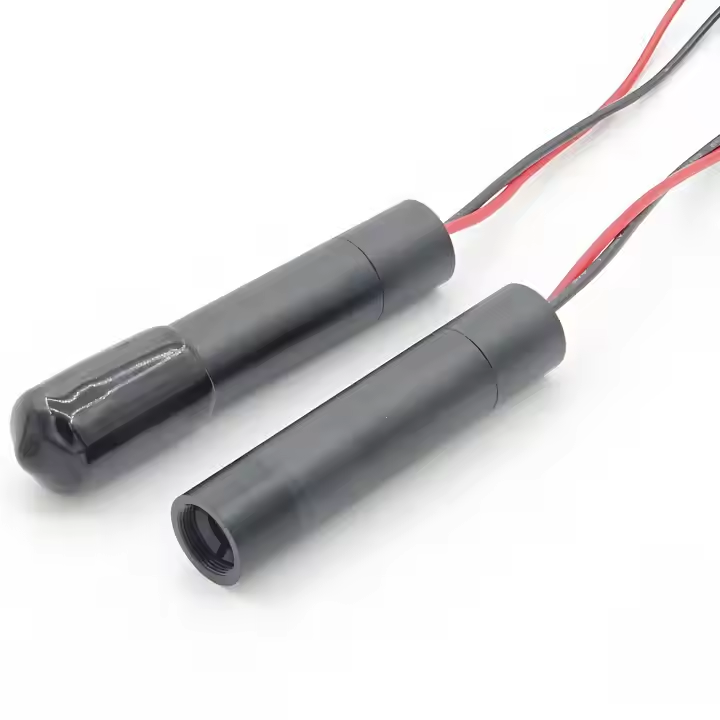

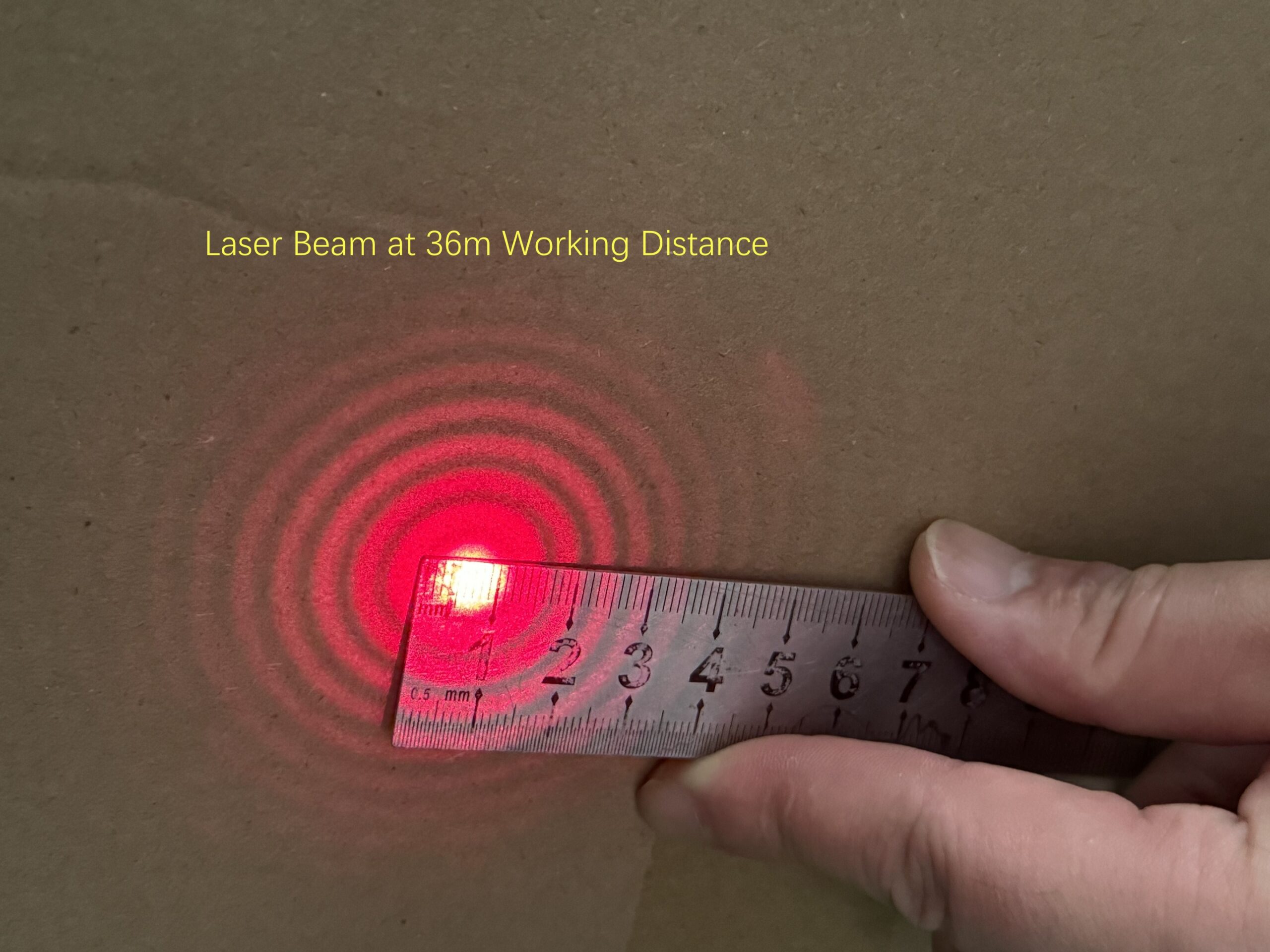

Product Display:
