3D Scanning Laser 450nm 1.6W Blue 7+7+1 Multi-Line Laser Module
This is a high-stability industrial 3D scanning dedicated multi-line blue laser module, using 450nm wavelength, 1.6W optical power, structured as 7 horizontal lines + 7 vertical lines + 1 central positioning dot (7+7+1 multi-line grid laser), specially designed for 3D profilometry, machine vision scanning, volume measurement, robot guidance and industrial inspection.
Key Features
450nm blue laser
Higher contrast and anti-interference ability than red laser in metal, high-reflective surface and dark object scanning, not easy to overexposure, more stable point cloud imaging.
1.6W high power
Strong anti-environmental light ability, can be used in bright workshop, outdoor semi-outdoor 3D scanning, long working distance.

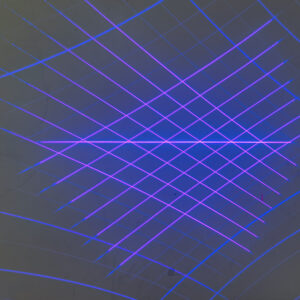

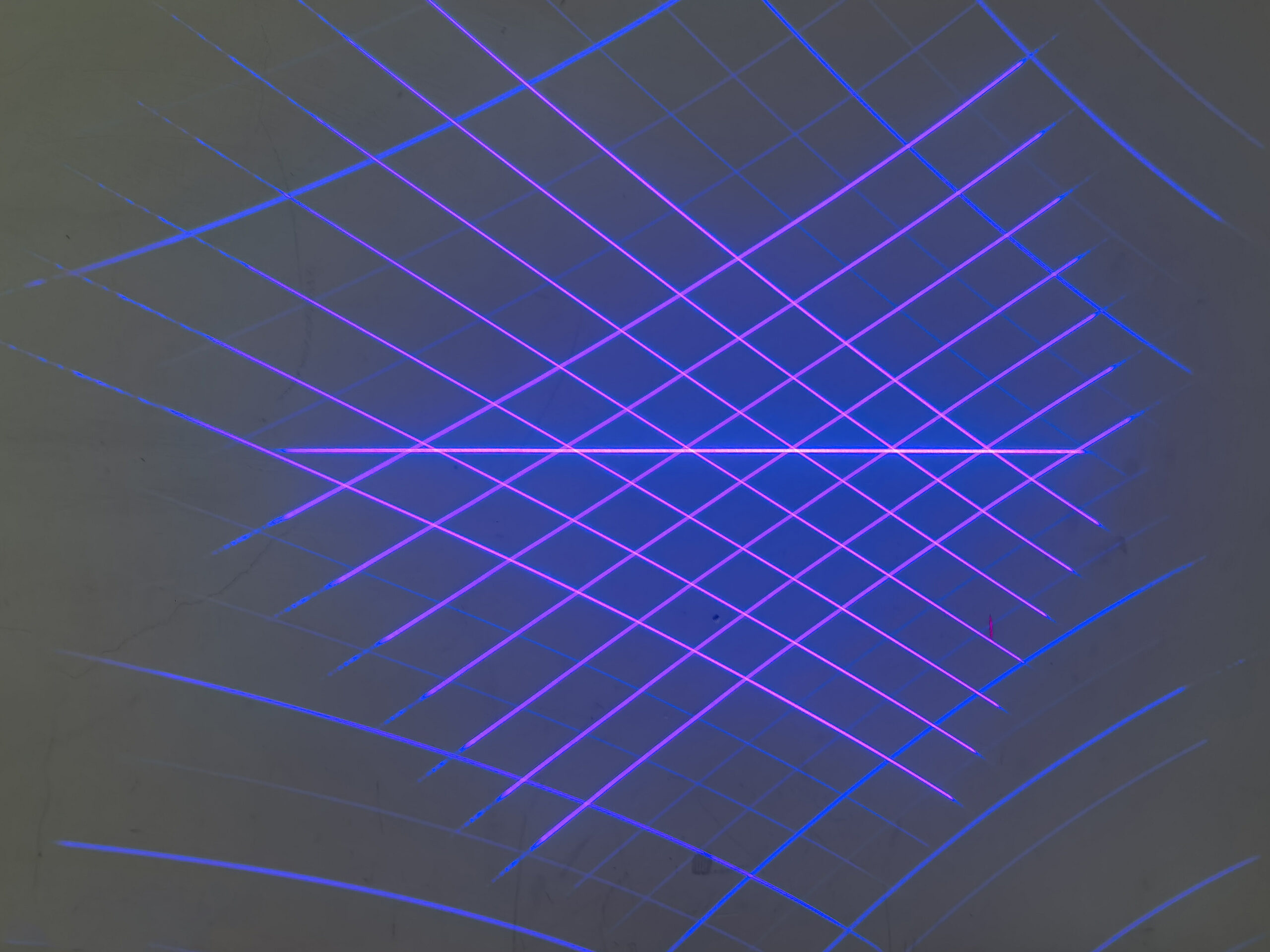

7+7+1 grid structure
7 horizontal lines + 7 vertical lines form a dense rectangular grid, with 1 center bright line for positioning and calibration.
Suitable for high-speed 3D contour scanning, improving point cloud density and reconstruction accuracy.
Uniform line width & good linearity
Optimized Powell lens and DOE diffractive optical elements, lines are straight, uniform brightness, no obvious bright spots, matching vision algorithm.
Long-term stability
Built-in PWM control driver, stable power output, suitable for 24-hour industrial equipment.
Typical Applications
- Industrial 3D scanner / handheld 3D scanner
- Machine vision size measurement, volume scanning
- Robot 3D positioning, obstacle avoidance, path planning
- Reverse engineering 3D reconstruction
- Logistics parcel volume measurement
- High-precision surface defect detection

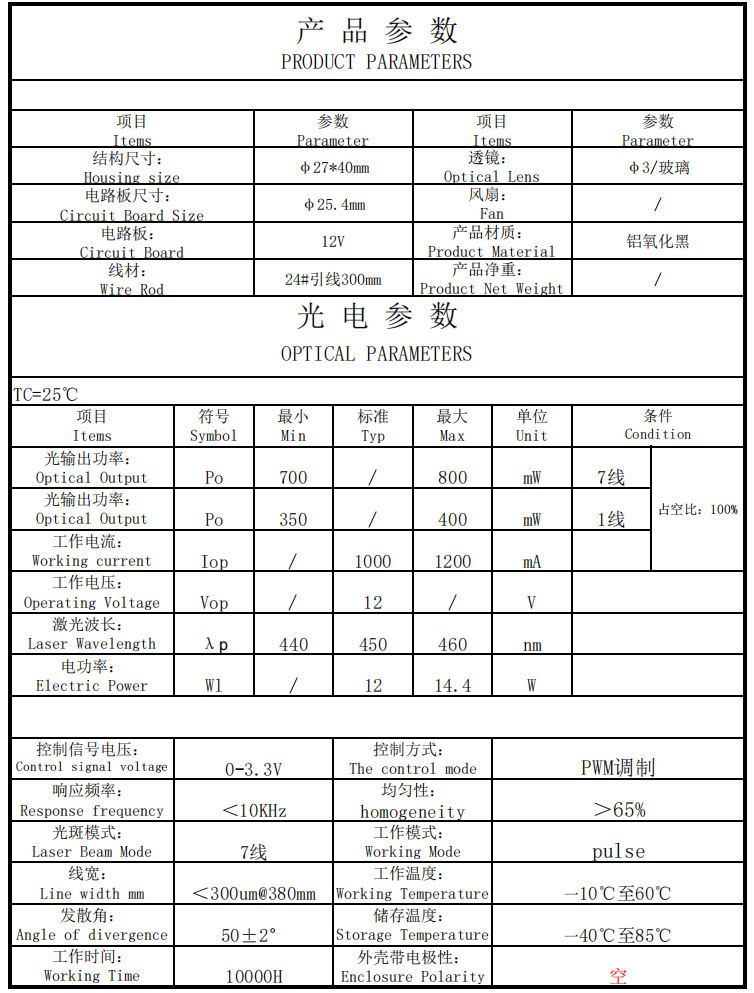

Core Specification:
| Wavelength | 450nm |
| Output Power | 1.6W |
| Working Voltage | 12V |
| Beam Mode | Multi-lines beam, 7+7+1 laser lines |
| Beam Size | line width≤0.3mm @380mm , 50 degree fan angle |

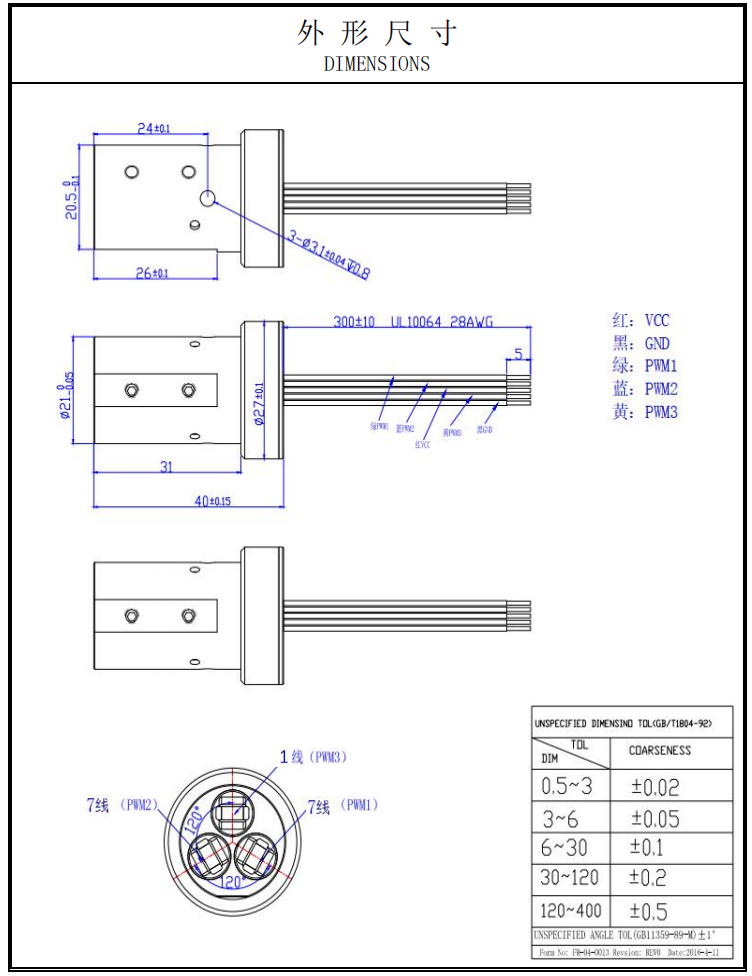

| Housing Size | 27*40mm (Customizable) |
| Lens | Optical Glass lens |
| Lifespan | > 10,000 hours |

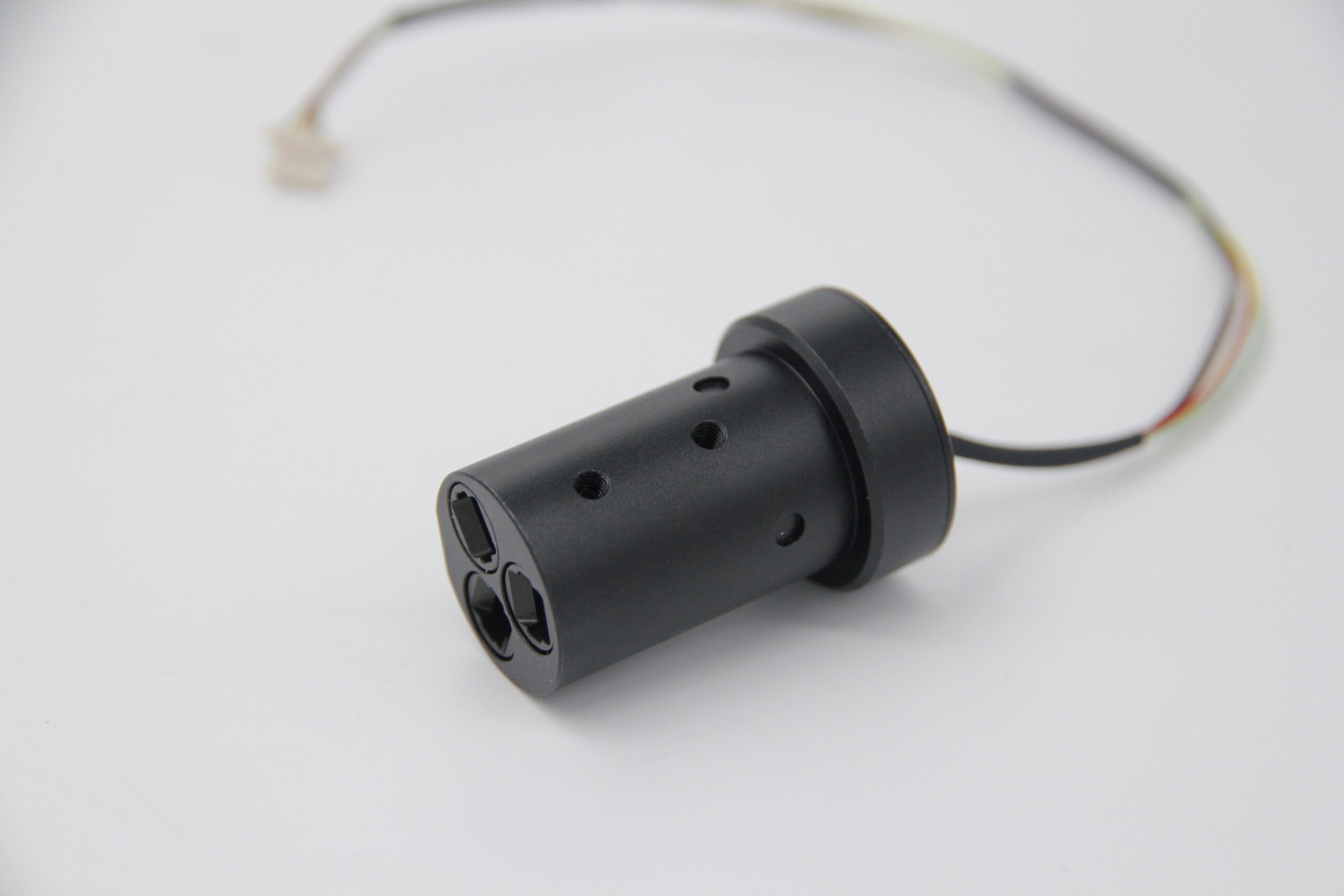

Product Display:
Our Services :
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Beam Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. | ||||
| CDRH Class | class1/class2/class3A/class3B/class4 | ||||
