Medical Treatment Laser Head 450nm 1.6W Blue Diode Laser Module for Tattoo Removal

Product Type:Blue Diode Laser Module

Wavelength: 450nm

Output Power: 1.6W

Housing Size: 13.5*26mm (Customizable)

Working Voltage: 5V

Dot Beam Size: ≤1mm @46.5mm

Application: Laser beauty, laser nevus removal, freckle removal, tattoo removal, skin rejuvenation, laser pointing, laser positioning, and so on.

Medical Treatment Laser Head 4...

 450nm 1.6W Blue Diode Laser Module for Tattoo Removal

This Medical Treatment Laser Head 450nm 1.6W Blue Diode Laser Module serves as a professional-grade core component, exclusively engineered for medical aesthetic tattoo removal. It integrates the targeted tattoo pigment absorption of 450nm blue laser, the high-power medical aesthetic energy output of 1.6W, and the stable performance of diode laser technology. This 450nm 1.6W blue diode laser module delivers precise, efficient tattoo pigment decomposition for safe clinical use in beauty clinics, medical spas, and aesthetic medical institutions—emerging as a reliable solution for stubborn tattoos and semi-permanent makeup removal.

Core Technical Advantages for Tattoo Removal

  • 450nm Blue Laser Targeted Pigment Optimization: Stubborn tattoo pigments (blue, green, purple inks) – which traditional red or infrared lasers struggle to break down – highly absorb the 450nm wavelength. The laser penetrates 0.5-3mm into the dermis layer, focusing exclusively on pigment particles without damaging the epidermis. It ensures thorough tattoo removal while minimizing pigment residue and skin irritation.
  • 1.6W High Power for Efficient Medical Aesthetic Treatment: With stable power output, the 1.6W high power delivers concentrated energy to shatter large tattoo pigment clusters into micro-particles. The body’s lymphatic system then metabolizes these micro-particles, significantly shortening treatment cycles—4-6 sessions for medium-sized tattoos and 6-10 sessions for large professional tattoos. It outperforms low-power modules in medical aesthetic treatment efficiency.
  • Precision Spot & Focused Tattoo Removal Treatment: Equipped with medical-grade optical lenses, it offers an adjustable spot size (0.2-0.8mm) to match tattoo area, ink depth, and treatment needs. The narrow, focused laser beam ensures targeted tattoo removal, avoids damage to surrounding healthy skin, and minimizes post-treatment redness, swelling, or inflammation—critical for fine-line tattoos, small local tattoos, or delicate semi-permanent makeup removal.

Blue Diode Laser Module

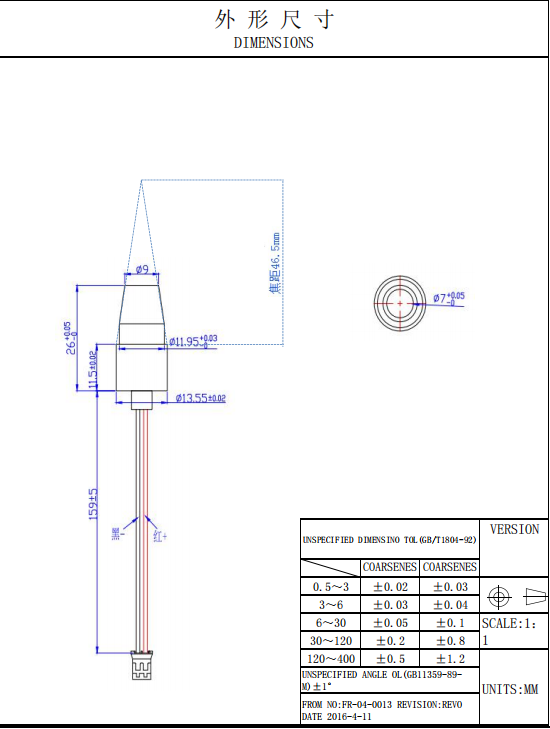

Core Specification :

Wavelength 450nm
Output Power 1.6W
Working Voltage 5V
Beam Mode Dot beam
Beam Size ≤1mm @46.5mm
Housing Size 13.5*26mm (Customizable)
Lifespan  10,000 hours

Blue Diode Laser Module Blue Diode Laser Module

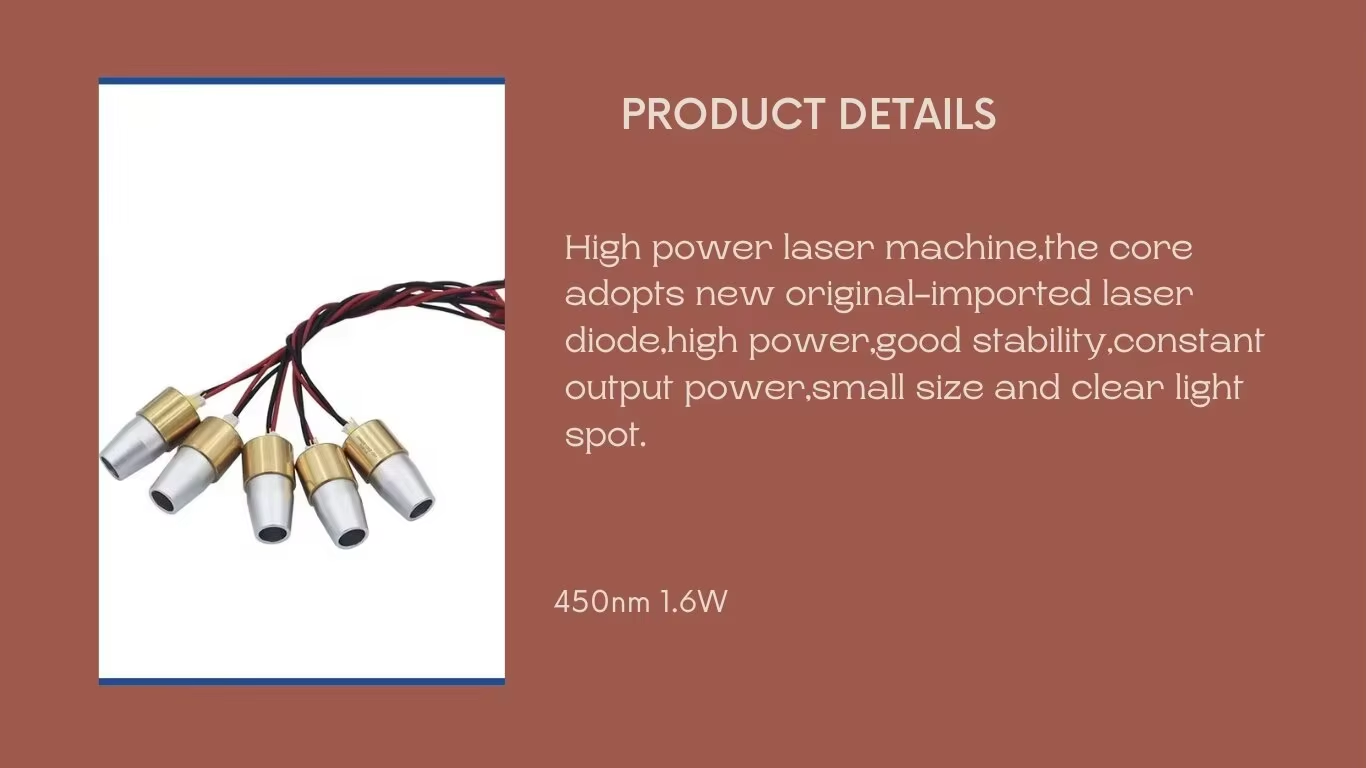

Product Display :

Blue Diode Laser ModuleBlue Diode Laser Module Blue Diode Laser Module






Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3R/class3B/class4
