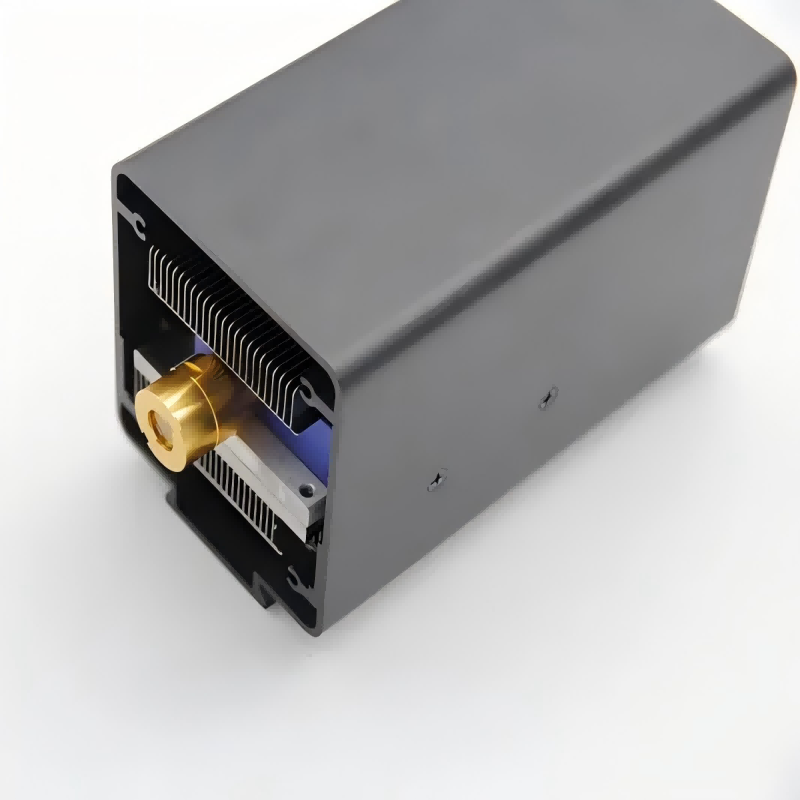

450nm 30W 24V PWM Blue Laser Module for Laser Cutting Engraving
This 450nm 30W blue laser module for laser cutting engraving combines reliability with efficiency. Operating at a wavelength of 450nm and powered by a 24V PWM control system, it ensures smooth operation and high precision in both laser engraving and cutting tasks.
With a power output of 30W, it effortlessly handles both delicate and heavy-duty materials, including wood, acrylic, leather, plastic, and more, making it a versatile tool for diverse projects. Its advanced design minimizes energy consumption while maximizing output, keeping your processes efficient and cost-effective.
Features brand new original imported glass lenses and laser diodes, offering a long service life and excellent stability. Equipped with a brand new heat sink for efficient heat dissipation.

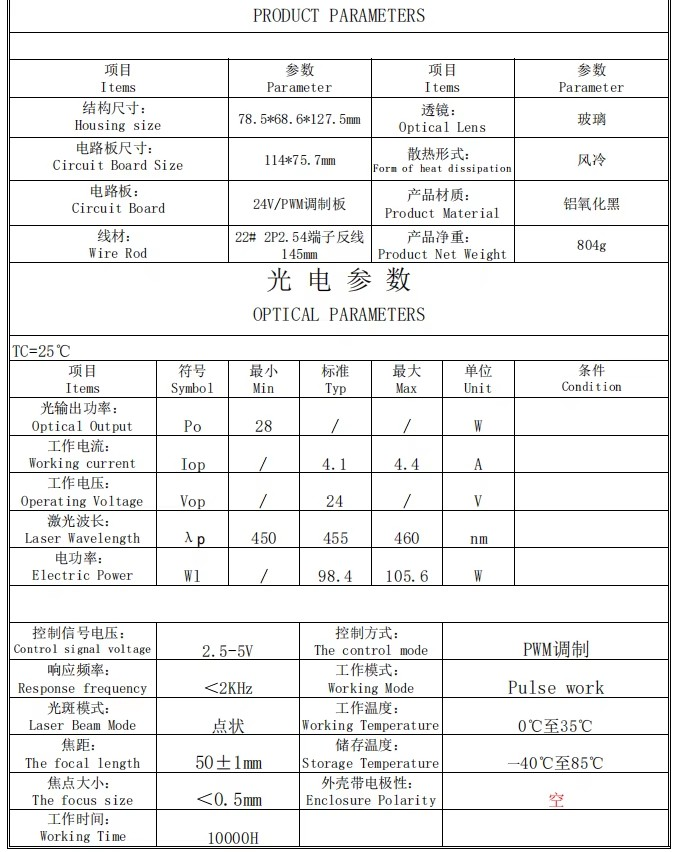

Core Specification
| Wavelength | 450nm |
| Output Power | 30W |
| Working Voltage | 24V |
| Beam Mode | Dot |
| The Focal Distance | 50±1 mm |

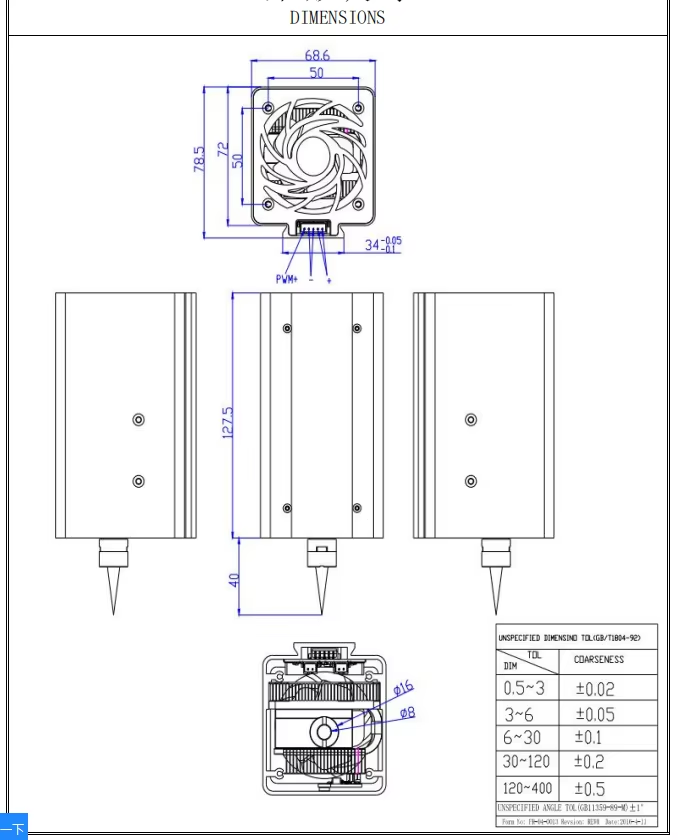

| Housing Size | 78.5*68.6*127.5mm |
| Optical Lens | Glass |
| Working Time | 10000H |

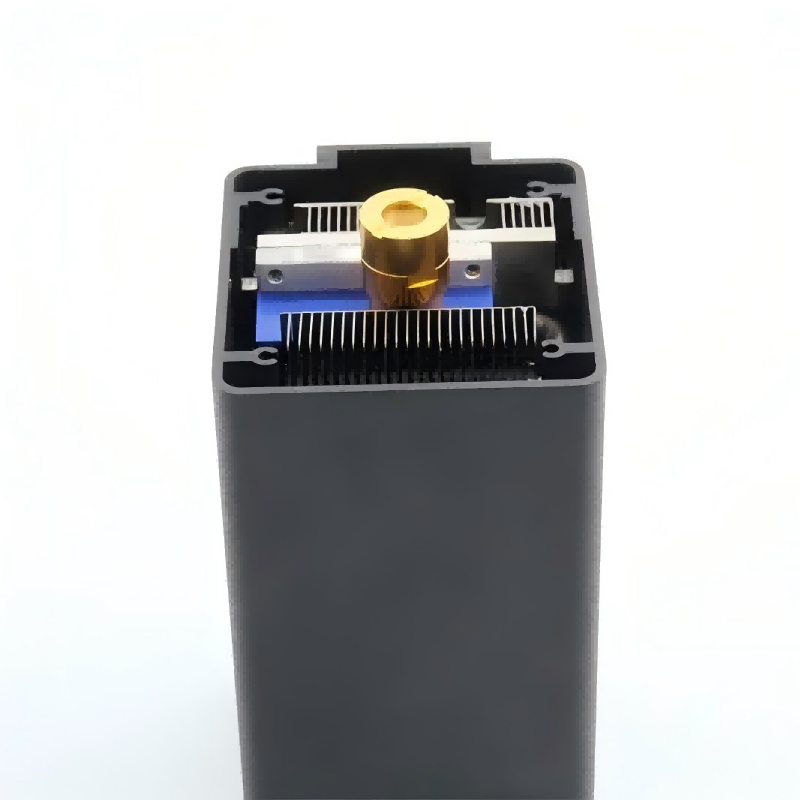

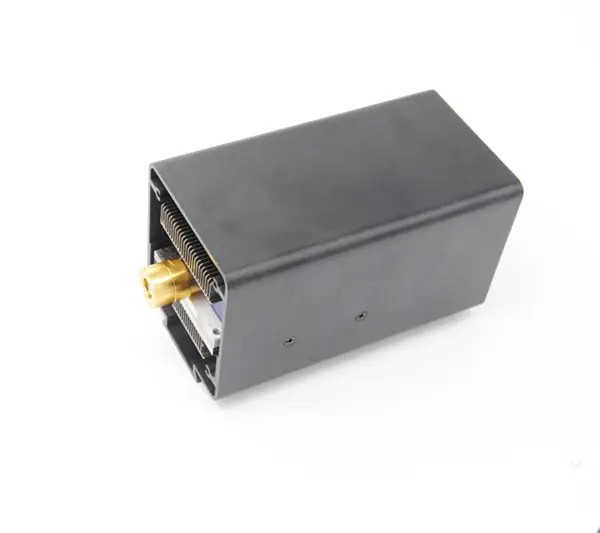

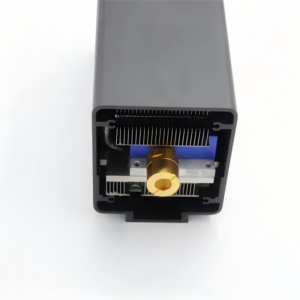

Product Display
Our Services
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1o64nm!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-52onm | 635-67onm | 780-98onm |
| Single Diode Module Optical Power | 2omW-3W | 55mW-6w | 1omW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-2o0W | 6W-500W | 1.6W-50W | 2.5W-3oW | 75W-100W |
| Operating Voltage | 3-5V/6V/12V/24V/3oV/11oV/22oV etc. | ||||
| Beam Mode | Dot/Line/ Cross/Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrvlic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/6*10.5m/12*15mm/9*21mm/16*66mm/33*33*55mm/ Customizable etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
