450nm 60W Blue Fiber Laser Module for Laser Welding

Product Type: Fiber coupling laser module

Wavelength: 450nm

Output Power: 60W

Working Voltage: 34*2 path

Fiber Core Diameter: 50um

Application: Laser welding, laser cladding, laser hardening, and 3D printing, and so on, etc.

450nm 60W Blue Fiber Laser Mod...

450nm 60W Blue Fiber-coupled Laser Module for Laser Welding

This 450nm 60W fiber-coupled laser module delivers a stable 60W laser power through 50um/100um bundled fibers, powered by its high-performance fiber laser core. It boasts excellent beam quality and high brightness while featuring a compact, small-size design that enables flexible installation and integration.

For higher power requirements, the module supports customized solutions such as 100W and 200W, adapting to diverse application scenarios. In terms of interfaces and performance, it comes with standard SMA905/QCS fiber connectors, offering optional 50um or 100um core diameters, and achieves outstanding multi-single-tube coupling efficiency for efficient energy transmission.

As a reliable blue fiber laser module, it widely serves industrial processing fields including laser welding, laser cladding, laser hardening, and 3D printing, providing stable support for high-precision operations.

Core Specification :

Wavelength 450nm
Output Power 60W
Working Voltage 34*2 path
Fiber Core Diameter 50um
Fiber Interface SMA905/QCS
Fiber Length 5m (Customizable)
Lifespan  10,000 hours

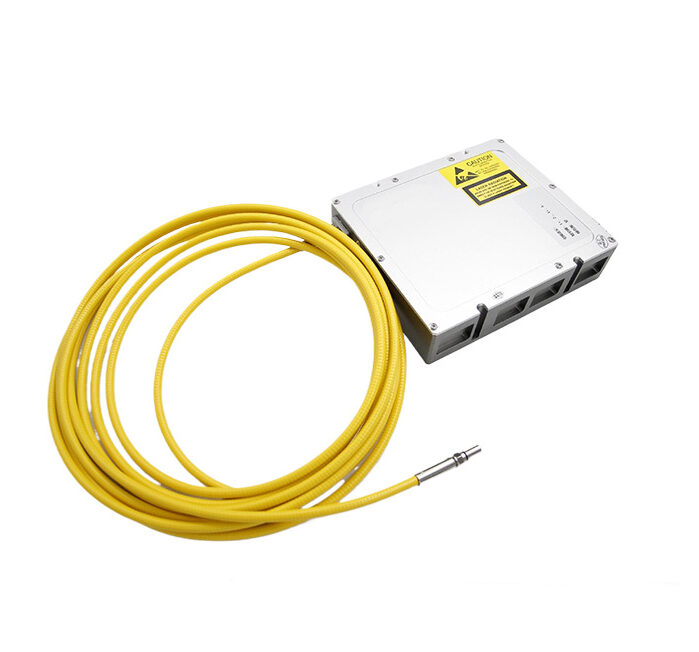

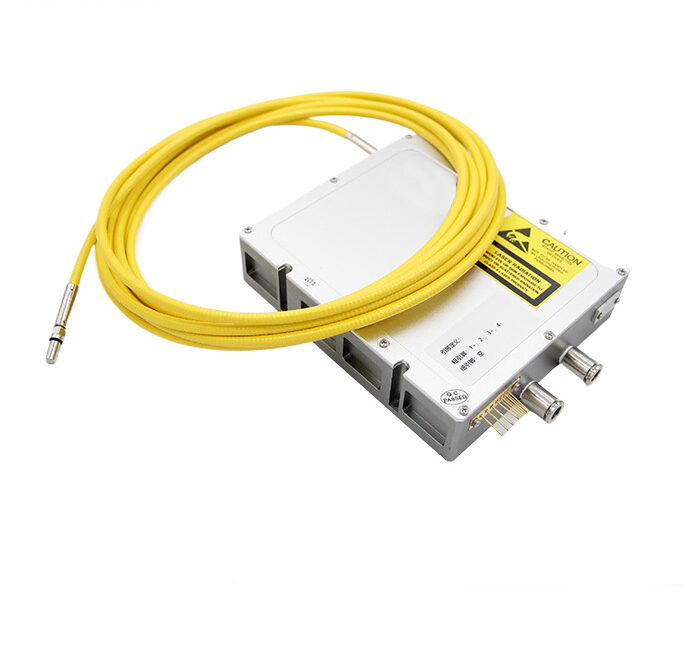

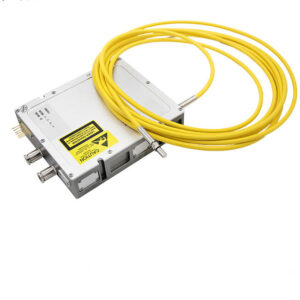

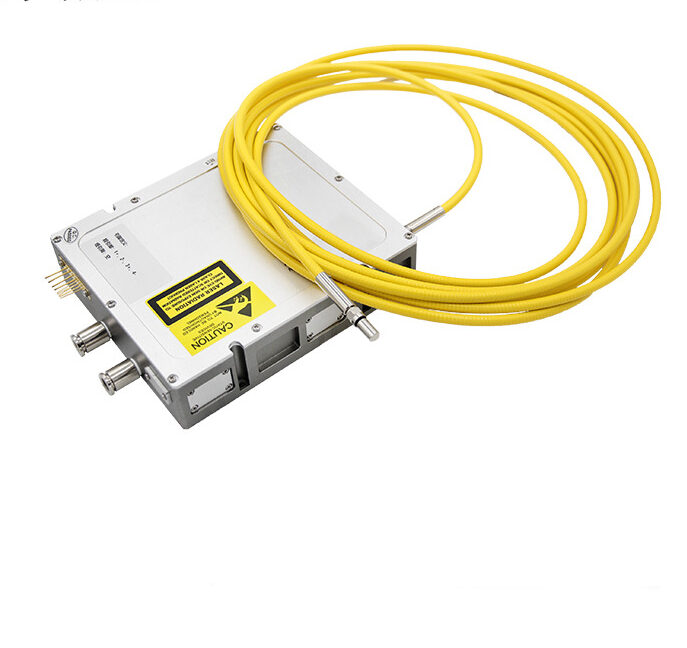

Product Display :




Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3A/class3B/class4
