658nm 660nm 80mW Red Line Laser Module for Indication Positioning

Engineered for professional industrial and technical scenarios, this 658nm red line laser module delivers a stable 80mW output power — a reliable workhorse for machine vision systems and precision positioning indication.

Featuring a sharp, highly visible laser line, it serves as an optimal solution for precision alignment and positioning tasks. Compact, robust and easy to integrate, the module ensures consistent performance across a broad spectrum of industrial applications.

The red laser module emits clear, uniform laser spots that form high-contrast reference lines, effectively boosting accuracy for automated inspection, production line alignment, robot guidance and equipment positioning.

With a compact 12×22mm housing, this module fits seamlessly into space-constrained setups while retaining full functionality — ideal for integration into compact industrial equipment.

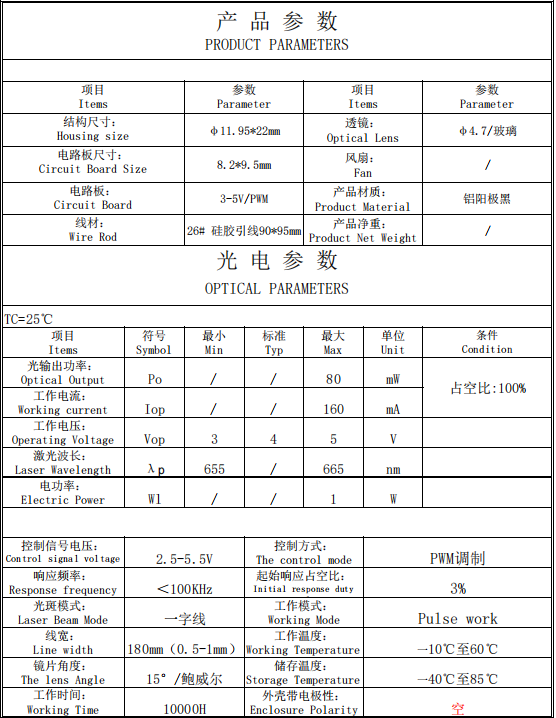

Core Specification

Wavelength	658nm
Output Power	80mW
Working Voltage	3-5V
Beam Mode	Line
Line Width	180mm（0.5-1mm）

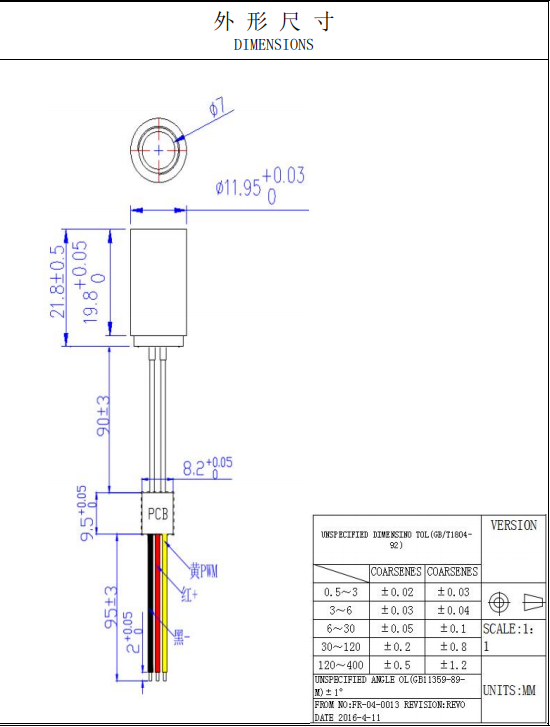

Housing Size	11.95x22mm
Lens	15° Powell lens
Working Time	10000H

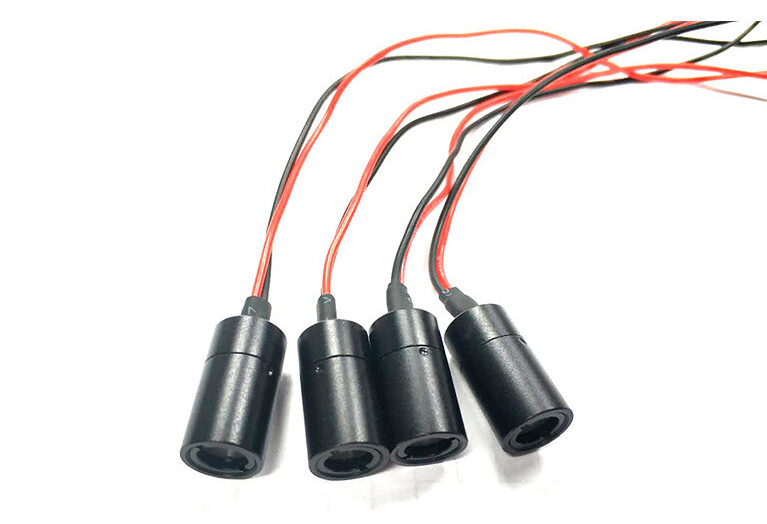

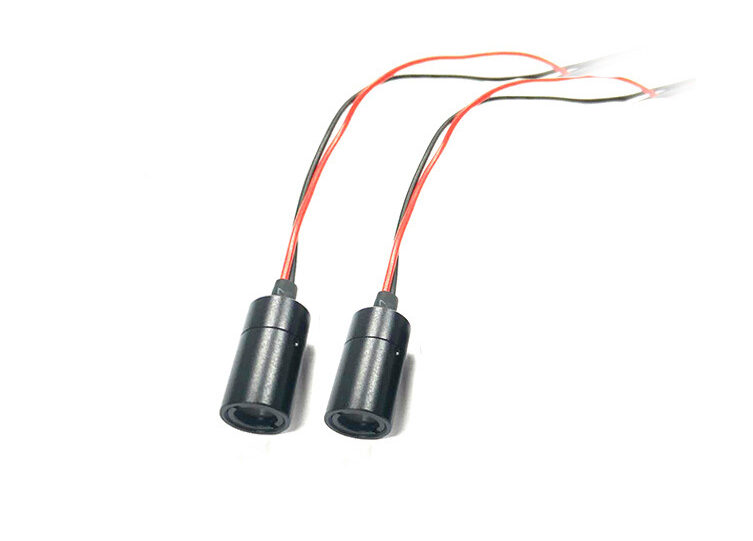

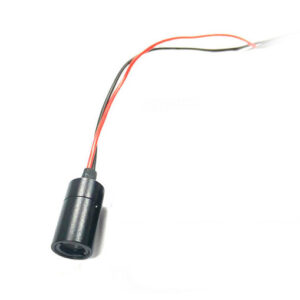

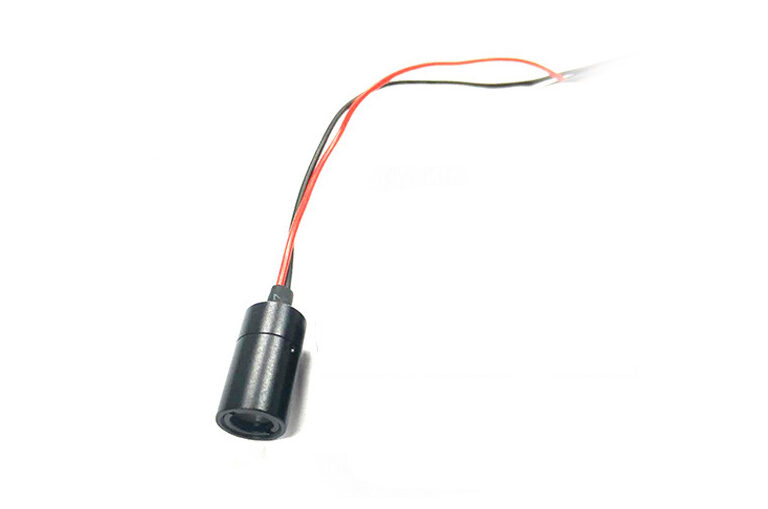

Product Display

Our services

We have over 15 years ofexperience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1o64nm!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-52onm	635-67onm	780-98onm
Single Diode Module Optical Power	2omW-3W	55mW-6w	10mW-1.6W	5mW-2.5W	5mW-75W
Multi Diodes Module Optical Power	3W-2o0W	6W-5O0W	1.6W-5OW	2.5W-3oW	75W-100W
Operating Voltage	3-5V/6V/12V/24V/3oV/11oV/22oV etc.
Beam Mode	Dot/Line/ Cross/Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens	Acrvliclenses, glass lenses, wave lenses, Powelllenses etc.
Dimension	*48mm/610.5mm/1215mm/921mm/1666mm/333355mm/ Customizable etc.**
CDRH Class	class1/class2/class3A/class3B/class4
