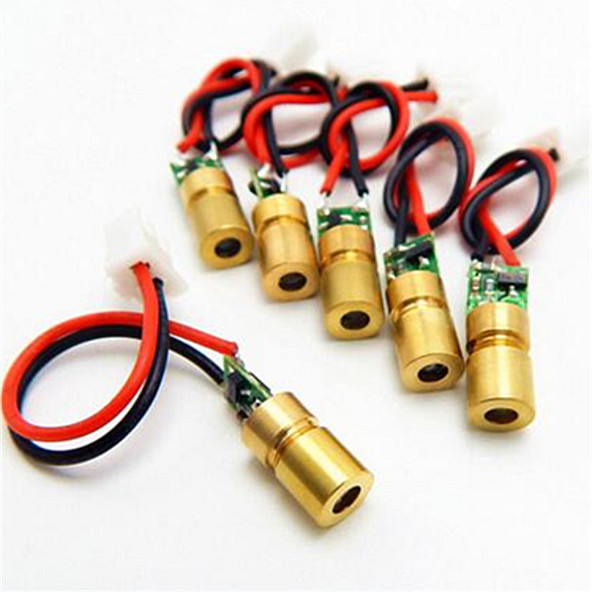

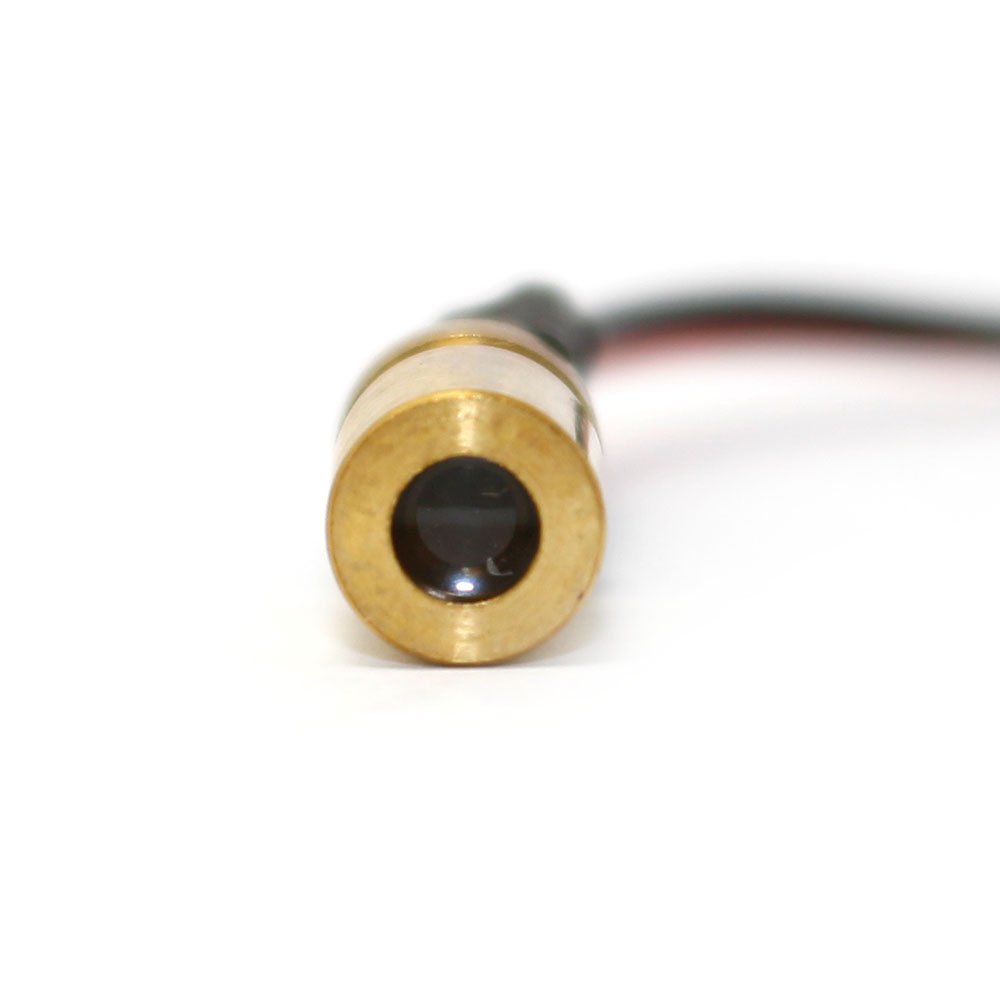

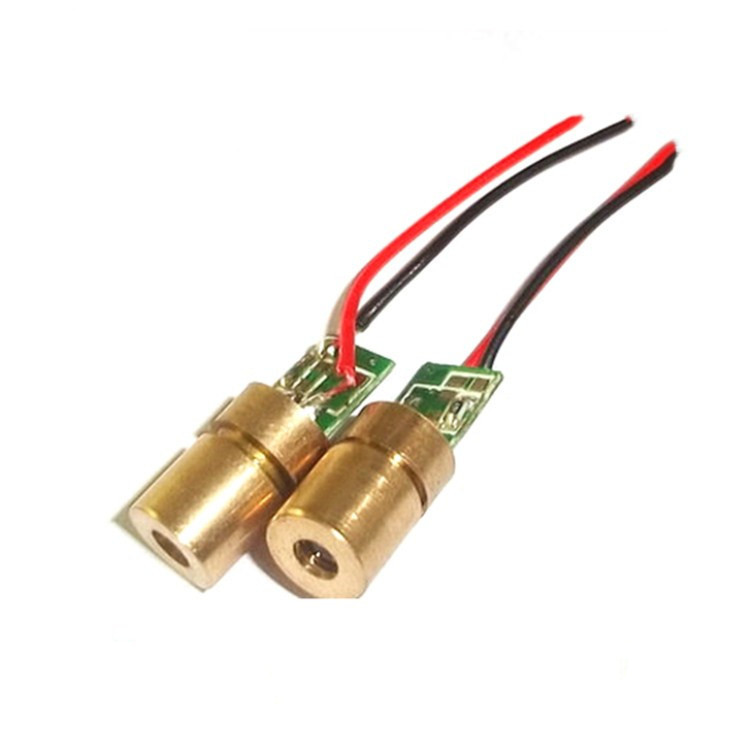

The Class 2 Laser 650nm 1mW Red Dot Laser Aiming Module—a safety-focused, precision positioning solution engineered for laser positioning applications. Combining Class 2 eye-safe operation, 650nm high-visibility red dot output, 1mW stable performance, and compact integration design, this module delivers reliable pinpoint aiming for industrial alignment, equipment calibration, and precision positioning tasks, ensuring operational safety and efficiency.

Core Advantages for Laser Positioning

Class 2 Eye Safety: User-Friendly Operation
Complies with IEC 60825-1 Class 2 laser safety standards (≤1mW output), eliminating the need for special protective gear; safe for direct eye exposure in short durations, making it ideal for human-machine collaboration environments (e.g., assembly lines, construction sites, medical equipment).

650nm Red Dot: High Visibility for Precise Aiming

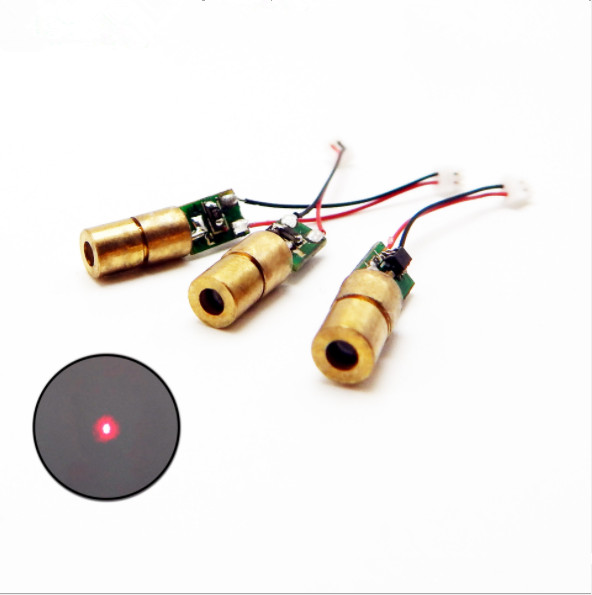

650nm red wavelength offers clear naked-eye visibility in indoor and low-light outdoor settings; projects a sharp, focused red dot (≤12mm@8m) with no blurring or drift, enabling quick, accurate laser positioning for equipment alignment and target marking.

1mW Stable Output: Consistent Positioning Performance
CW mode output with ≤±0.1mW power fluctuation ensures reliable aiming accuracy over long-term use; maintains dot clarity within 0.5–20m working distance, supporting diverse laser positioning needs from close-range calibration to mid-distance targeting.

Key Applications

Industrial Positioning: Equipment alignment (CNC machines, laser cutters), assembly line part positioning, and conveyor belt target marking.
Construction & Surveying: Architectural layout calibration, level positioning, and structural component alignment.
Medical Equipment: Diagnostic devices (ultrasound, endoscopes) and surgical instrument positioning (low-risk procedures).
Automation & Robotics: Automated guided vehicle (AGV) path positioning, robotic arm target alignment, and sensor calibration.
Consumer & Commercial: Laser pointers for presentation, retail shelf positioning, and home improvement tools (drill guides, levelers).
