Focusable 450nm 60mW Blue Dot Laser Module for Laser Pointing

Product Type: Focusable Blue Dot Laser Module

Wavelength: 450nm

Output Power:> 55mW

Size: 12*35mm (Customizable)

Working Voltage: 3-5V

Dot Beam Size: Focusable

Application: Laser pointing, laser positioning, Laser sensor and so on.

Focusable 450nm 60mW Blue Dot ...

Focusable 450nm 60mW Blue Dot Laser Module

This Focusable 450nm 60mW Blue Dot Laser Module is designed specifically for laser pointing scenarios, ideal for users needing clear, adjustable light spots. It stands out with its focusable function, letting you tweak the dot size based on actual needs—perfect for both short-distance indication and long-range targeting.

This Focusable Blue Dot Laser Module emits 450nm blue laser with 60mW stable output. The blue light is bright and high-contrast, making the dot easy to spot even in well-lit environments. You won’t have to deal with dim or blurry points common in low-quality modules.

The focusable design is its key advantage. It supports manual adjustment of the focus knob, shrinking the dot to ≤2mm at 1m for precise pointing (like circuit board labeling) or expanding it slightly for wider-area indication (like classroom whiteboard marking). No extra tools are needed—just twist the knob to get the right spot size.

This Focusable 450nm 60mW Blue Dot Laser Module fits a wide range of pointing needs: DIY project positioning, school physics experiment demonstrations, industrial equipment debugging (e.g., sensor alignment), and even outdoor small-scale targeting. It’s small and lightweight, so you can mount it on brackets or hold it by hand easily.

For usability, it adapts to a 3.3V-5V low-voltage DC power supply — great for battery-powered setups. It also has a durable aluminum alloy shell that resists scratches and minor impacts, suitable for daily use.

Note: This Focusable 450nm 60mW Blue Dot Laser Module emits visible blue light. Avoid prolonged direct eye contact, especially when using the focused small dot. Keep it away from children to prevent misuse.

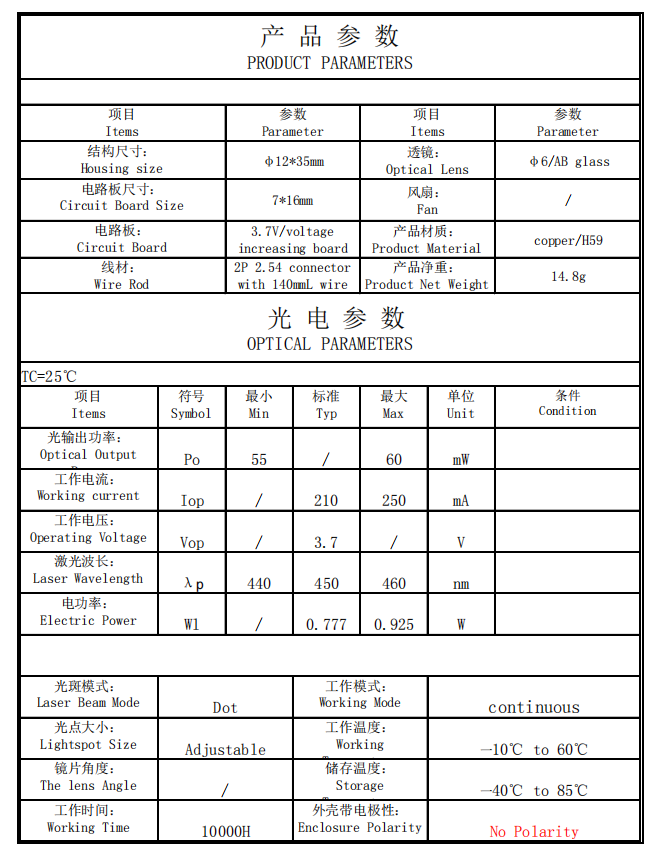

Core Specification :

Wavelength 450nm
Output Power 55-60mW
Working Voltage 3-5V
Beam Mode Dot beam
Beam Size Adjustable
Housing Size 12*35mm (Customizable)
Lens Optical Glass
Lifespan > 10,000 hours




Product Display :






Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3R/class3B/class4
