High Quality 650nm 3mW Dot Laser Module Laser Pointer

Product Type: 650nm 3mW Dot Laser Module

Wavelength: 650nm

Output Power: 3MW

Housing Size: 6*10.5mm (Customizable)

Working Voltage: 3-5V

Dot Beam Size: ≤12mm @10M

Application: Laser pointing, laser positioning, and so on.

High Quality 650nm 3mW Dot Las...

High Quality 650nm 3mW Dot Laser Module Laser Pointer

This 650nm red dot laser module delivers reliable performance in a tiny, durable package—ideal for precision laser positioning across industrial, hobbyist, and DIY applications.

This dot laser module operates at 3–5V DC (compatible with common power sources like USB or battery packs) and outputs a stable 3mW red laser beam with exceptional focus: at 10 meters, the dot remains less than 12mm in diameter—critical for tasks requiring consistent, tight alignment.

Crafted with a robust brass housing (6×10.5mm), this laser module balances portability and durability, fitting seamlessly into compact devices or tight assembly spaces. Its static, surge, and reverse polarity protection safeguards internal components, while the collimated optical lens ensures a crisp, non-divergent dot even at extended distances.

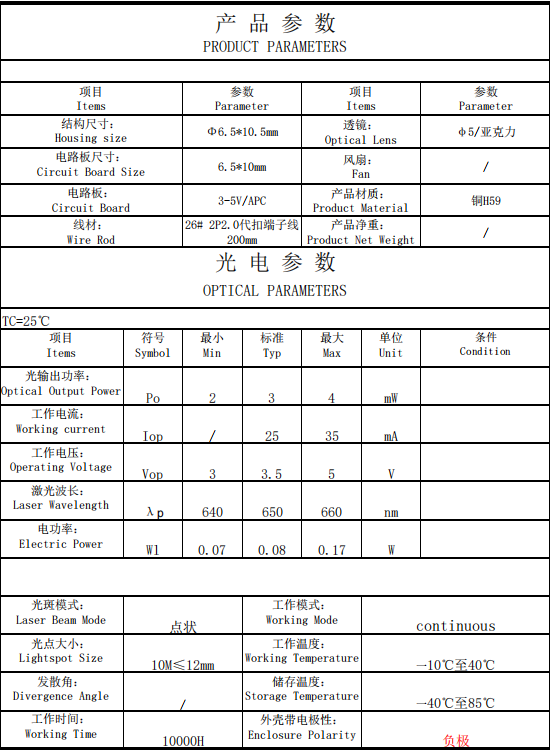

Core Specification :

Wavelength 650nm
Output Power 3mW
Working Voltage 3-5V
Beam Mode Dot beam
Beam Size ≤12mm @10M

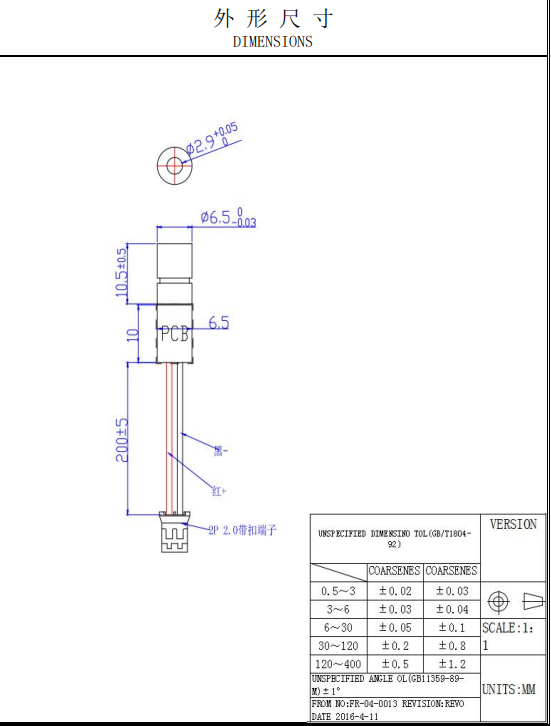

Housing Size 6*10.5mm (Customizable)
Lifespan  10,000 hours

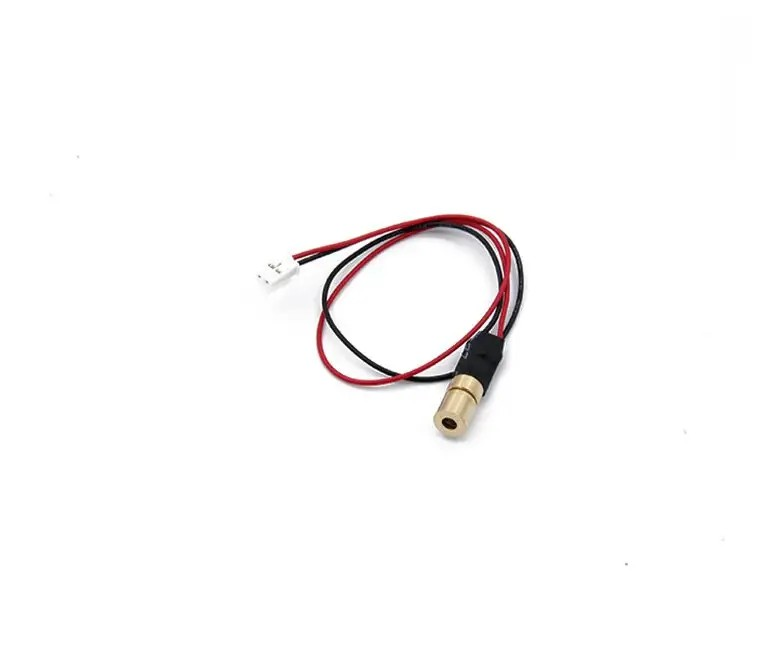

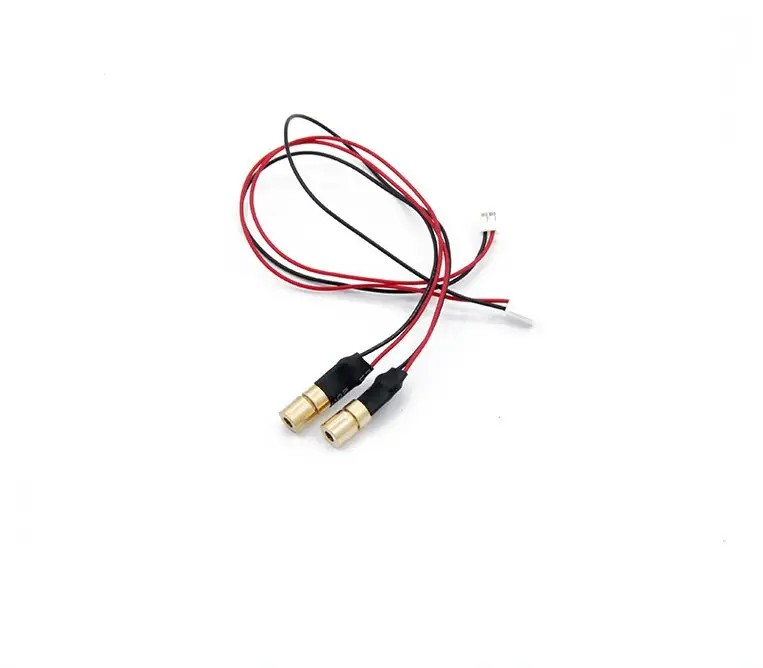

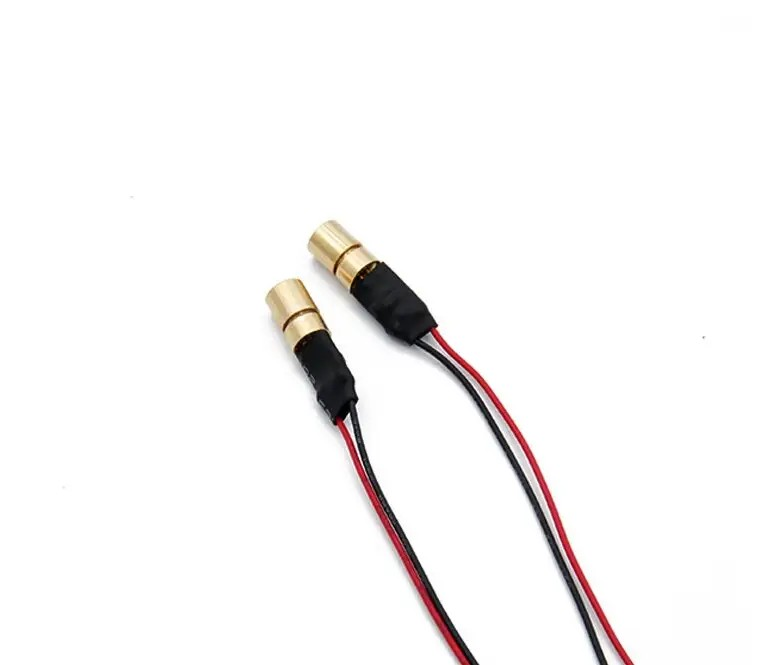

Product Display :






Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3A/class3B/class4
