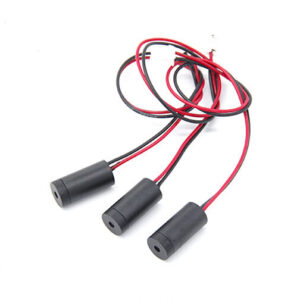

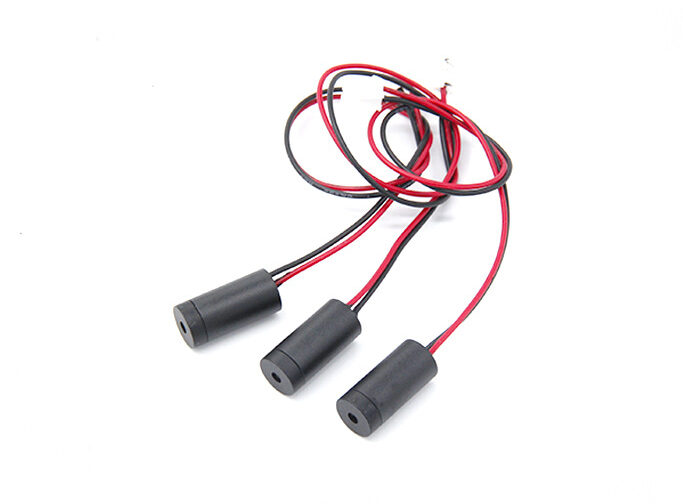

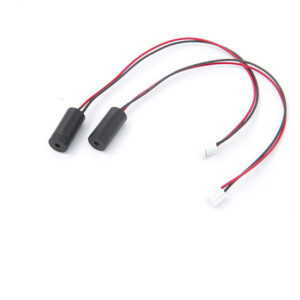

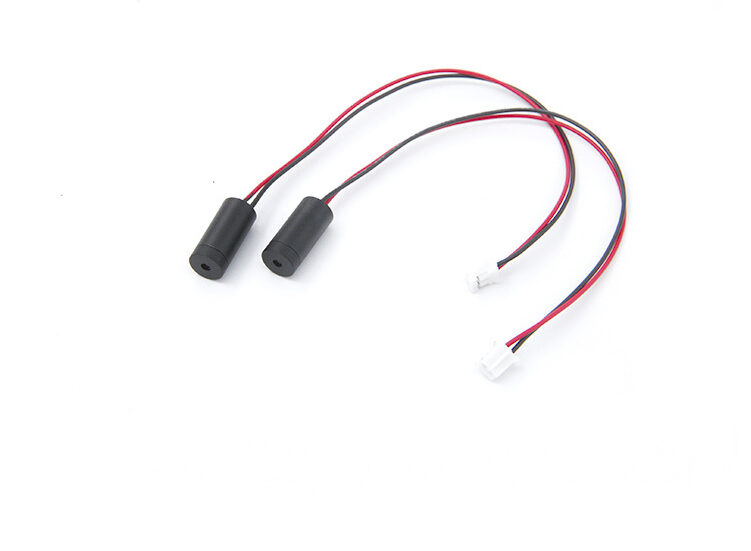

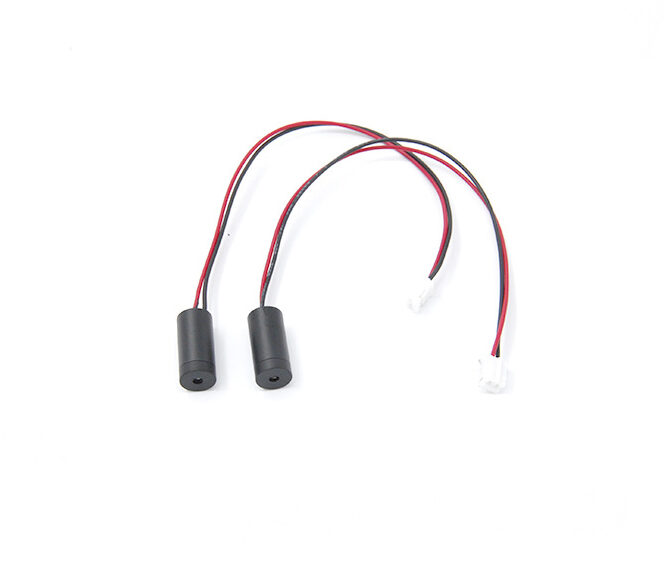

Class 2 Laser 3V 650nm 5mW Red Dot Laser Module for Positioning Indicating
650nm 1mW red dot laser module, 8*17mm small size, good performance and stable power.
The red dot laser module use imported laser light source, low power, but high brightness, quality assurance.
This laser module features a 650nm wavelength and 1mw output power, delivering a clear, stable red spot that ensures accurate targeting in various scenarios. With a compact 8x17mm design, it’s ultra-slim and space-saving, easily integrating into equipment, tools, or devices without occupying excess space.
Red laser has a wide range of applications, such as pointing, aiming, laser pen, page turning pen, toys and so on.
Note: This Mini 650nm 1mW Red Dot Laser Diode Module emits visible red light. Never stare directly at the red dot, and keep it away from children to prevent accidental eye exposure.

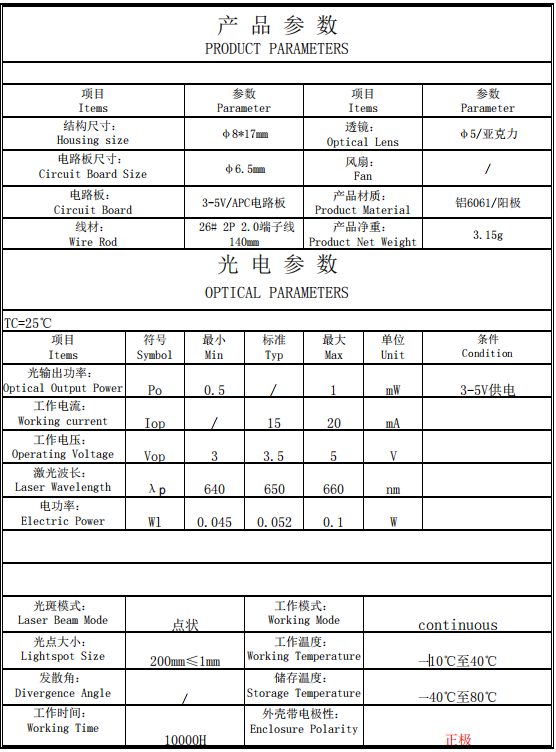

Core Specification :
| Wavelength |
650nm |
| Output Power |
1mW |
| Working Voltage |
3-5V |
| Beam Mode |
Dot beam |
| Beam Size |
≤1mm @200mm |

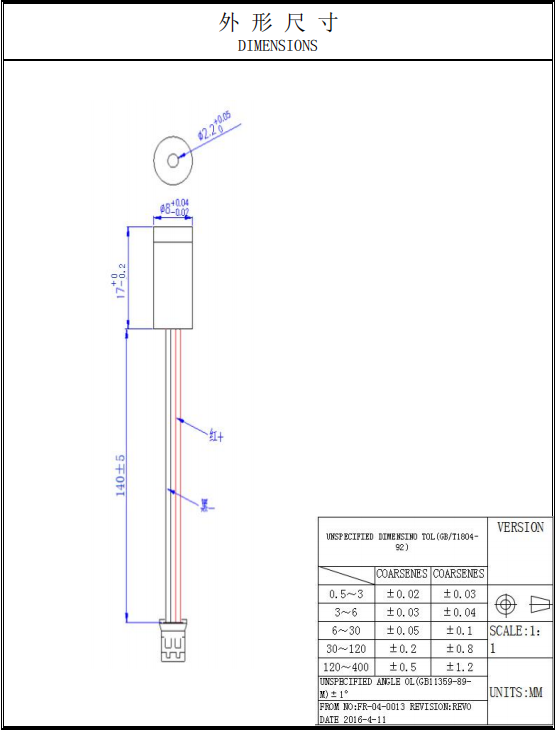

| Housing Size |
8*17mm (Customizable) |
| Lens |
Acrylic lens |
| Lifespan |
10,000 hours |

Product Display :

Our Services :
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
| Item |
Parameter |
| Wavelength |
375-405nm |
425-488nm |
515-520nm |
635-670nm |
780-980nm |
| Single Diode Module Optical Power |
20mW-3W |
20mW-3W |
10mW-1.6W |
5mW-2.5W |
5mW-75W |
| Multi Diodes Module Optical Power |
3W-200W |
6W-500W |
1.6W-50W |
2.5W-30W |
75W-100W |
| Operating Voltage |
3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V etc. |
| Beam Mode |
Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. |
| Fan Angle Options of the Line Beam |
5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. |
| Optical Lens |
Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. |
| Dimension |
4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. |
| CDRH Class |
class1/class2/class3R/class3B/class4 |
