Nichia 638nm 72W Red Laser Array NURM33-A for Laser Show

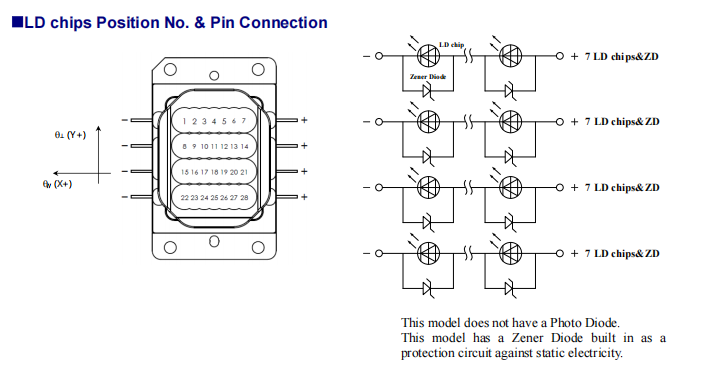

It is a higher power and brand new multiple laser diode laser array ( LD chip package) from Nichia, which is 639nm wavelength with 72W output power. This red laser array is integrated by a 28pcs blue 2.6W red laser diode chip inside, then there is a collimating lens in the front of the diodes, and can project 28 collimator and 7 series *4 parallel beams. It is mainly applied to laser projectors, laser show systems,and so on.

Key Applications:

• Professional Laser Shows: Outdoor concerts, music festivals, and large-scale events requiring long-distance, high-brightness red laser beams.
• Stage Lighting: Theatrical productions, nightclub visual effects, and live performance dynamic light displays.
• Architectural Projection: Building facade mapping, landmark illumination, and urban light art installations.
• Event Branding: Custom logo projections, dynamic text displays, and audience-interactive laser effects for corporate events and product launches.

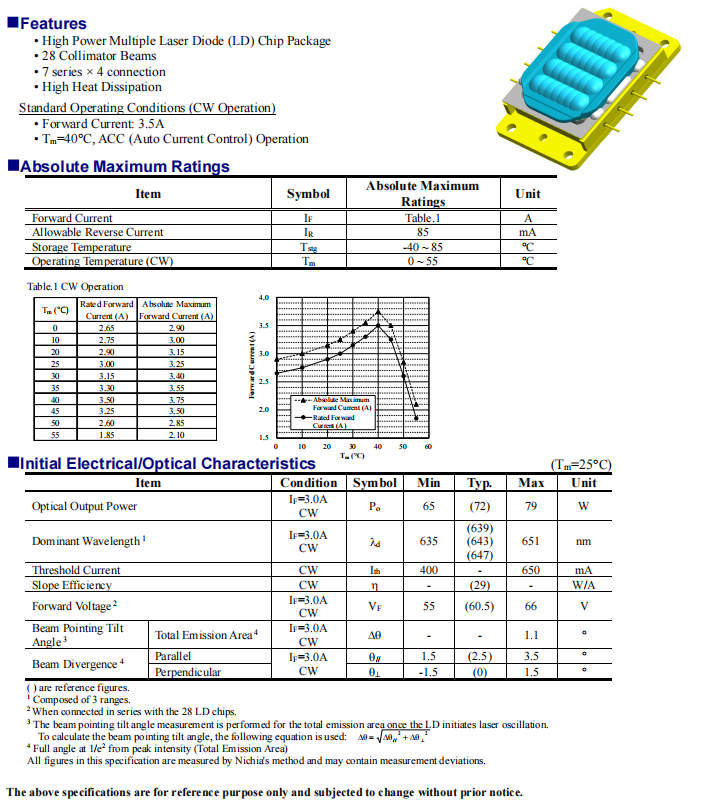

Core Specification:

Our Services:

BU-LASER has other Laser diodes from 375nm to 1064nm as below, and also offers professional OEM@ODM service for laser modules !
