NUGM06 520nm 13W Green Laser Diode Bank 520nm 1.6W Green Laser Diode

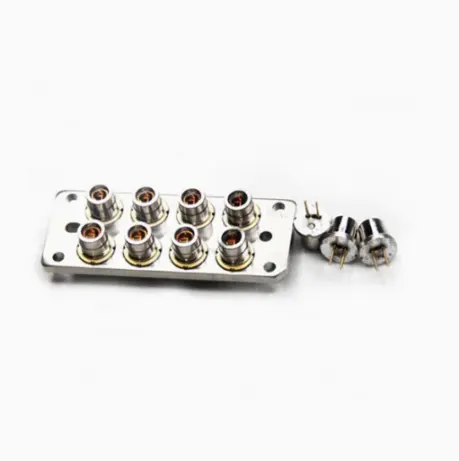

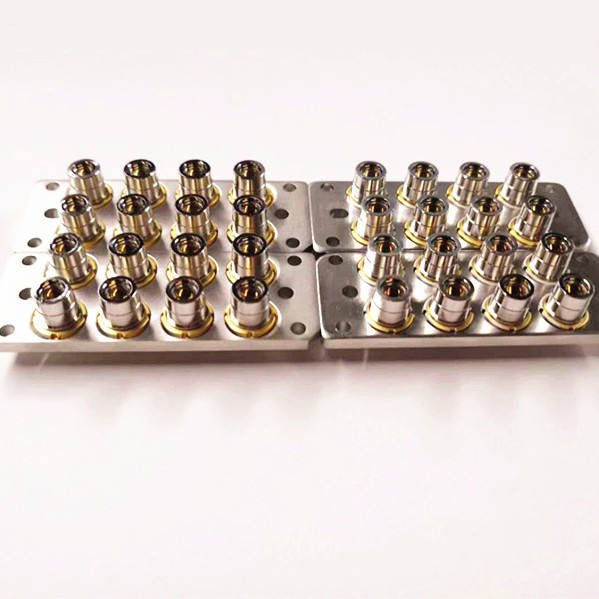

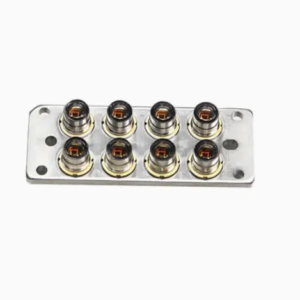

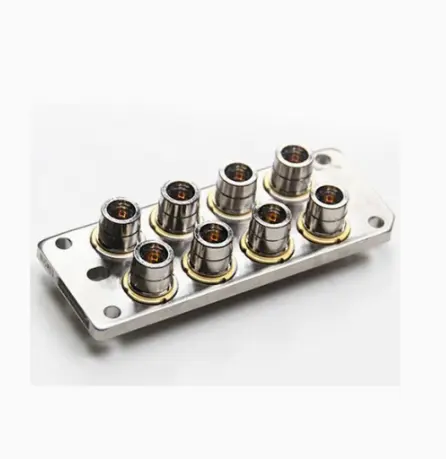

This NICHIA NUGM06T is a high-power 8-channel green laser diode (LD) bank, engineered for applications requiring multi-beam, stable green emission—ideal for industrial alignment, projection systems, and precision sensing. It integrates 8 collimated beams in a single module, with a low-heat dissipation design and high-safety structure to prevent accidental LD removal, ensuring reliable, long-term operation.

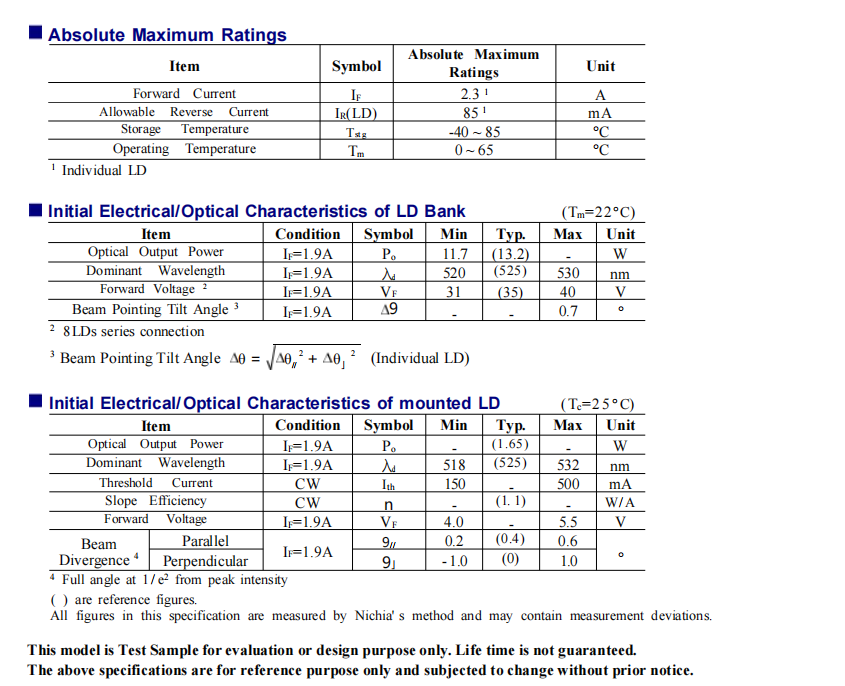

- Performance: Delivers a typical 13.2W total optical output power (CW operation at 1.9A), with a dominant wavelength of 525nm (range: 510–530nm) for bright, consistent green light.
- Electrical Characteristics: Operates at a typical 35V forward voltage (8 LDs in series) with a 1.1W/A slope efficiency (CW mode), balancing power and energy efficiency. The threshold current for individual LDs is 150mA.

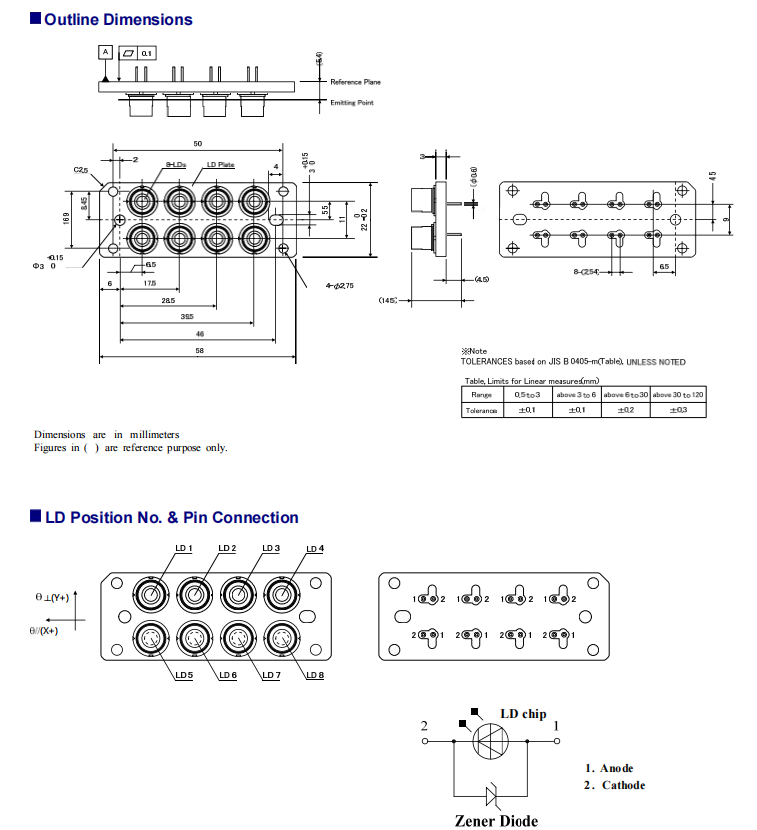

- Optical & Mechanical Design: Features controlled beam performance, including a typical 0° parallel beam divergence angle and 0° perpendicular angle (full angle at 1/e² peak intensity). The module supports auto current control (ACC) operation at 65°C ambient temperature.
- Durability: Withstands a maximum 2.3A forward current (per individual LD) and 85mA reverse current; operates in 0–65°C ambient temperatures (storage range: -40–85°C) for versatile environmental compatibility.
Built to NICHIA’s strict quality standards, the NUGM06T combines multi-channel functionality, high power output, and robust thermal management—making it a top choice for professional and industrial applications needing synchronized, high-performance green laser beams.
Core Specification:
| Wavelength |
520nm |
| Output Power |
1.6W |
| Working Voltage |
5.4V |
| Package |

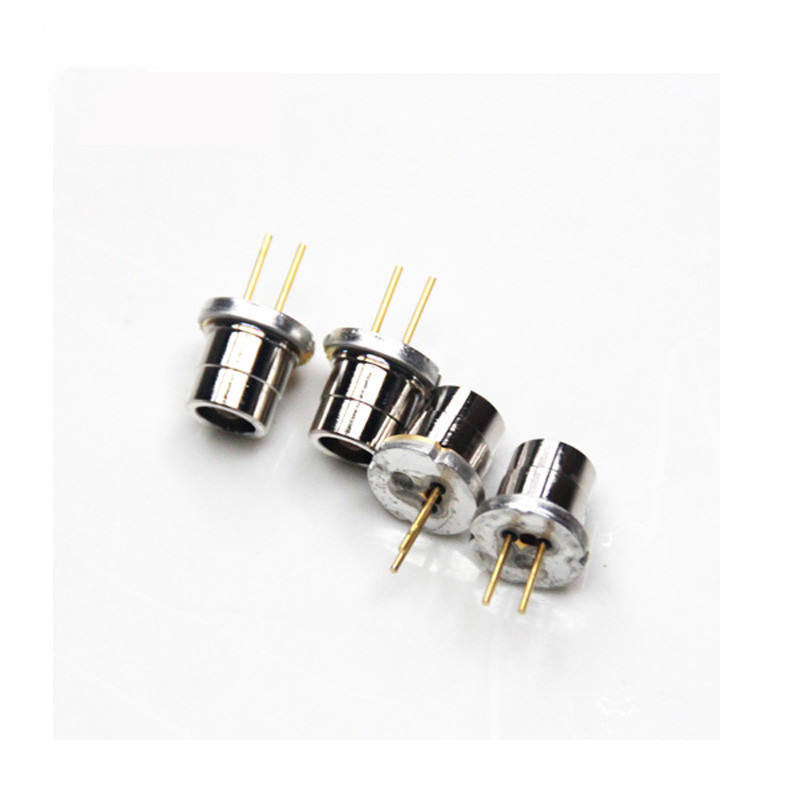

TO5 9mm |
| Condition |
Original package and brand new |
| Lifespan |
> 10,000 hours |
BU-LASER has other Laser diodes from 375nm to 1064nm:
| Color |
Wavelength |
Power Range |
Package |
| UV |
375nm |
500mW |
TO5-9mm |
| UV |
380nm |
200mW |
TO18-5.6mm |
| Violet |
395nm |
300mW |
TO18-5.6mm |
| Violet |
405nm |
20mW-3W |
TO18-5.6mm /TO5-9mm |
| Blue |
425nm |
1.5W |
TO18-5.6mm |
| Blue |
435nm |
5W-7W |
TO5-9mm |
| Blue |
450nm/455nm |
80mW -5.5W |
TO18-5.6mm /TO5-9mm |
| Blue |
462nm/ 465nm |
1.4W- 2.8W |
TO5-9mm |
| Cyan |
488nm |
55mW-300mW |
TO18-5.6mm |
| Green |
515nm/520nm |
10mW-1.6W |
TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame |
| Red |
635nm/638nm/642nm |
5mW-2.5W |
TO18-3.8mm/TO18-5.6mm/TO5-9mm |
| Red |
650nm /658nm/660nm |
5mW-1W |
TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame |
| Red |
670nm |
5mW |
TO18-5.6mm |
| Infrared |
780nm/785nm |
5mW-200mW |
TO18-5.6mm |
| Infrared |
808nm |
200mW-5W |
TO18-5.6mm/TO5-9mm/C-mounted |
| Infrared |
830nm |
30mW-300mW |
TO18-5.6mm |
| Infrared |
850nm |
5mW-2W |
TO18-5.6mm |
| Infrared |
905nm |
15W-75W |
TO18-5.6mm |
| Infrared |
940nm |
250mW |
TO18-5.6mm |
| Infrared |
980nm |
50mW-1W |
TO18-5.6mm/TO5-9mm |
| Infrared |
1064nm |
50mW |
TO18-5.6mm |
