High Power 450nm 100W Fiber Coupled Laser Module for Metal Welding

Product Type: Fiber coupled laser module

Wavelength: 450nm

Output Power: 100W

Working Voltage: 34*4 Channel

Fiber Core Diameter: 105um

Application: Laser welding, laser cladding, laser hardening, and 3D printing, and so on, etc.

High Power 450nm 100W Fiber Co...

High Power 450nm 100W Fiber Coupled Laser Module for Metal Welding

This 450nm 100W fiber-coupled laser module delivers a stable 100W laser power through 105um bundled fibers, powered by its high-performance fiber laser core. It boasts excellent beam quality and high brightness while featuring a compact, small-size design that enables flexible installation and integration.

For higher power requirements, the module supports customized solutions such as 100W and 200W, adapting to diverse application scenarios. In terms of interfaces and performance, it comes with standard SMA905/QCS fiber connectors, offering optional 105um core diameters, and achieves outstanding multi-single-tube coupling efficiency for efficient energy transmission.

As a reliable blue fiber laser module, it widely serves industrial processing fields including laser welding, laser cladding, laser hardening, and 3D printing, providing stable support for high-precision operations.

 450nm 100W Fiber Coupled Laser Module

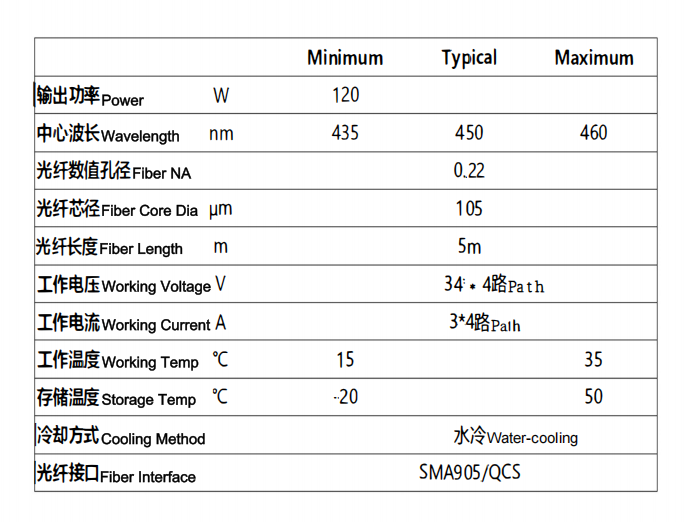

Core Specification :

Wavelength 450nm
Output Power 100W
Working Voltage 34*4  Channel
Fiber Core Diameter 1051um
Fiber Interface SMA905/QCS
Fiber Length 5m (Customizable)
Lifespan  10,000 hours

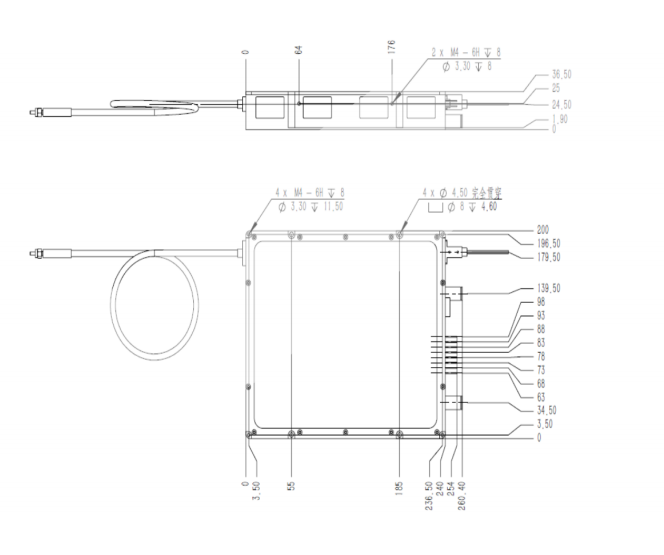

 450nm 100W Fiber Coupled Laser Module  450nm 100W Fiber Coupled Laser Module


Product Display :

 450nm 100W Fiber Coupled Laser Module  450nm 100W Fiber Coupled Laser Module




Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3A/class3B/class4
