Multi-Beam 532nm 50mW Green Laser Module for Laser Rotating Atmosphere Light

Product Type: Green Multi-Beam Laser Module

Wavelength: 532nm

Output Power: 50mW

Housing Size: 33*37*66mm (Customizable)

Working Voltage: 3-5V

Application: Stage atmosphere lamp, ambience lights in wine stands, and so on.

Multi-Beam 532nm 50mW Green La...

Multi-Beam 532nm 50mW Green Laser Module for Laser Rotating Atmosphere Light

Elevate your stage and atmosphere lighting with this high-performance green laser module, engineered specifically for laser rotating atmosphere lights and projection lights with multi-beam effects.

Core Performance & Specifications
– It emits bright green laser light at a 532nm wavelength, delivering a vivid and eye-catching beam effect that stands out in any setting.
– It boasts an output power of ≥50mW, ensuring strong light penetration and a clear, far-reaching projection up to 8 meters.
– It operates on a wide input voltage range of 3–5V with a stable 600A input current, making it compatible with various power supplies for easy integration.

Durable Design & Practical Features

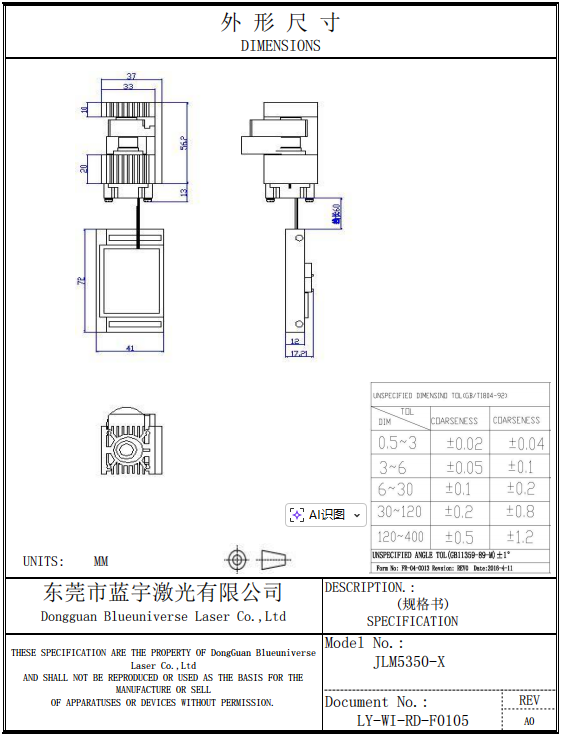

– With a compact dimension of 33×37×66mm, it fits seamlessly into most light fixtures without taking up excessive space.
– It features a 250mm wire length for flexible installation and wiring, adapting to different assembly requirements.
– It has an impressive service life of 5000 hours, guaranteeing long-term, reliable use for commercial or personal stage setups.
– It withstands a storage temperature range of -40°C to 80°C and a working temperature of 10°C to 40°C, suitable for diverse environmental conditions.

Versatile Applications
This laser module is the perfect component for laser rotating atmosphere lights, stage projection lights, and multi-beam effect lighting systems. It excels in creating dynamic visual experiences for stage performances, party venues, escape rooms, and home entertainment setups, bringing your lighting design to life with striking green laser beams.

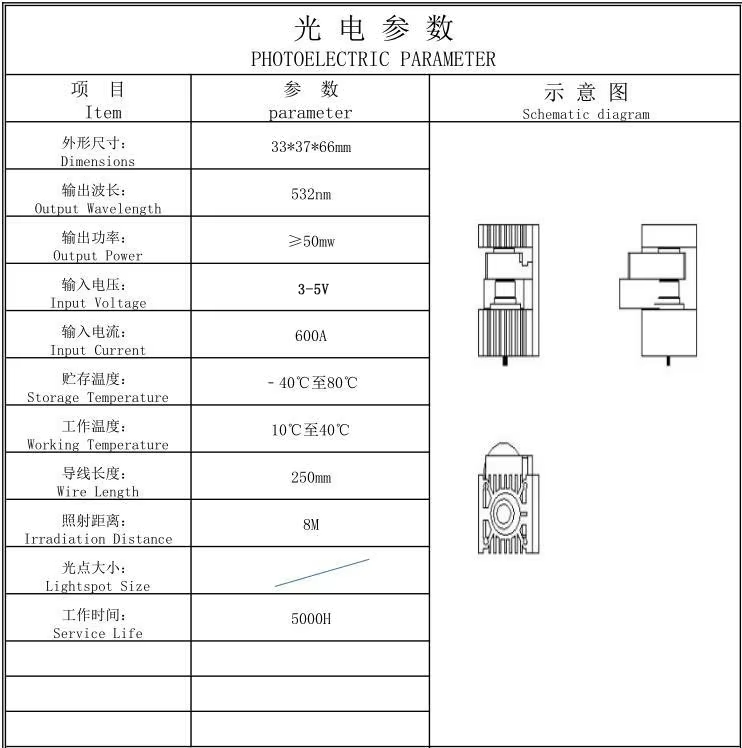

Core Specification :

Wavelength 532nm
Output Power 50mW
Working Voltage 3-5V
Beam Mode Multi-beam
Wire Length 250mm
Housing Size 33*37*66mm (Customizable)
Lifespan  10,000 hours

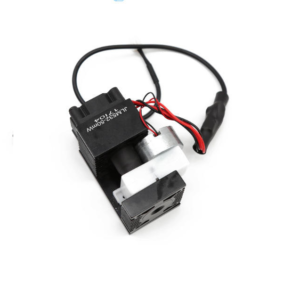

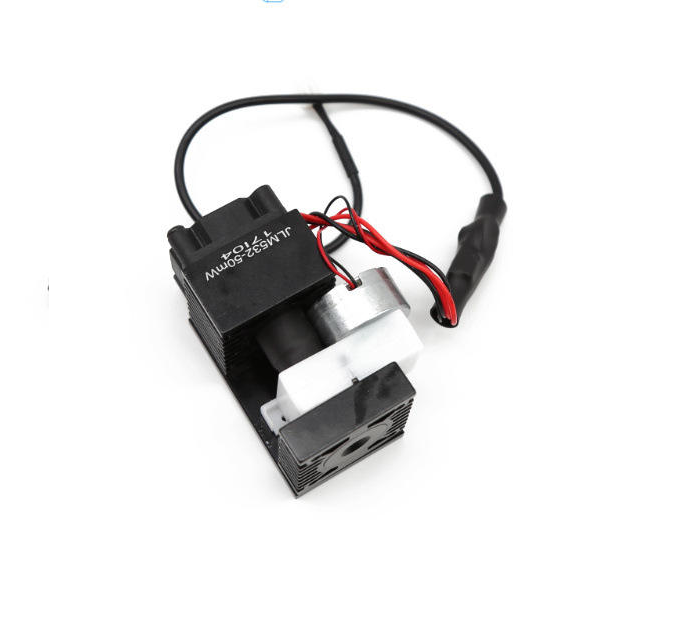

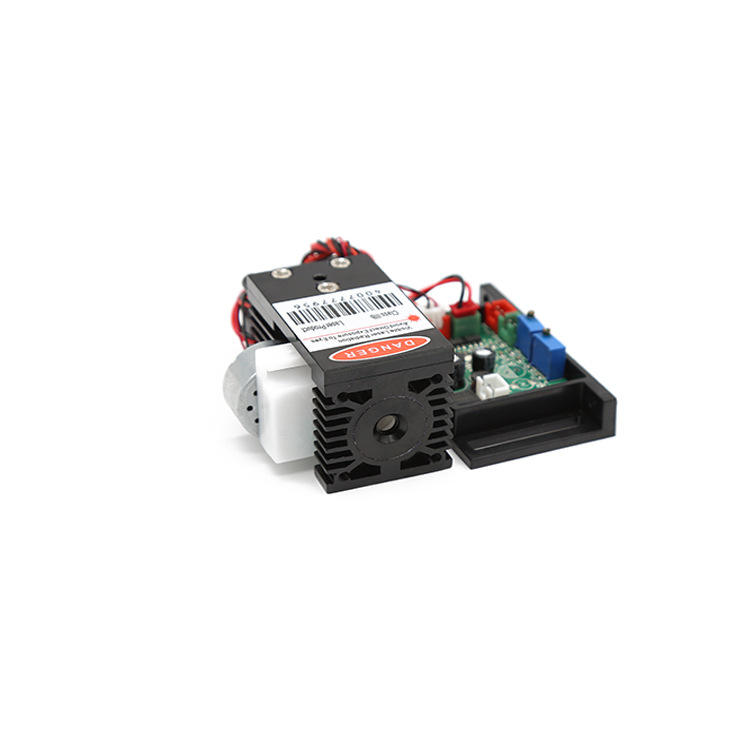

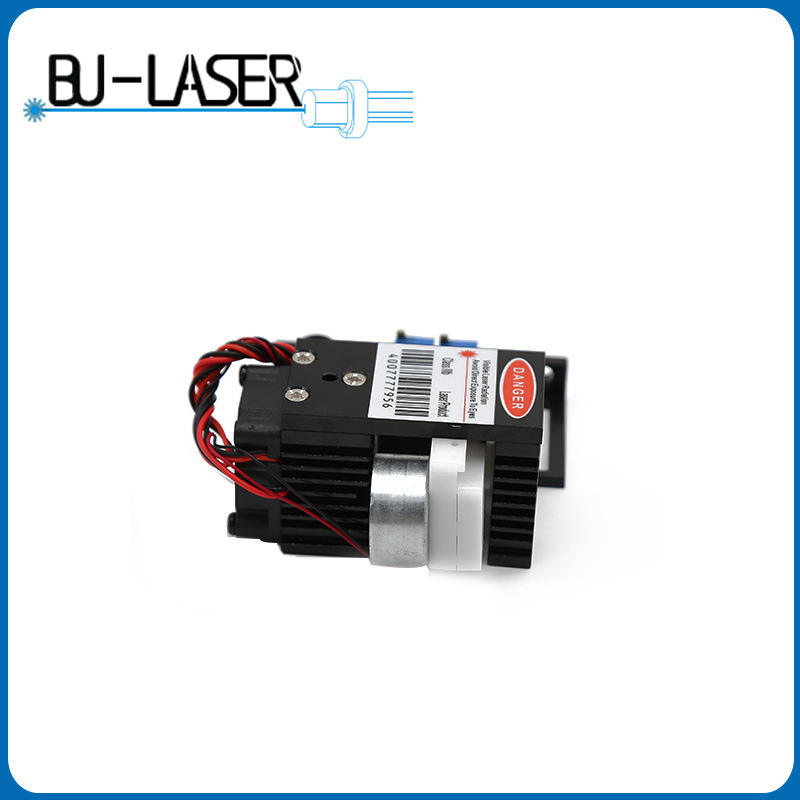

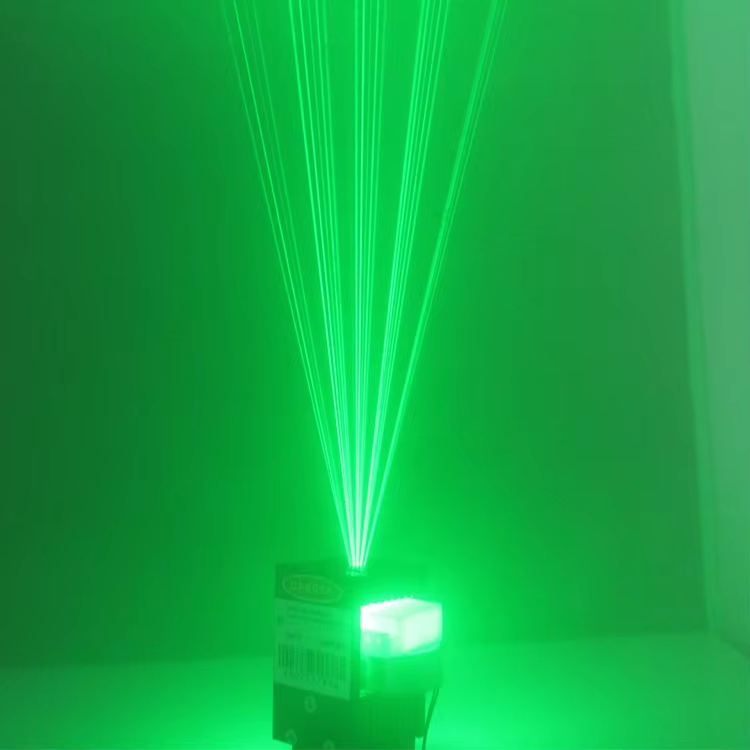

Product Display :




Our Services :

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3A/class3B/class4
