Longer Focal Length High Power 450nm 5W Blue Laser Module for Desktop SLS 3D Printer

Product Type: 450nm 5W Blue Laser Module

Wavelength: 450nm

Output Power: 5W

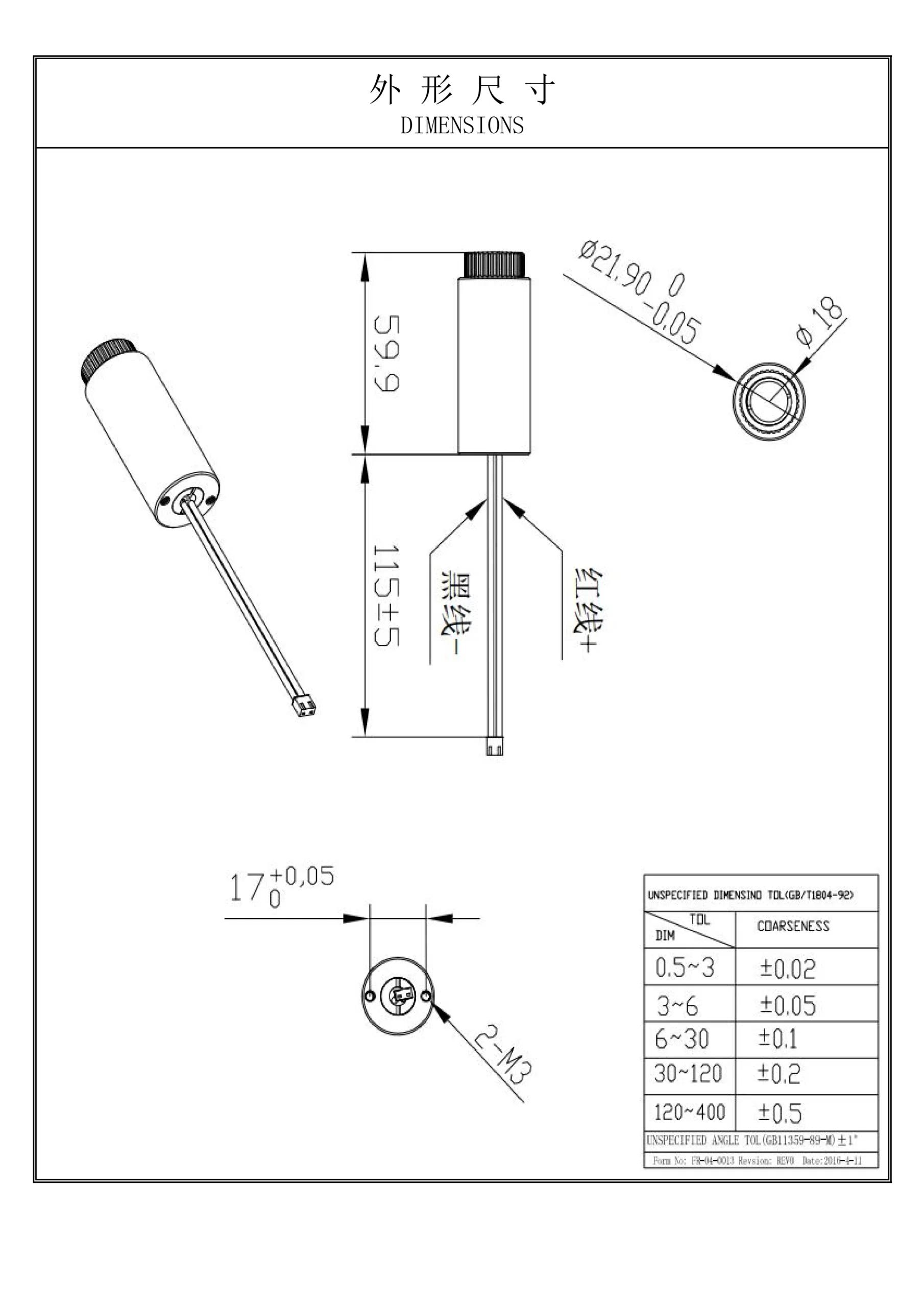

Housing Size: 21.9*65mm (Customizable)

Focus Distance: 170mm

Application: Laser Engraver, SLS 3D Printer, Laser Cutting and so on

Longer Focal Length High Power...

High Power 450nm 5W Blue Laser Module for Desktop SLS 3D Printer

Engineered to empower desktop Selective Laser Sintering (SLS) 3D printers, this high-power 450nm 5W blue laser module combines enhanced focal capabilities with robust power to redefine precision in additive manufacturing. This blue laser module operates at a 450nm blue wavelength with a formidable 5W output power. It delivers intense, controlled energy ideal for sintering a wide range of powdered materials, including polymers, composites, and certain metal powders, enabling the creation of strong, detailed 3D prints.​

A standout feature of that 5W blue laser module is its longer focal length design, which expands the working range and ensures uniform energy distribution across larger build areas. This extended focal capability allows for consistent sintering of thicker layers and complex geometries, reducing the risk of uneven melting while maintaining high precision—critical for producing functional prototypes, custom parts, and intricate structures with smooth surface finishes.​

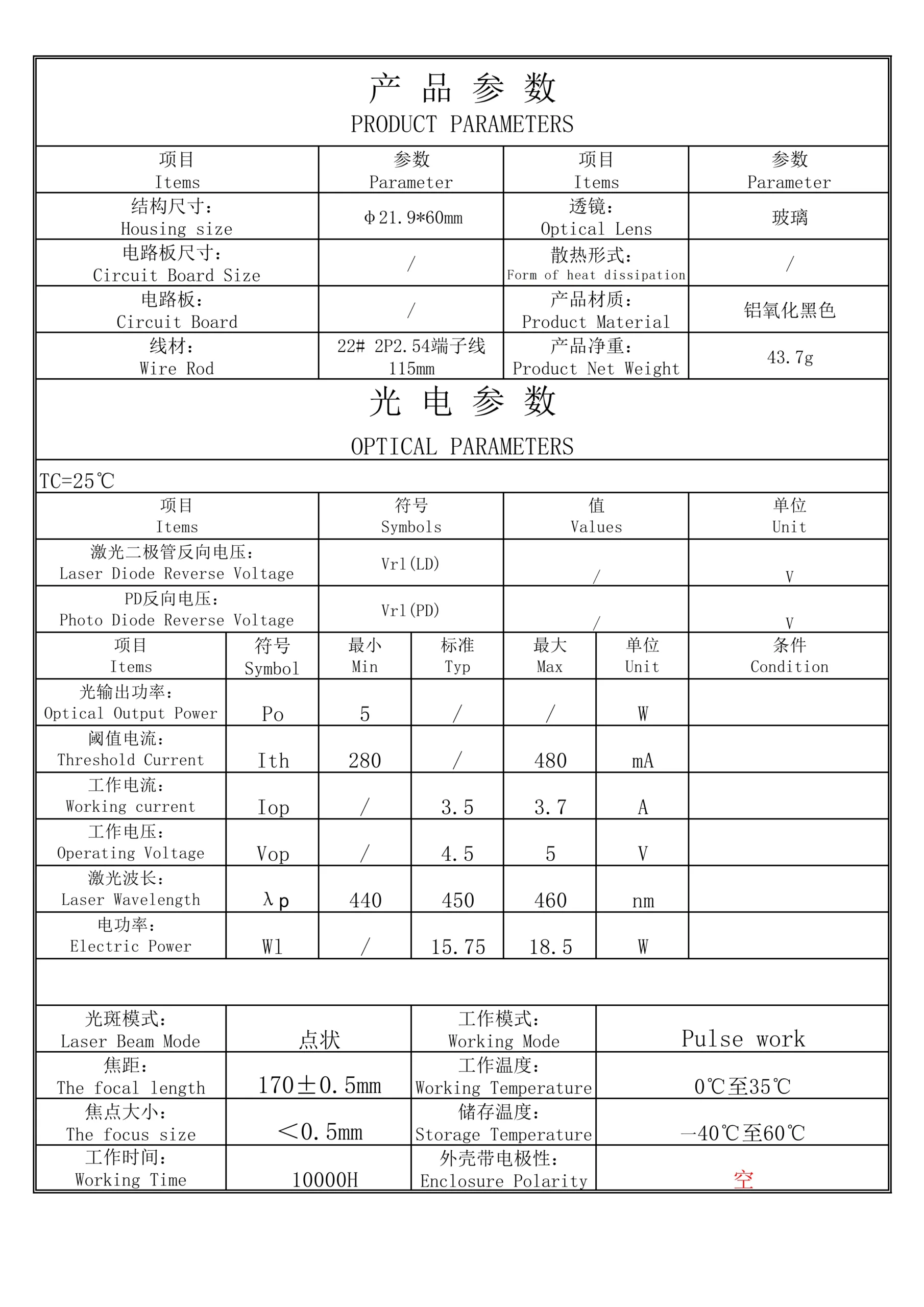

Core Specification:

Wavelength 450nm
Output Power 5W
Working Voltage 12v
Beam Mode Dot beam
The focal length 170mm
Housing Size 21.9x60mm (Customizable)
Optical Lens Glass
Lifespan 10000H

5W Blue Laser Module 5W Blue Laser Module

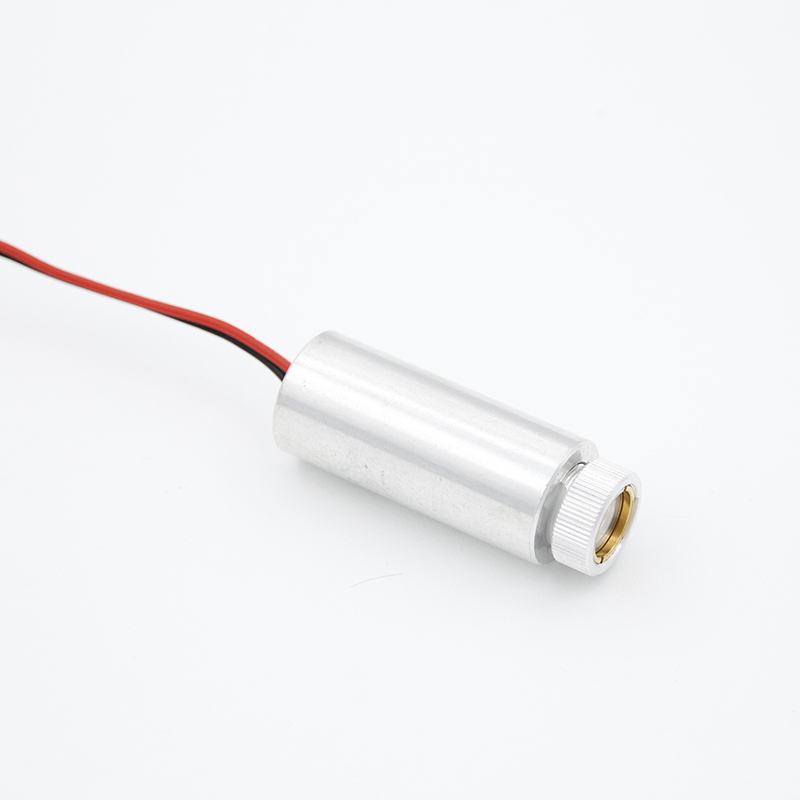

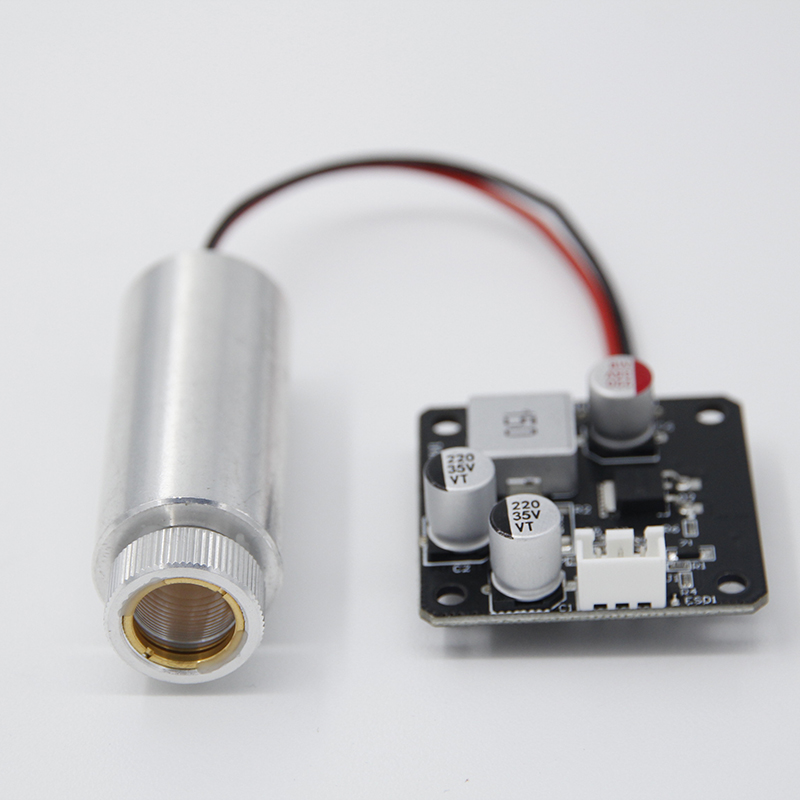

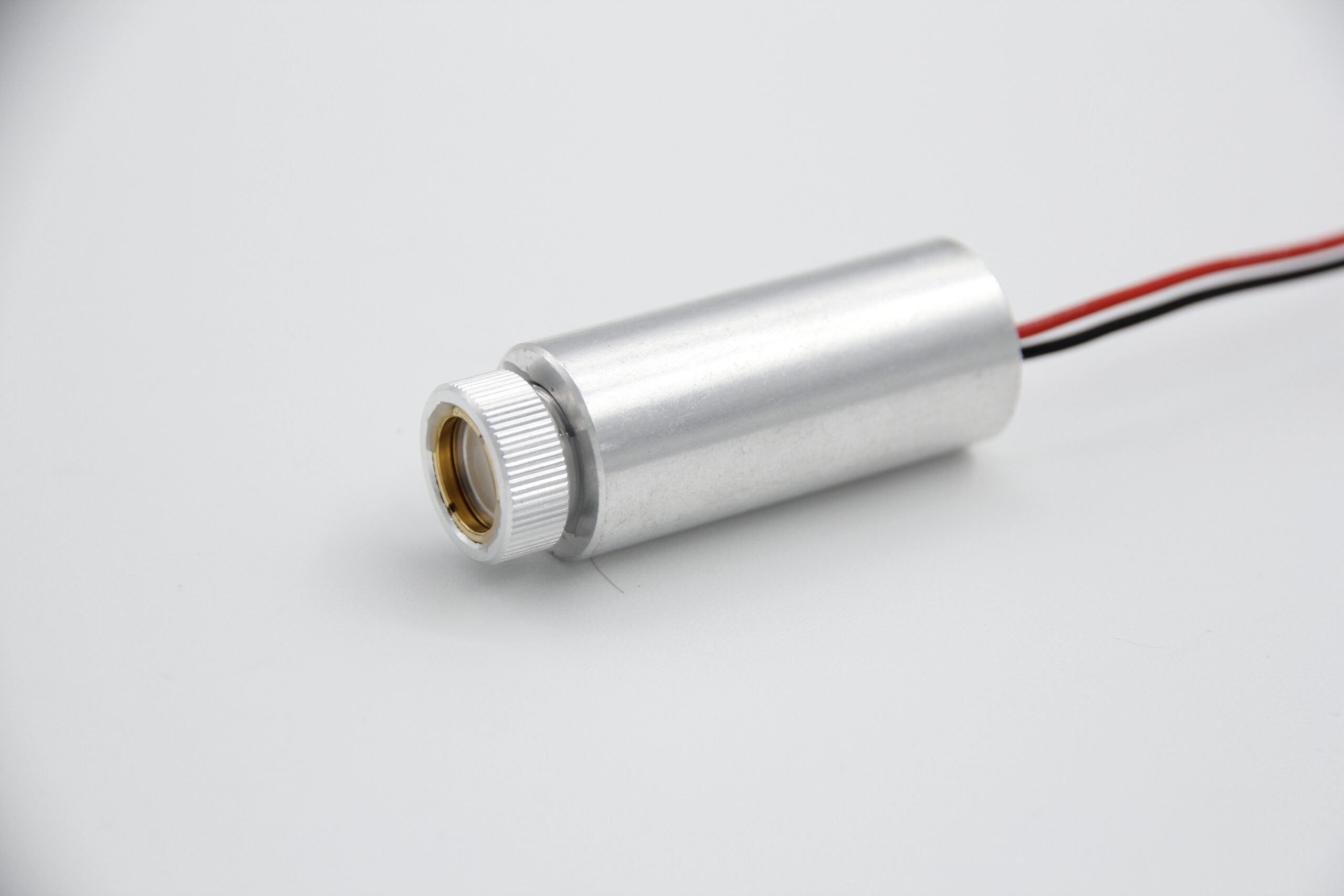

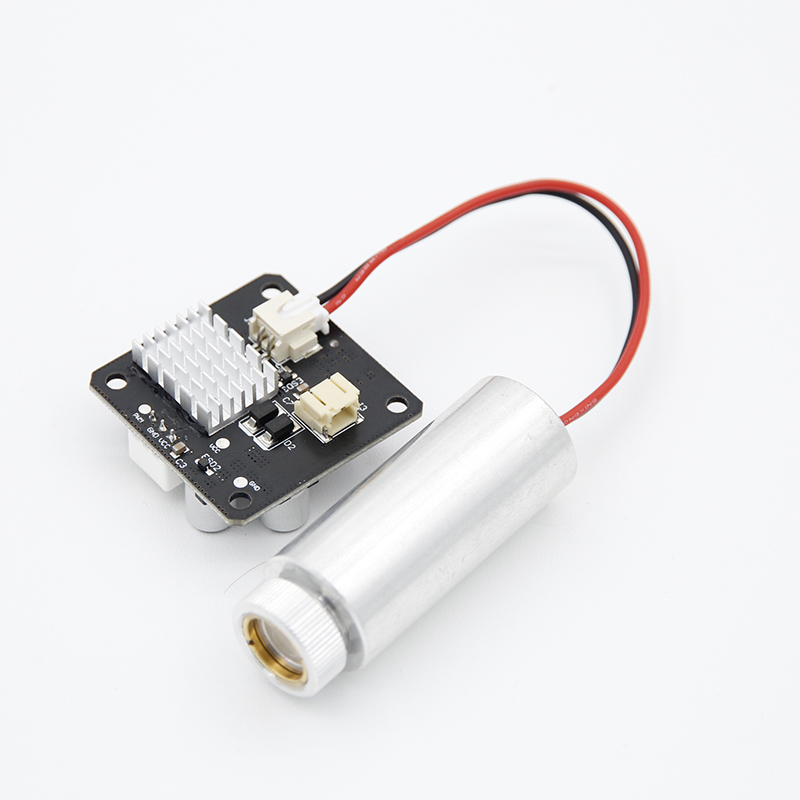

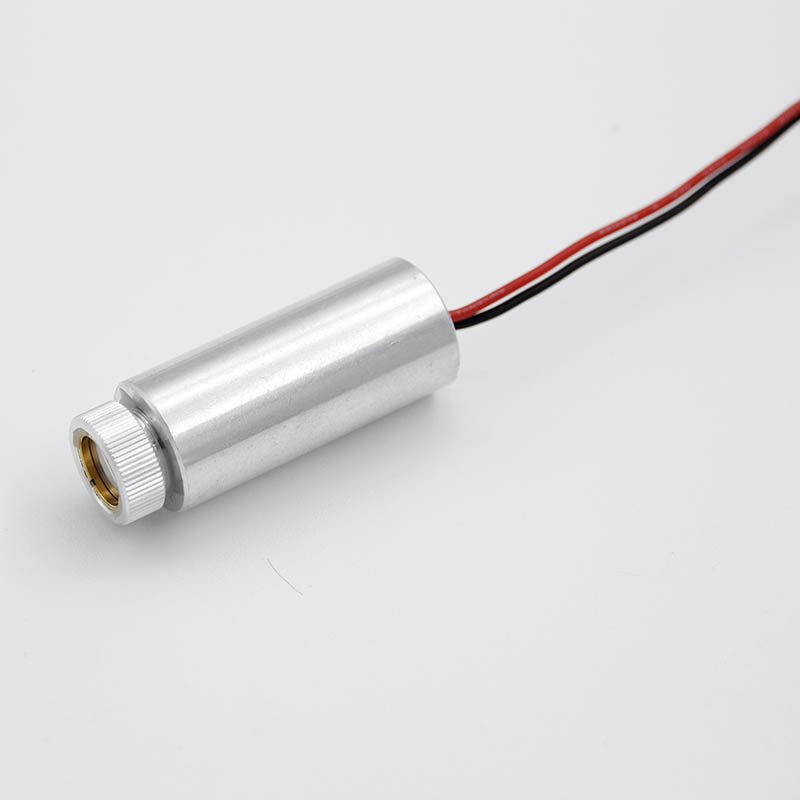

Product Display:

5W Blue Laser Module 5W Blue Laser Module 5W Blue Laser Module


Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode Module Optical Power 20mW-3W 55mW-6W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes odule Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/12V/24V/3oV/11oV/22oV/z4oV etc.
Beam Mode Dot/Line/ Cross/Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180°etc.
Optical Lens Acrvlic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/6*10.5mm/12*15mm/9*21mm/16*66mm/33*33*55mm/ Customizable etc.
CDRH Class class1/class2/class3R/class3B/class4
