Square Structure 405nm 300mW Fiber Coupled Laser Module for UV Exposure
405nm 300mw fiber coupled laser module has high efficiency, ultraviolet fiber laser head, low current and low voltage. The coupling efficiency of fiber-coupled laser module can reach more than 85%, and the fiber core diameter is 105 μm.
The fiber-coupled laser module with 405nm has good performance and uniform light spot. The 105μm multimode core can reduce the beam divergence angle. When combined with fiber coupling output, it allows the laser energy to be more concentrated with low loss during transmission. It usually has a small volume and does not require complex optical path calibration.
Fiber-coupled laser has a wide range of applications, such as PCB plate making, fluorescence excitation, material processing, biochemical research, criminal investigation, UV exposure and so on.

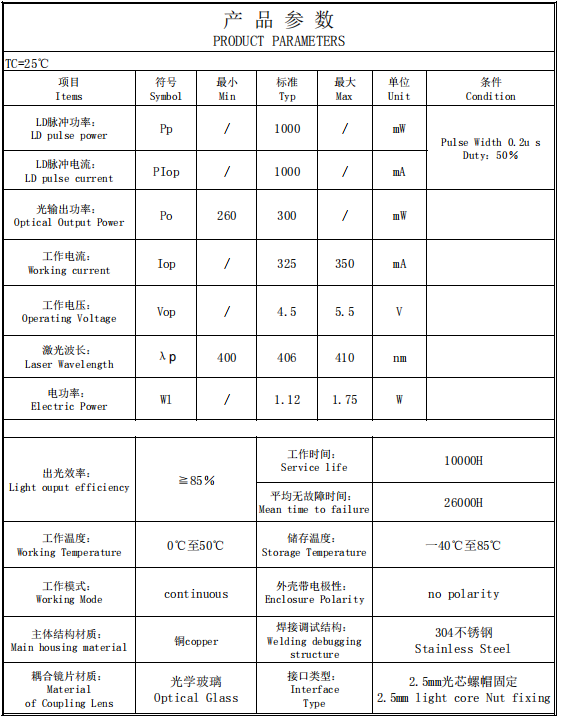

Core Specification :
| Wavelength | 405nm |
| Output Power | 300mW |
| Working Voltage | 4.5V |
| Fiber Core Diameter | 105um (Customizable) |
| Coupling Efficiency | >85% |
| Housing Size | 20*10*10mm (Customizable) |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |

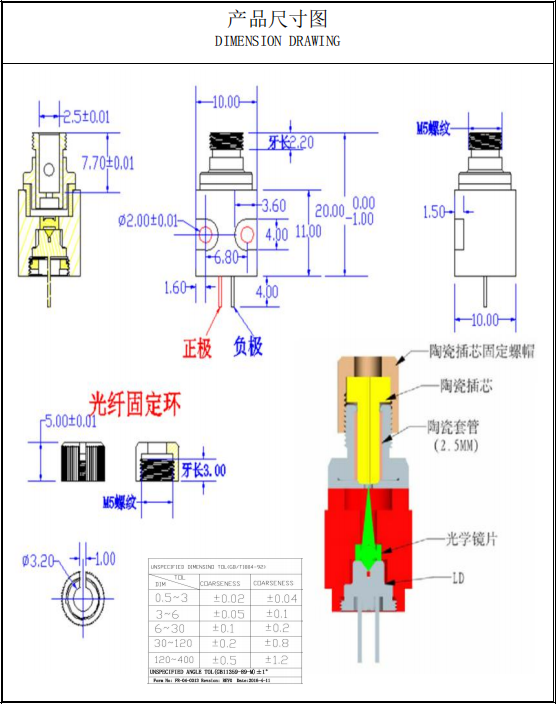

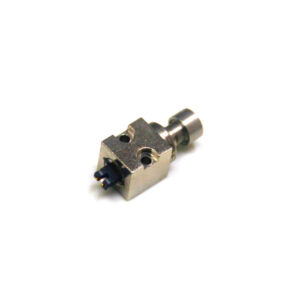

Product Display :
Our Services :
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
