Multi-Line Visual Inspection Laser 450nm 800mW 7 Line Laser Module 3D Scanning
Our 450nm 800mW 7 line blue laser module is designed for high-precision industrial machine vision and 3D scanning.
Core Features
- 7 parallel laser lines, ultra-fine line width: ＜200μm @ 200mm
- Narrow 40–45° divergence angle, superior collimation & beam uniformity
- Crisp, even light lines for high-accuracy imaging, support flexible beam modulation
- Compact dimension 8.5×28.8mm, sturdy housing for easy integration with all vision systems
- Customizable options: 1/5/7/11 lines, adjustable wavelength & power, supported by our 10-year laser solution factory
Application Fields
3D scanning, structured light imaging, surface flaw inspection, precision dimensional measurement, PCB & SMT detection, weld tracking, auto manufacturing, fruit sorting, logistics packaging, lab research and image processing.

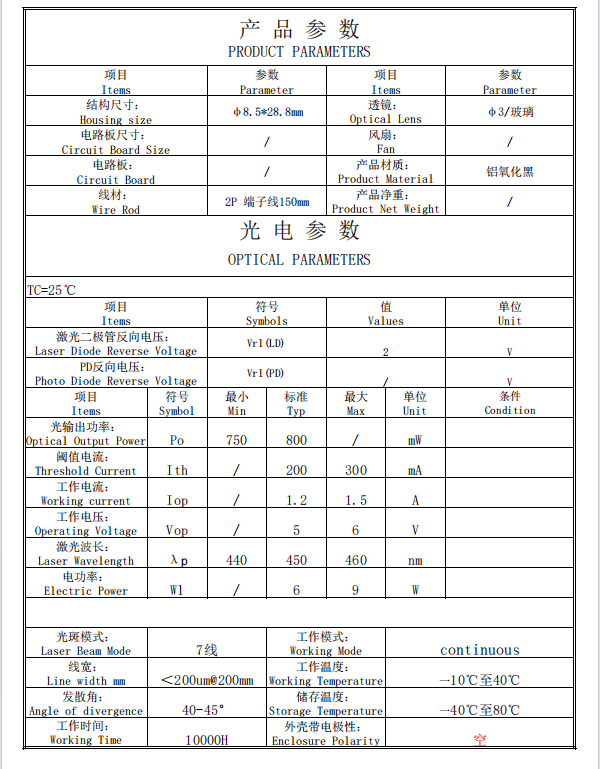

Core Specification:
| Wavelength | 450nm |
| Output Power | 800mW |
| Working Voltage | 5-6V |
| Beam Mode | 7 Line |
| Line Width | <200um@200mm |

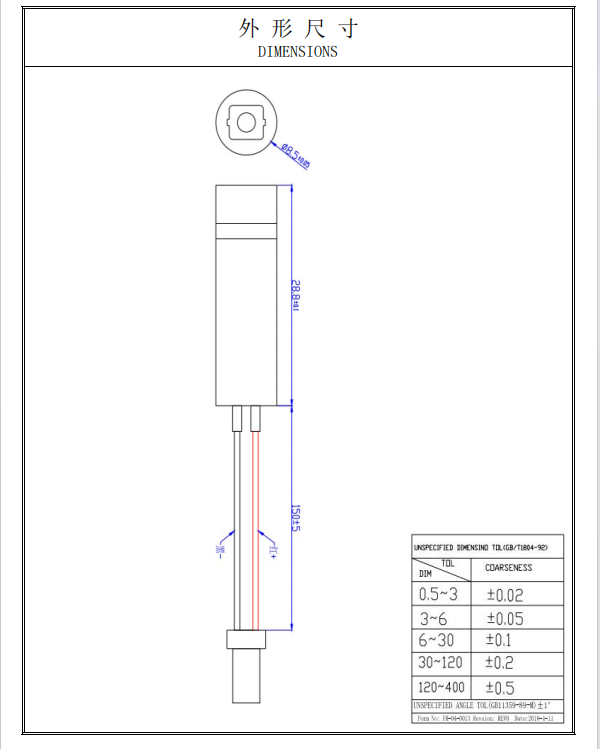

| Housing Size | 8.5*28.8mm (Customizable) |
| Lens | Glass len |
| Lifespan | 10,000 hours |

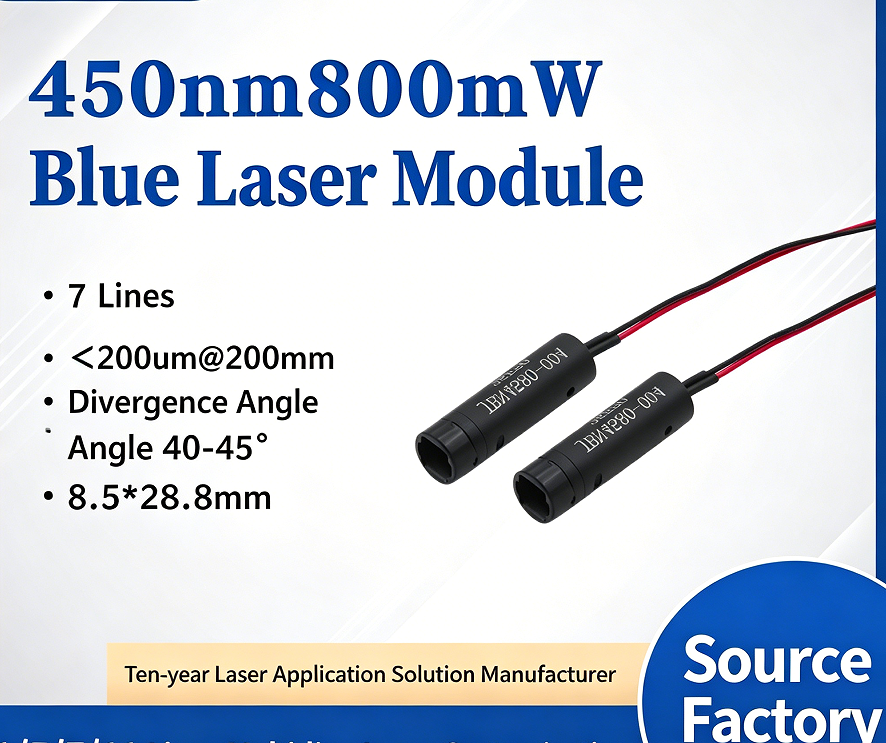

Product Display:
Our Services :
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3A/class3B/class4 | ||||
