380nm 375nm 200mW Fiber Coupled Laser Diode Module for LDI Exposure Machine
Dongguan Blueuniverse Laser Co., Ltd. presents the 375nm 380nm 200mW Fiber Coupled Laser Diode Module—an industrial/professional-grade ultraviolet (UV) laser component integrating 375nm/380nm UV wavelength’s high-energy photon characteristic, 200mW stable output, and precision fiber-coupled transmission. It delivers focused UV laser energy for fine processing, detection, and photochemical applications, ideal for LDI exposure machines, microfabrication, photopolymerization, medical detection, and scientific research.
Core Advantages
– 375nm 380nm UV Wavelength Optimization: High-energy 380nm ultraviolet laser enables precision microfabrication (minimal thermal damage) and efficient photochemical reactions; matches absorption peaks of UV-sensitive materials (photoresists, polymers), suitable for ultraviolet photopolymerization and micro-engraving.
– 200mW Stable Output: CW mode, ensures consistent energy delivery for batch processing; 200mW power balances efficiency and durability, supporting long-term continuous operation (service life >10,000 hours).
– High-Efficiency Fiber Coupling: Equipped with high-purity silica fiber (core diameter 105μm, NA=0.22, coupling efficiency ≥85%), enabling flexible, lossless energy transmission.

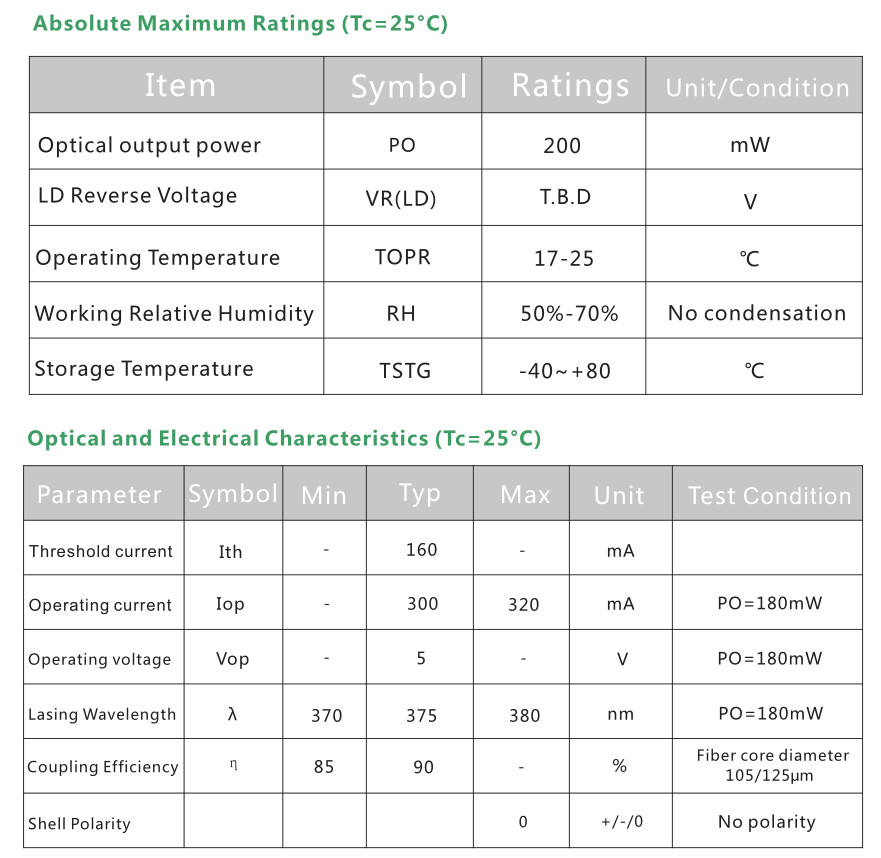

Core Specification :
| Wavelength | 375nm |
| Output Power | 200mW |
| Working Voltage | 5V |
| Fiber Core Diameter | 105um |
| Coupling Efficiency | >85% |

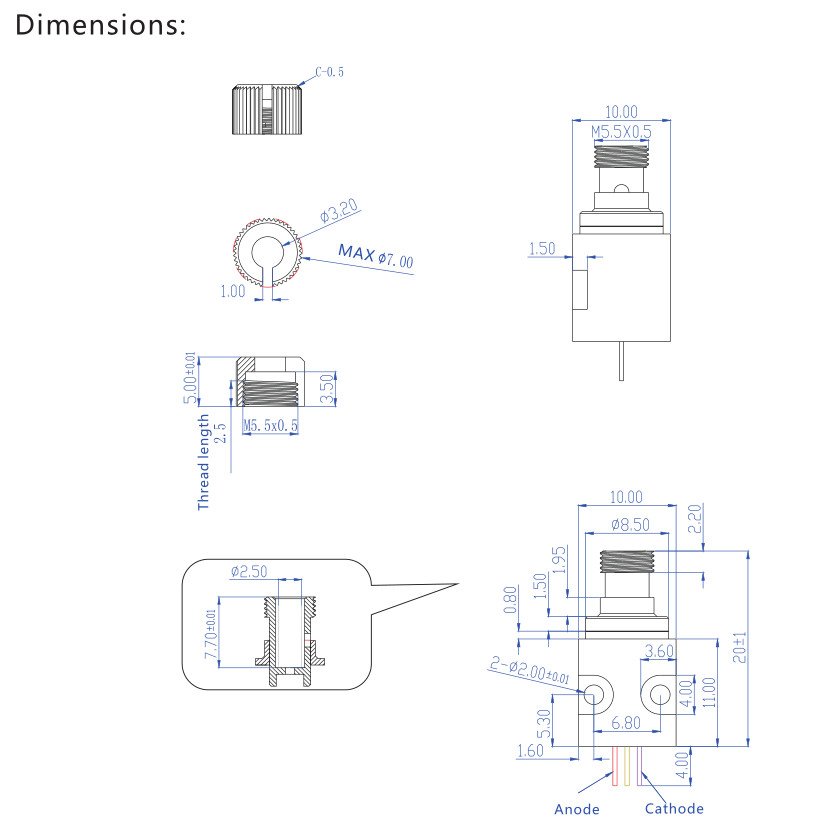

| Housing Size | 20*10*10mm (Customizable) |
| Lifespan | 10,000 hours |

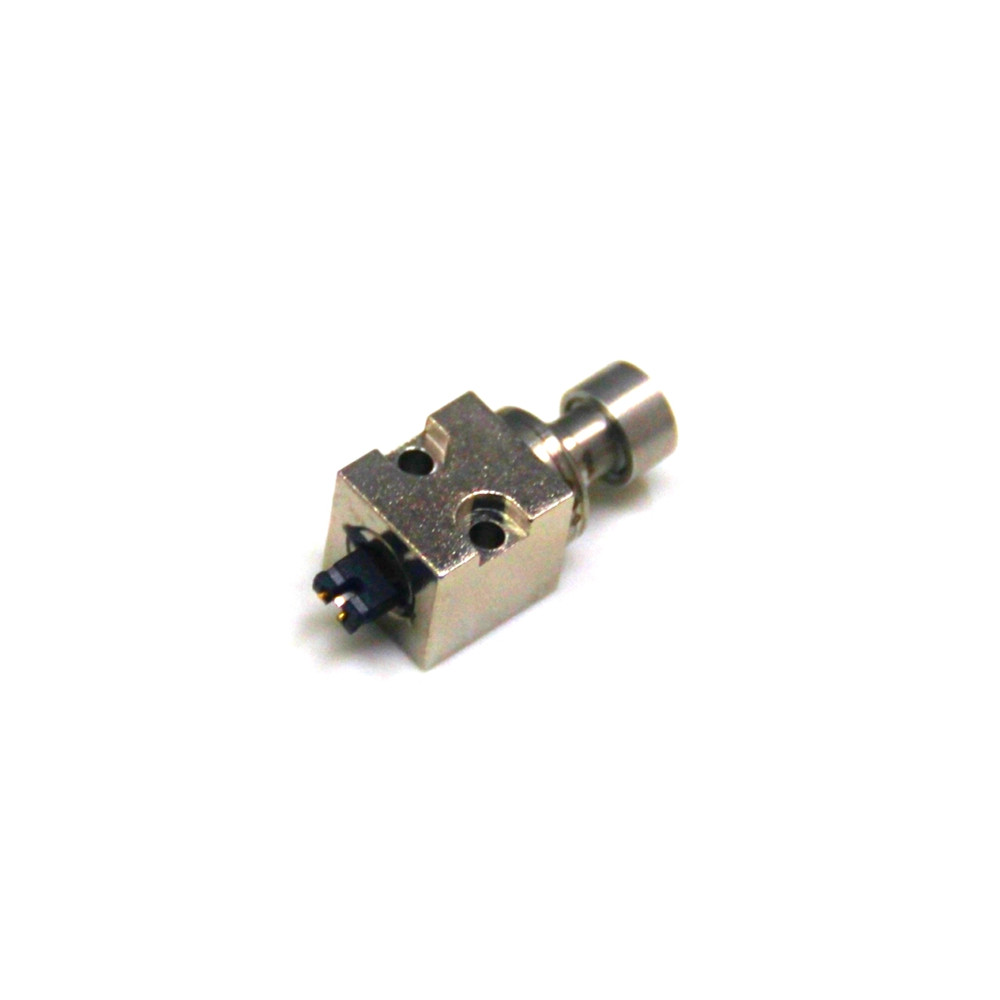

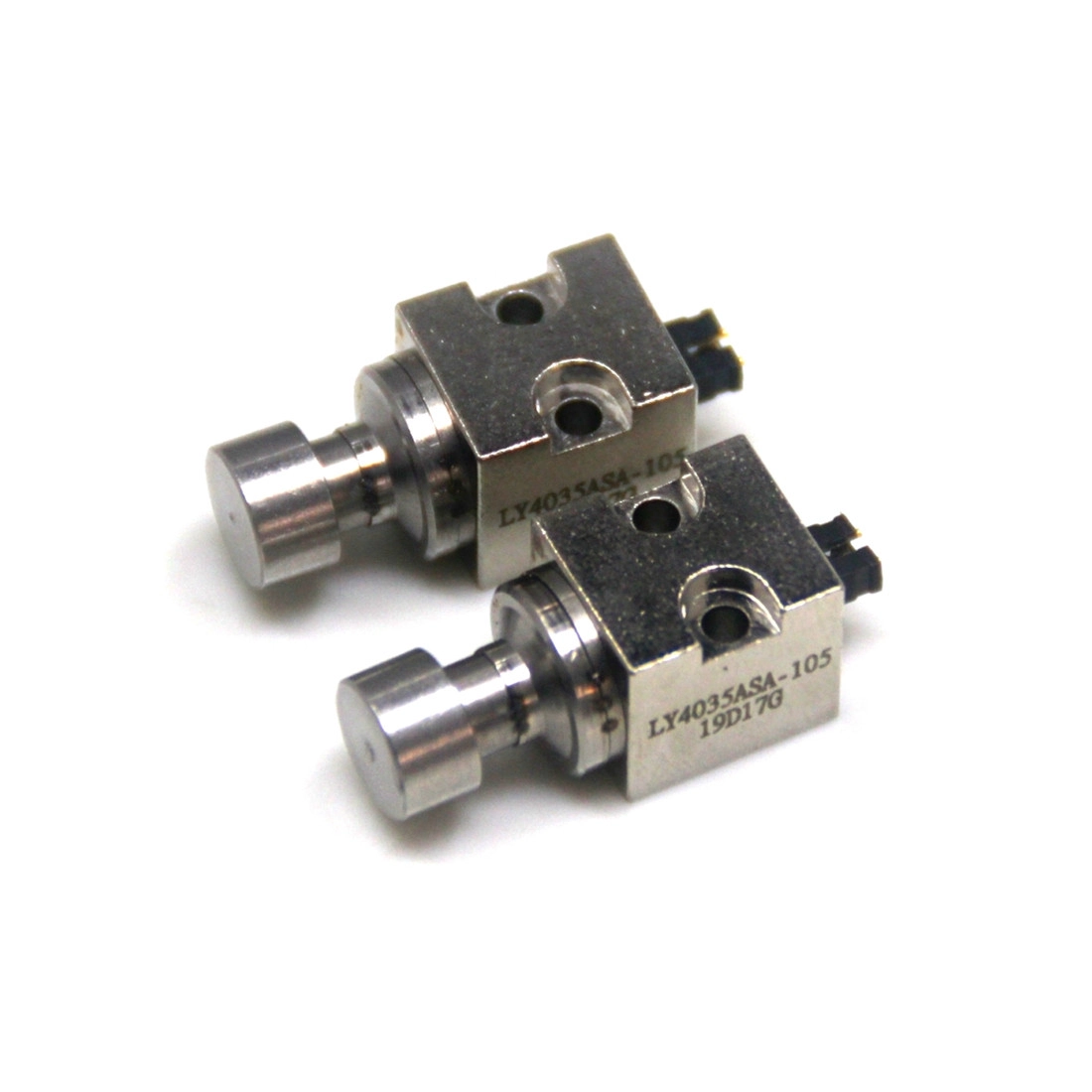

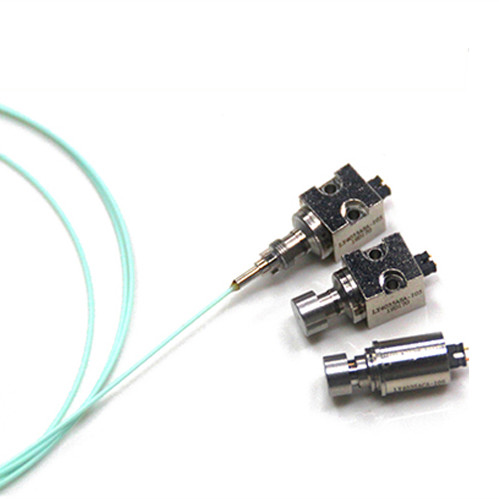

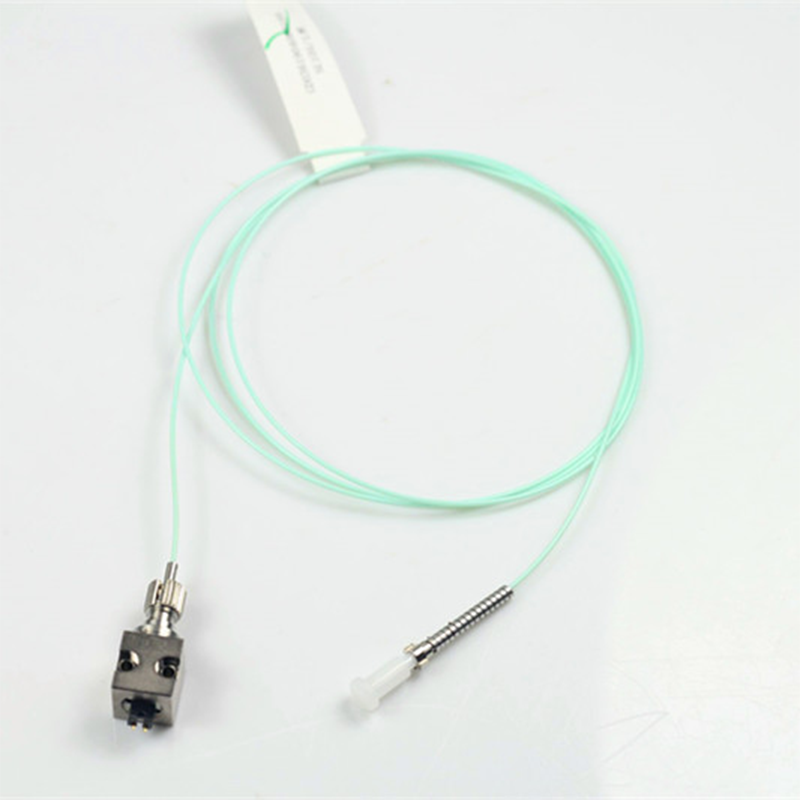

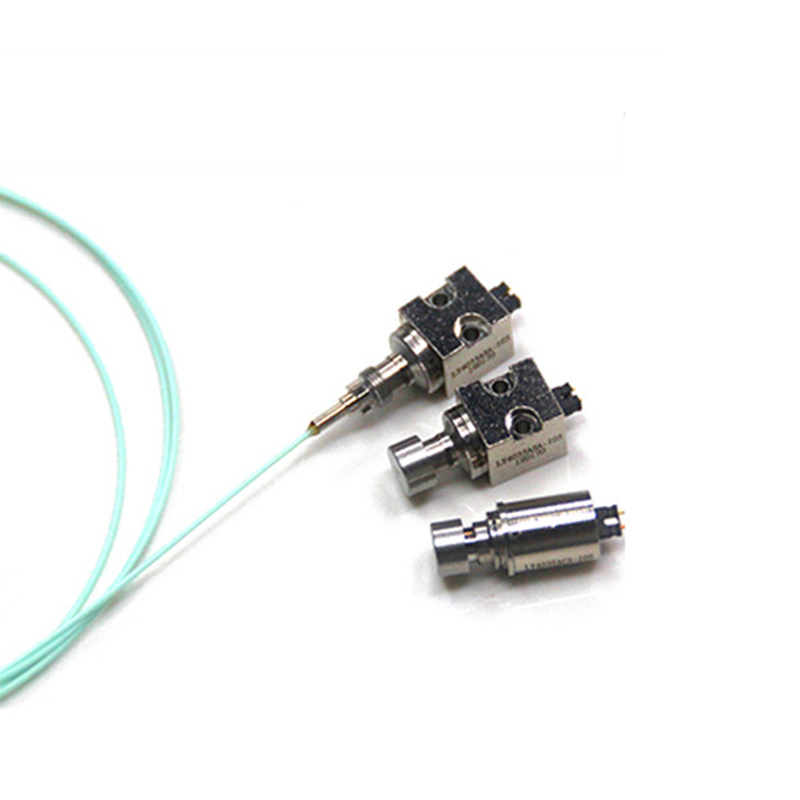

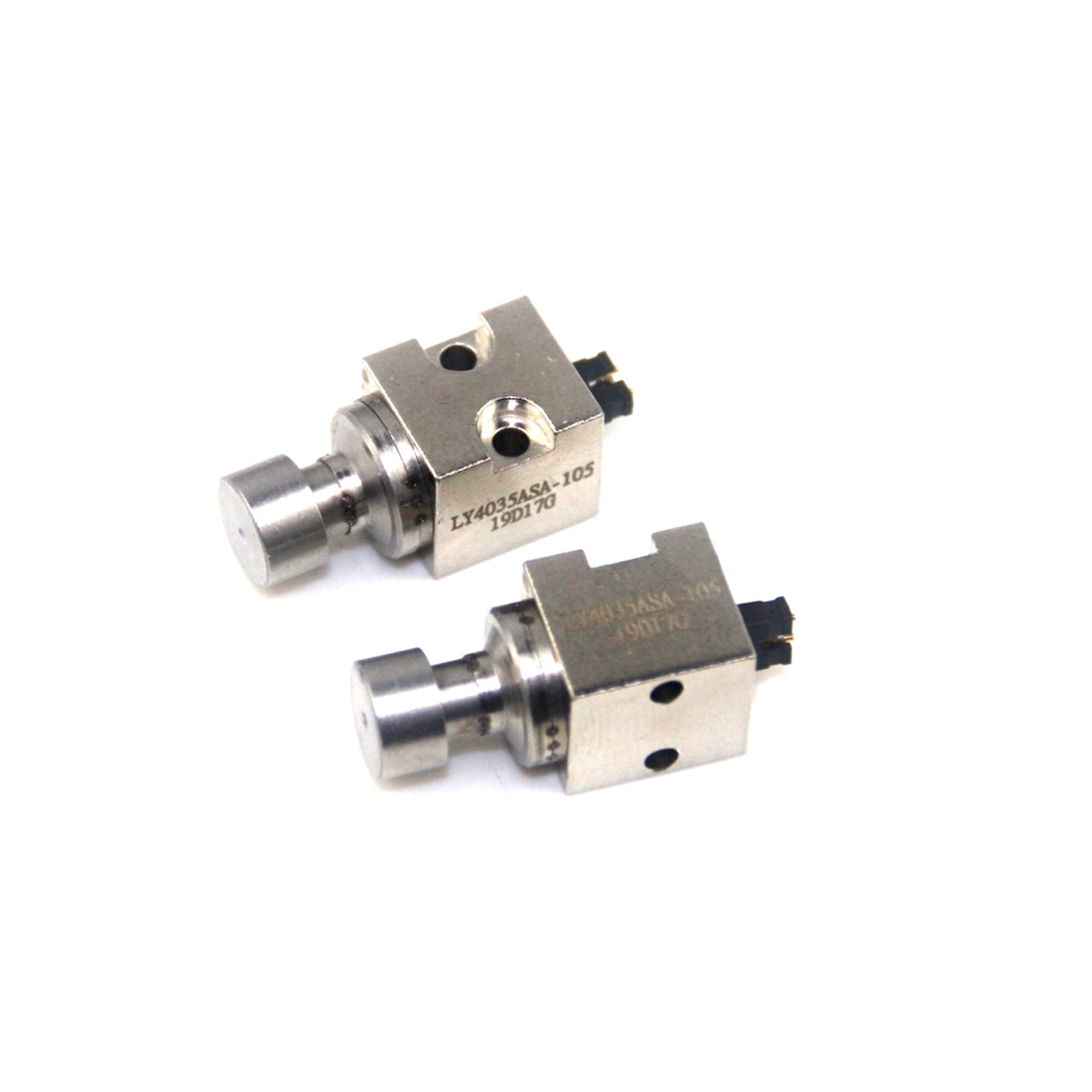

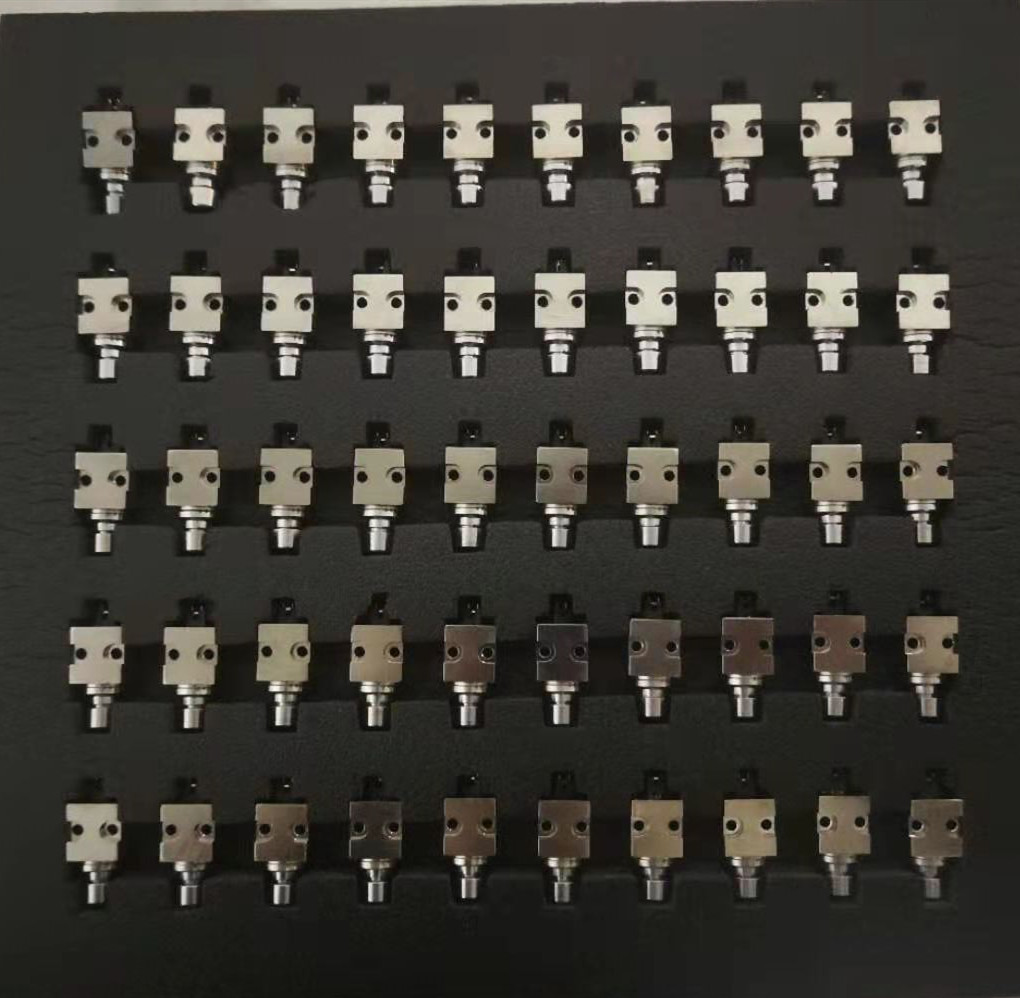

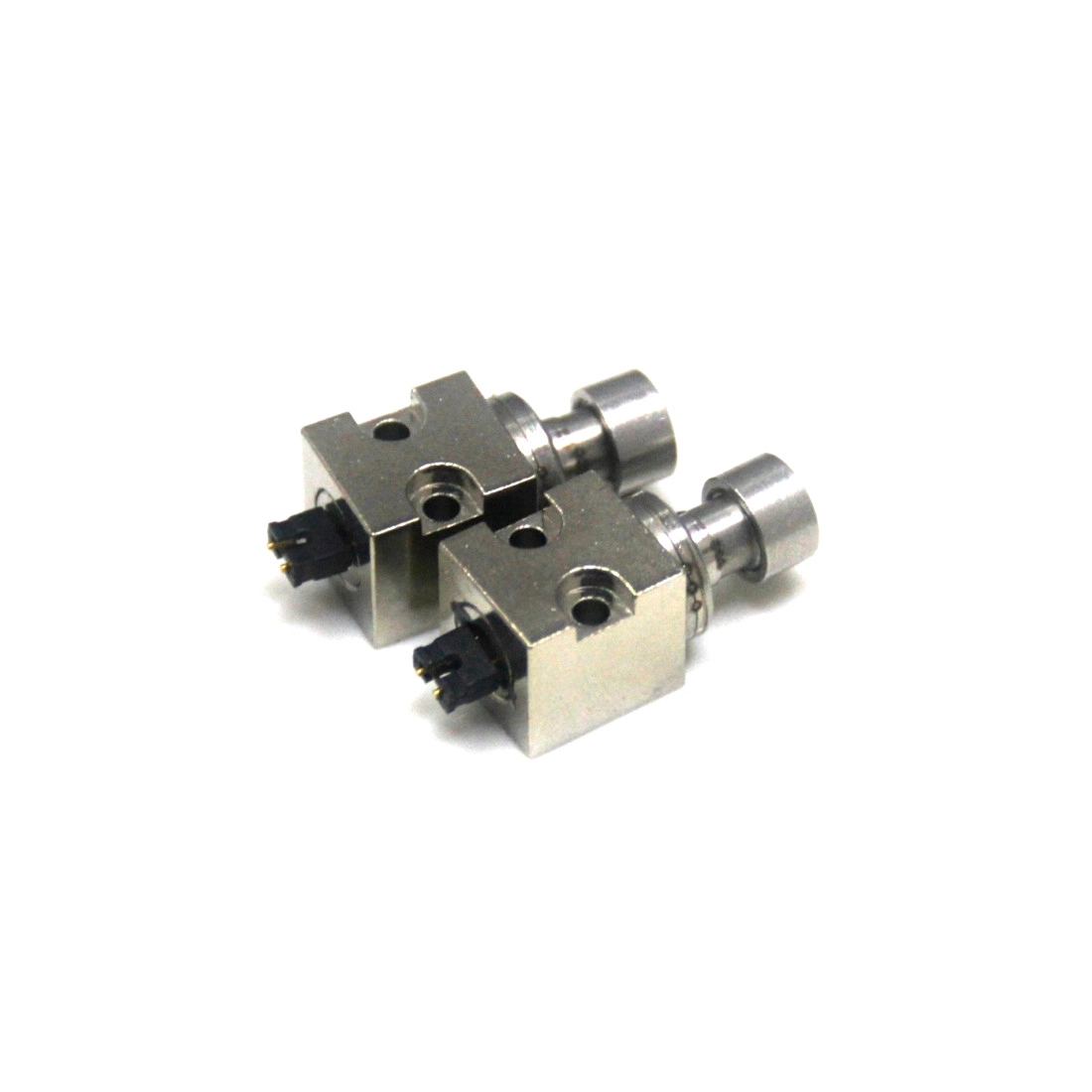

Product Display:
